Part Number # SDN12363116PL
SKU # 2157064
Image Disclaimers Message
SDN12363116PL

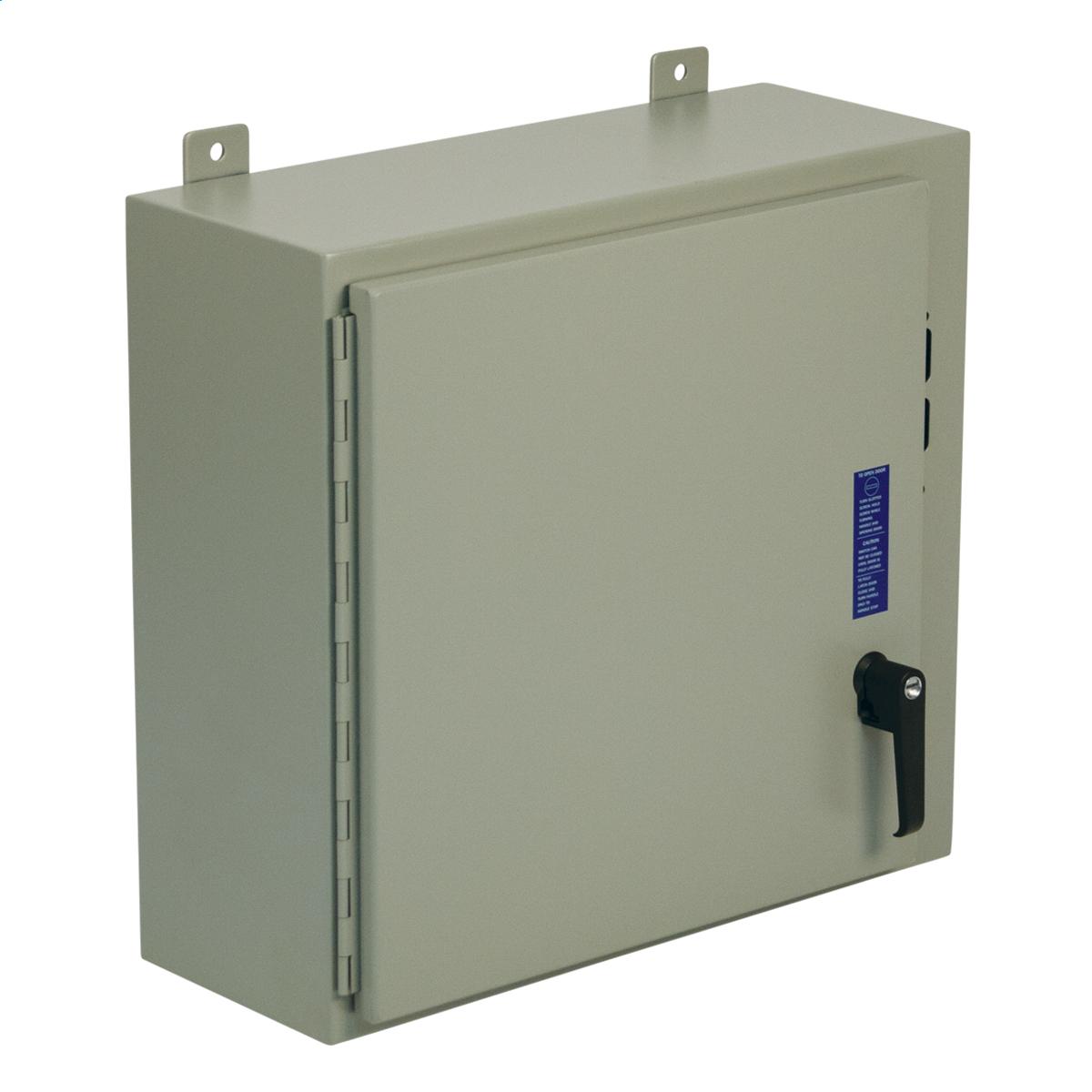

Wiegmann SDN12363116PL Disconnect Enclosure
Part Number # SDN12363116PL
SKU # 2157064
$1845.07 / Each
Typical price:$3744.40 / Each
Wiegmann SDN12363116PL Key Features
| Brand: | Wiegmann |
|---|---|
| Part Number # : | SDN12363116PL |
| SKU #: | 2157064 |
| Capacity: | 18221.738, 18221.738 cu-in |
| Finish: | Textured/Polyester Powder Coated |
| NEMA Rating: | NEMA 12/13 |
| Panel Size: | 21 in W x 33 in H, 33 in H x 27 in W |
| Series: | SDN12PL, SDN12PL Series |
| Type: | 1-Door |
| Color: | Gray |
| Country of origin: | US |
| Depth: | 16.13, 16.13 in |
| Height: | 36, 36 in |
| Material: | Carbon Steel |
| Mounting type: | External Mounting Feet/Flange/Wall |
| Width: | 31.38, 31.38 in |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121324 |
| UPC: | 00786725863037 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1845.07 / Each
Typical price:$3744.40 / Each
Quantity:
Wiegmann SDN12363116PL Disconnect Enclosure
Brand: Wiegmann
Part Number: SDN12363116PL
Wiegmann Disconnect Enclosure, 1-Door, Series: SDN12PL, 31.38 in Width, 16.13 in Depth, 36 in Height, NEMA 12/13, Hinged Cover, 21 in W x 33 in H Panel, Lock: 2-Point Latch, 18221.738 cu-in, External Mounting Feet/Flange/Wall Mount, Carbon Steel, Textured/Polyester Powder Coated, Gray
Additional Description: WGMN-SDN12363116PL N12 1 DR FLG DISCONNECT 36X31X16 CS-GRY X16 W/HANDLE
Catalog Description: N12 Single Door Flanged Disconnect 36X31X16 Carbon Steel - Gray
SDN12363116PL Application
For general purpose use which accept major brand disconnect switches and circuit breakersSDN12363116PL Item Features
- Bodies and doors fabricated from 14 ga steel
- A cover latch bar is also included for door hardware
- Print pocket is provided
- Enclosures under 40 in H require two-point door hardware
- Instructions to locate and install disconnect switches, circuit breakers and operating mechanisms are provided
- Enclosures have padlocking, defeater handle and latching system
- Rolled lip around all sides of enclosure opening excludes liquids and contaminants
- Doors easily removed by pulling continuous hinge pin
- Polyurethane poured in place gasket
- Seams are continuously plasma welded and ground smooth
- Grounding provisions provided
- Holes are provided in body and door for mounting operating handle, operating mechanism and door closing mechanism
- Guide brackets and interlock door catch are welded to the inside of door
SDN12363116PL Standards
CSA File No. LL66078|UL 508A|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov|UL 508 File No. E64791SKU #2157064Part Number #SDN12363116PLUNSPSC39121324UPC00786725863037
