T1010

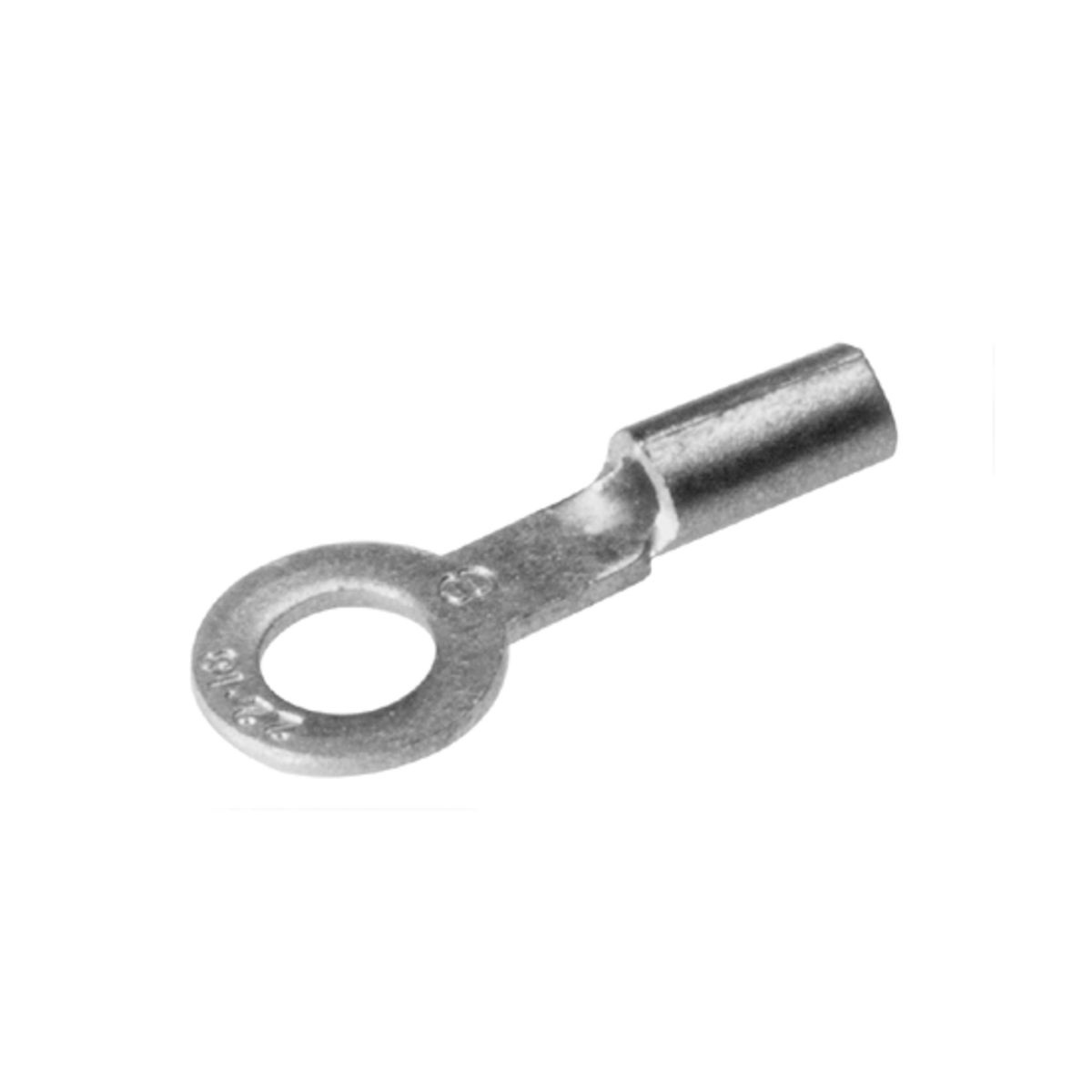

Wiegmann T1010 Ring Tongue Terminal
Part Number # T1010
SKU # 2280491
$483.44 / Each
Typical price:$1001.72 / Each
Wiegmann T1010 Key Features
| Brand: | Wiegmann |
|---|---|
| Part Number # : | T1010 |
| SKU #: | 2280491 |
| Barrel Size: | 0.12 in ID x 0.34 in L |
| Barrel Type: | Long |
| Conductor Size: | 12 to 10 |
| Dimensions: | 0.38 in W x 0.04 in THK |
| Finish: | Electro-Tin Coated, Polyester Powder Coated/Smooth |
| Series: | HYLUG™, T Series |
| Suitable For Use With: | HS and S Series 10 x 10 in Hinged-Cover/Screw-Cover Wireway |
| Type: | Non-Insulated, Type T Standard |
| Color: | Gray |
| Country of origin: | US |
| Length: | 0.83 |
| Material: | Copper, ETP Copper Contact |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39131714 |
| UPC: | 00786725394852 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$483.44 / Each
Typical price:$1001.72 / Each
Quantity:
- Wiegmann HYLUG Wireway Tee, Non-Insulated, Series: T Series, For Use With: HS and S Series 10 x 10 in Hinged-Cover/Screw-Cover Wireway, Carbon Steel, Gray, Polyester Powder Coated/Smooth, 0.38 in W x 0.04 in THK
T1010 Application
For use with 10 x 10 in HS and S Series wirewaysT1010 Item Features
- The Type T non-insulated terminals are constructed of pure electrolytic copper
- Designed with a long brazed seam barrel, standard neck, deep V groove inner serrations and tin electro-plated
- The terminals are ideal for control wiring and other standard duty applications
- The ring tongue provides a secure termination under the screw head that cannot be removed without the complete removal of the screw
- Two or more terminals can easily be stacked on a common stud
- Constructed of pure electrolytic copper provides maximum conductivity
- Low resistance and ductility for excellent crimp forming properties
- Long brazed seam barrel and deep V groove inner serrations, provides optimum conductivity reliability and holding power after crimping
- Tin electro-plated, provides durable long lasting corrosion resistance
- Wire range is clearly marked on terminal, provides easy identification
- Inspection hole, provides an easy visual check of wire insertion
- Long neck terminal, permits easy bending and stacking of several terminals on a common stud
- 12 to 10 AWG solid or stranded conductor
- 0.12 in Dia maximum insulation, 11/32 in length strip
- Brazed seam/long barrel
- 0.34 in L barrel
- 90 deg C temperature
T1010 Standards
UL 467|CSA Certified|PPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.govSKU #2280491Part Number #T1010UNSPSC39131714UPC00786725394852
