Part Number # WA72X7312U
SKU # 2445712
Image Disclaimers Message
Brand: Wiegmann
WA72X7312U

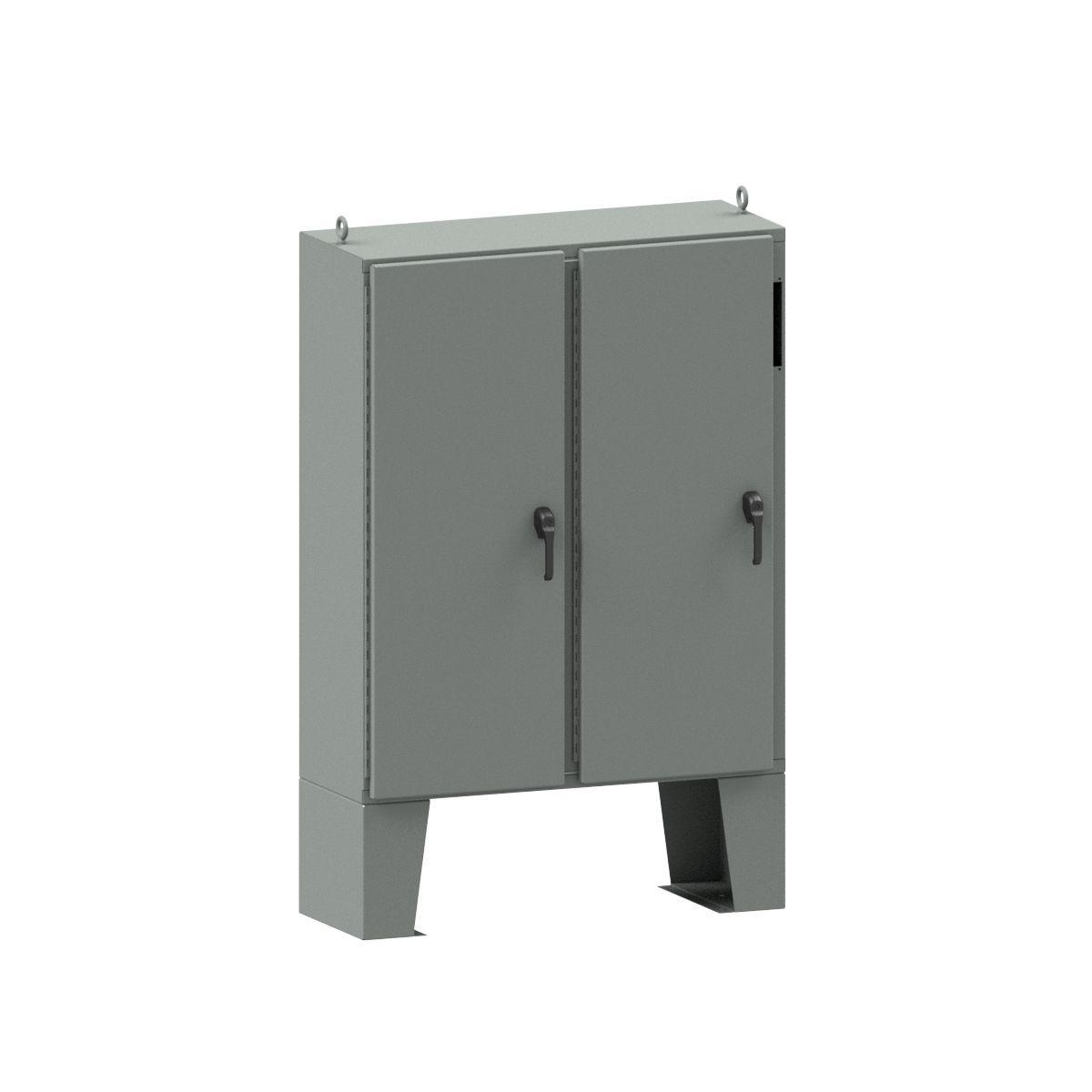

Wiegmann WA72X7312U
Part Number # WA72X7312U
SKU # 2445712
$8053.68 / Each
Typical price:$16344.24 / Each
Wiegmann WA72X7312U Key Features
| Brand: | Wiegmann |
|---|---|
| Part Number # : | WA72X7312U |
| SKU #: | 2445712 |
| Capacity: | 64526.596 cu-in |
| Finish: | Textured/Polyester Powder Coated |
| NEMA Rating: | NEMA 12 |
| Panel Size: | 68 in W x 68 in H |
| Series: | WAX-U |
| Type: | 2-Door |
| Color: | Gray |
| Country of origin: | US |
| Depth: | 12.13 in |
| Height: | 72 in |
| Material: | Carbon Steel |
| Mounting type: | Floor/Right Flange |
| Width: | 73-3/4 in |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121324 |
| UPC: | 00786725428656 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8053.68 / Each
Typical price:$16344.24 / Each
Quantity:
- Wiegmann, WA72X7312U, Disconnect Enclosure, 2-Door, Series: WAX-U, 73-3/4 in Width, 12.13 in Depth, 72 in Height, NEMA 12 NEMA Rating, Continuous Hinged Cover, 68 in W x 68 in H Panel, Lock: 3-Point Latch/Padlock Handle, 64526.596 cu-in Capacity, Floor/Right Flange Mounting, Carbon Steel, Textured/Polyester Powder Coated, Gray
WA72X7312U Application
For use in large freestand and floorstand enclosuresWA72X7312U Item Features
- Bodies and doors fabricated from 10 ga steel
- Panel supports
- Unless specified, the right door is considered to be the Master door on the Right Flange mount enclosures
- A mechanical interlock is provided and prevents the slave door from opening before opening the master door
- Disconnects come with a universal cutout which provides mounting for most disconnect operators by using operator adapters
- Removable center post permits easy panel installation
- FTC rolled lip around all sides of enclosure opening excludes liquids and contaminants
- Seams are continuously welded and ground smooth
- Body stiffeners provided for extra rigidity
- Heavy gauge continuous hinges are provided to secure door
- Heavy duty three-point padlocking handles on all doors
- Doors are sealed with polyurethane poured in place gasket
- Heavy duty lifting eyes and provisions for fluorescent lighting are provided
- Punching in right flange (WAXU) or center post (WACPXU) to house the following disconnect operating handles with appropriate adaptor plate, Allen-Bradley Bulletin 1494V, ABB, Cutler-Hammer/Westinghouse type C361 and Type C371, General Electric Type STDA and Spectra Flex, I-T-E Max-Flex, and Square D Class Class9422 variable depth and cable mechanisms
WA72X7312U Standards
CSA File No. LL66078|UL File No. E64791|UL 508A|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govSKU #2445712Part Number #WA72X7312UUNSPSC39121324UPC00786725428656
