Part Number # 1300070080
SKU # 2445163
Image Disclaimers Message
1300070080
Woodhead 207000A01F200
Part Number # 1300070080
SKU # 2445163
$1689.60 / 12Each
Molex 1300070080 Key Features
| Brand: | Molex |
|---|---|
| Part Number # : | 1300070080 |
| SKU #: | 2445163 |
| Amperage Rating: | 8 A |
| Cable Material: | PVC |
| Connector Size: | 1-16 UN |
| Connector Type: | Straight Female x Pigtail |
| Keyway: | Single |
| NEMA Rating: | NEMA IP67 |
| Number of Poles: | 7 |
| Series: | 130007 |
| Type: | Single End |
| Wire Pin Colors: | Black/Blue/Green/Orange/Red/White/Yellow |
| Cable length: | 20 ft |
| Cable type: | STOOW |
| Country of origin: | US |
| Manufacturer Name: | Molex |
| UNSPSC: | 39121413 |
| UPC: | 00786788439996 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1689.60 / 12Each
Quantity:

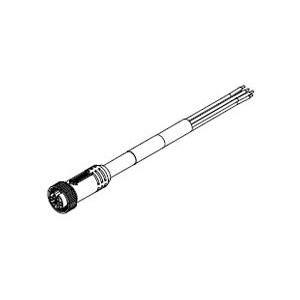

- Woodhead Mini-Change Cordset, Single End, Series: 130007, Straight Female x Pigtail Connector, 1-16 UN Connector, PVC, STOOW Cable, 20 ft Cable Length, PVC Cable, 7 Poles, Single Keyway, 600 V AC, 8 A, Black/Blue/Green/Orange/Red/White/Yellow Wire Pin Colors, NEMA IP67
1300070080 Item Features
- 16 AWG yellow cable
- 0.54 in cable diameter
- Threaded coupling style
- Brass contact
- No LED indicator
- Black epoxy coated zinc coupling nut
- Gold plated mating
- -20 to 105 deg C temperature rating
1300070080 Standards
CSA Certified|RoHS Compliant|UL E152210SKU #2445163Part Number #1300070080UNSPSC39121413UPC00786788439996
