Part Number # PH250AR
SKU # 2270909
PH250AR
HAMMOND POWER SOLUTIONS INC PH250AR
Part Number # PH250AR
SKU # 2270909
HAMMOND POWER SOLUTIONS INC PH250AR Key Features
| Brand: | HAMMOND POWER SOLUTIONS INC |
|---|---|
| Part Number # : | PH250AR |
| SKU #: | 2270909 |
| UNSPSC: | 39121026 |
| UPC: | 00803423019020 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
HAMMOND POWER SOLUTIONS INC PH250AR
Brand: HAMMOND POWER SOLUTIONS INC
Part Number: PH250AR
HPS Imperator Control Transformer, Industrial Molded Open Style, 600 VAC Primary, 12/24 VAC Secondary, 250 VA Power, 60 Hz Frequency, 1 ph, 20.8/10.4 A Maximum, Screw Connection, Panel Mounting, 130 deg C Insulation, 30 deg C, 4 in L x 5.44 in W x 3.81 in H Dimensions
Additional Description: HPS -PH250AR (O) CNTL 250VA 600-12/24
Catalog Description: Machine Tool Rated Molded Industrial Control Transformer, 600 PV, 12x24 SV, 250VA
PH250AR Specifications
- Constructed with high quality silicon steel laminations that provide optimum performance and reliability
- 600, 575, 550 V primary volt
- 12 x 24, 11.5 x 23, 11 x 22 V secondary volt
- Encapsulated copper wound coils encased in a custom injection molded cover
- Secondary fuse clips, fuse clip mounting screws and primary and secondary voltage links/jumpers supplied with transformers
- 40 deg C maximum
- Encapsulated coils encased in a custom injection molded cover, protect coils and terminations from moisture, dirt and other industrial airborne contaminants
- Mounting feet made of heavy steel and welded or bolted to the core, these mounting feet provide superior strength in a compact design
- Combination slot/Philips #6 screw, complete with SEMS washer termination
- Optional finger safe terminal covers available on all units
- Terminal connection numbers molded into terminal block and correspond to nameplate and wiring diagrams, make connecting the HPS Imperator quick and simple
- SEMS washer allows for easy connection of supply or load wires with or without terminal connectors
- Innovative terminal block design provides for easy hook-up and installation of fuse clip
- Custom injection molded coil cover with its unique "fin shaped" design combine superior cooling properties with a clean, bold look
SKU #2270909Part Number #PH250ARUNSPSC39121026UPC00803423019020

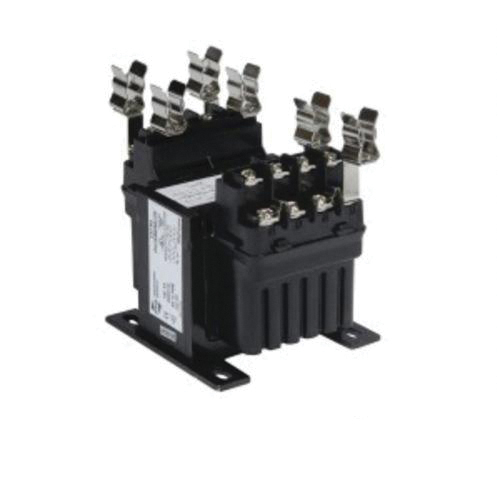

Image provided may only be a representation of final product and may include optional equipment
