Part Number # H11531/2
SKU # 2286908
H11531/2
Thomas & Betts H11531/2
Part Number # H11531/2
SKU # 2286908
$734.59 / 25Each
Thomas & Betts H11531/2 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | H11531/2 |
| SKU #: | 2286908 |
| Dimensions: | 6-3/16 in L |
| Finish: | GoldGalv, GoldGalv® |
| Load Capacity: | 4000, 4000 lb |
| Series: | H115 |
| Specifications: | 2 in L Thread |
| Suitable For Use With: | 3-1/2 in Pipe/Rigid Conduit |
| Temperature Rating (Degrees F): | 650 deg F |
| Thread Size: | 3/8 in |
| Trade Size: | 3-1/2 in |
| Type: | Standard |
| Material: | Steel |
| Manufacturer Name: | ABB |
| UNSPSC: | 31161616 |
| UPC: | 00616013304907 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$734.59 / 25Each
Quantity:
Thomas & Betts H11531/2
Brand: Thomas & Betts
Part Number: H11531/2
Additional Description: TB -H11531/2 (N) U BOLT 3-1/2IN THD LEN 2IN STL NON-CANCELABLE, NON-RETURNABLE

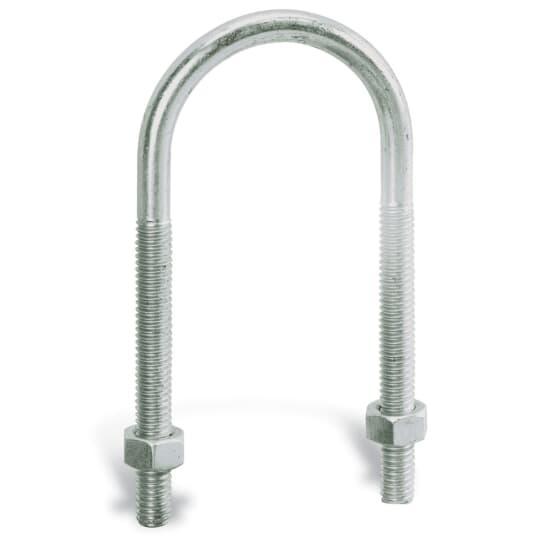

Catalog Description: Bolt, U, Size 3-1/2 Inches, Length of Thread 2 Inches, Steel
H11531/2 Application
To support anchor or guide pipe linesH11531/2 Includes
(4) Hex NutsH11531/2 Item Features
- Side loads are given for the H-115 for a maximum temperature of 650 deg F/343 deg C
- When the loading condition requires the simultaneous application of a normal load and side load, the following interaction equation must be used to determine if the H-115 can be used
- (Actual load/maximum design load) + (actual side load/maximum side load), the result of this equation cannot exceed the value of 1 if the H-115 is to be used
H11531/2 Standards
BAA Compliant|Federal WW-H-171E|MSS SP-69 Type 24H11531/2 Warranty
2 years LimitedSKU #2286908Part Number #H11531/2UNSPSC31161616UPC00616013304907
Image provided may only be a representation of final product and may include optional equipment
