BSH0552P02A1A
Schneider Electric BSH0552P02A1A
Part Number # BSH0552P02A1A
SKU # 2292920
$1452.74 / Each
Typical price:$1609.18 / Each
Schneider Electric BSH0552P02A1A Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | BSH0552P02A1A |
| SKU #: | 2292920 |
| Amperage Rating: | 4.8 to 5.9 A |
| Dimensions: | 6.08 in L |
| Enclosure Type: | IP50/IP54/IP65 |
| Series: | BSH |
| Shaft Size: | 0.35 in Dia x 0.79 in L |
| Special Features: | Brushless Motors |
| Speed: | 4000 rpm |
| Temperature Rating (Degrees F): | -4 to 104 deg F |
| Torque Rating: | 5.75 to 23.9 in-lbf |
| Type: | 3-Phase Multiturn Smooth Shaft End Untapped Natural Convection |
| Country of origin: | DE |
| Insulation class: | Class F |
| Mounting type: | Flange |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 26101205 |
| UPC: | 03389118158719 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1452.74 / Each
Typical price:$1609.18 / Each
Quantity:
- Schneider Electric Square D Lexium 32 Servo Motor, 3-Phase Multiturn Smooth Shaft End Untapped Natural Convection, Series: BSH, Brushless Motors Special Features, 480 V, 4.8 to 5.9 A, 4000 rpm Speed, IP50/IP54/IP65 Enclosure, 0.35 in Dia x 0.79 in L Shaft, 5.75 to 23.9 in-lbf Torque, Flange Mounting, -4 to 104 deg F, Insulation Class: Class F, 6.08 in L Dimensions
BSH0552P02A1A Item Features
- For the leading edge Lexium 32 simplifies all aspects in the machine life cycle from engineering to maintenance
- A speed bandwidth of 1600 Hz provides outstanding response
- With a power density of 548 W/l Lexium 32 packs maximum power into minimum volume
- This saves on cabinet space and size, reduces the machine footprint and decreases costs
- Powerful integration software simplifies the entire process from planning to commissioning
- The new auto tuning function makes tuning easier than ever before
- Lexium 32 offers a host of features for rapid installation and maintenance
- Lexium 32 supports a wide selection of interfaces for fast integration into architectures
- Communication boards, encoder options and accessories adapt your Lexium 32 solution
- Leverage the full power of existing assets such as applications or legacy motors
- Safe torque off on board (IEC/EN 61800-5-2) for shorter downtime and less wiring
- Without holding brake
- 5.75 in-lbf at 400/480 V 3 ph, 6.64 in-lbf at 230 V 1 ph, 19.21 in-lbf at 200 to 240 V 1 or 3 ph, 23.9 in-lbf at 200 to 240/380 to 480 V 1 or 3 ph
- https://www.youtube.com/embed/4-v0hzgyQlg
BSH0552P02A1A Standards
ECCN: EAR99|Green Premium Listed|REACH Compliant|RoHS Compliant|UL E208613|WEEE Certified|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.govSKU #2292920Part Number #BSH0552P02A1AUNSPSC26101205UPC03389118158719

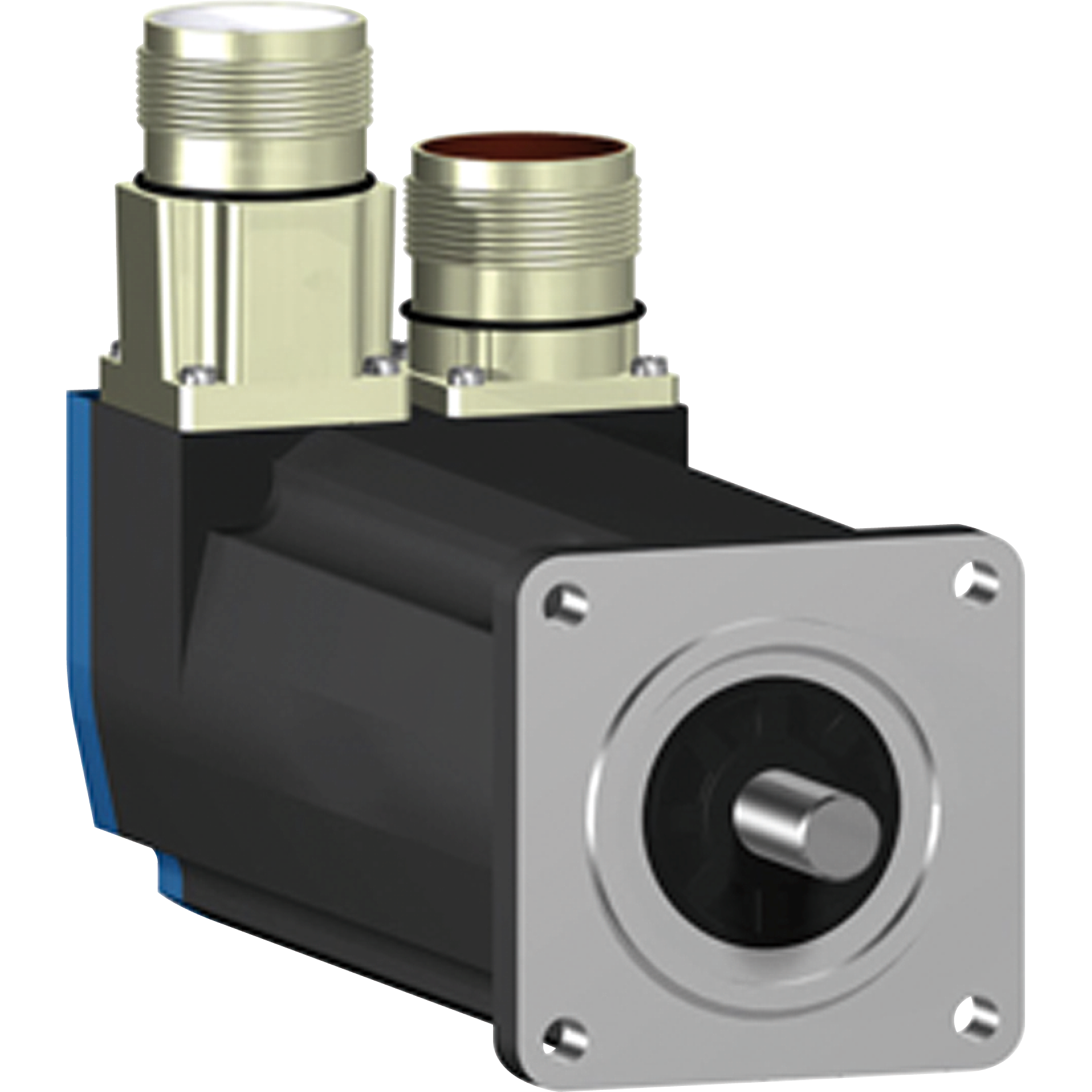

Image provided may only be a representation of final product and may include optional equipment
