Part Number # BJL36025
SKU # 2324170
Image Disclaimers Message
BJL36025

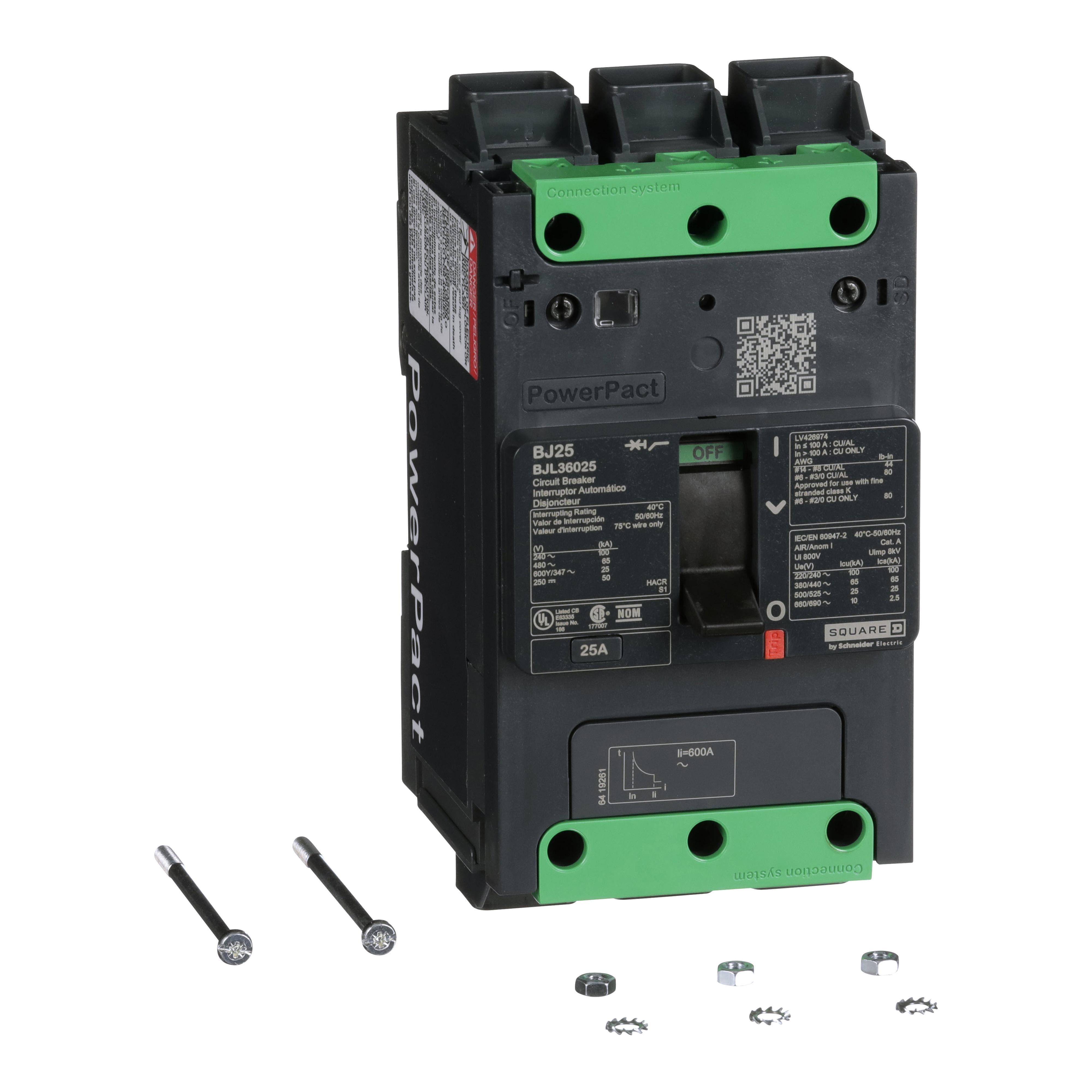

Square D BJL36025
Part Number # BJL36025
SKU # 2324170
$1117.91 / Each
Typical price:$1754.00 / Each
Square D BJL36025 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | BJL36025 |
| SKU #: | 2324170 |
| Actuator Type: | Toggle |
| Amperage Rating: | 25, 25 A |
| Dimensions: | 5.39 in H x 3.19 in W x 4.09 in D |
| Enclosure Type: | NEMA AB4/IP40 |
| Frame: | B |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600Y/347 VAC |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | -13 to 158, -13 to 158 deg F |
| Trip Range: | 400 to 600, 400 to 600 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Wire Size: | 14 to 3/0/6 to 2/0 AWG Al/Cu |
| Color: | Gray |
| Connection type: | Line/Load Lug |
| Country of origin: | US |
| Mounting type: | DIN Rail/Threaded |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121601 |
| UPC: | 00785901078517 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1117.91 / Each
Typical price:$1754.00 / Each
Quantity:
- Square D PowerPact EverLink Molded Case Circuit Breaker, 600Y/347 V AC, 25 A, 50/60 Hz Frequency, 100 kA at 240 V AC/65 kA at 480 V AC/25 kA at 600Y/347 V AC Interrupt, B Frame, Thermal Magnetic Trip, 400 to 600 A Trip, 3 Pole, 3 ph, Toggle Actuator, Line/Load Lug Connection, 14 to 3/0/6 to 2/0 AWG Al/Cu Wire, NEMA AB4/IP40 Enclosure, DIN Rail/Threaded Mounting, -13 to 158 deg F, 5.39 in H x 3.19 in W x 4.09 in D Dimensions, Gray
BJL36025 Application
Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Building and Industrial Building ApplicationsBJL36025 Item Features
- Tackles last minute changes, when they come up, be ready with one-click field installable accessories and the industrys widest range of operating mechanisms
- The PowerPact B-frame circuit breakers are designed and certified to multiple standards in order to meet the needs of customers who have global designs or build and sell in regions with various standards
- B-frame circuit breakers have the smallest footprint in the PowerPact family of industrial molded case circuit breaker products
- PowerPact B-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits
- The B-frame product offers a flexible platform in which customer needs for various types of mounting and terminations can be accommodated with simple alterations of the base product
- Field installable features and termination variety empower the customer to configure the product to their exact needs for control panel or power panel applications
- https://www.youtube.com/embed/4djGstrxN04
BJL36025 Standards
CSA C22.2 No 5|CE Certified|CCC Certified|EAC Certified|EN/IEC 60947-2, 60947-5-1|GB 14048.2|NOM Certified|UL 489|PROP65: This product can expose you to chemicals including: DINP and DIDP which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.govSKU #2324170Part Number #BJL36025UNSPSC39121601UPC00785901078517
