BGL26030
Schneider Electric BGL26030
Part Number # BGL26030
SKU # 2331618
$779.41 / Each
Typical price:$1142.00 / Each
Schneider Electric BGL26030 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | BGL26030 |
| SKU #: | 2331618 |
| Actuator Type: | Toggle |
| Amperage Rating: | 30 A |
| Dimensions: | 5.39 in H x 2.12 in W x 4.01 in D |
| Enclosure Type: | NEMA AB4/IP40 |
| Frame: | B |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600Y/347 VAC |
| Number of Poles: | 2 |
| Phase: | 1 |
| Temperature Rating (Degrees F): | -13 to 158 deg F |
| Trip Range: | 400 to 600 A |
| Trip Type: | Thermal Magnetic |
| Wire Size: | 14 to 3/0 AWG, 6 to 2/0 AWG Al/Cu |
| Connection type: | Line/Load Lug |
| Country of origin: | MX |
| Mounting type: | DIN Rail/Threaded |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121601 |
| UPC: | 03606481154033 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$779.41 / Each
Typical price:$1142.00 / Each
Quantity:
- Schneider Electric PowerPact EverLink Molded Case Circuit Breaker, 600Y/347 V AC, 30 A, 50/60 Hz Frequency, 65 kA at 240 V AC, 35 kA at 480 V AC, 18 kA at 600Y/347 V AC Interrupt, B Frame, Thermal Magnetic Trip, 400 to 600 A Trip, 2 Pole, 1 ph, Toggle Actuator, Line/Load Lug Connection, 14 to 3/0 AWG, 6 to 2/0 AWG Al/Cu Wire, NEMA AB4/IP40 Enclosure, DIN Rail/Threaded Mounting, -13 to 158 deg F, 5.39 in H x 2.12 in W x 4.01 in D Dimensions, Gray
BGL26030 Specifications
- Tackles last minute changes, when they come up, be ready with one-click field installable accessories and the industry's widest range of operating mechanisms
- The PowerPact™ B-frame circuit breakers are designed and certified to multiple standards in order to meet the needs of customers who have global designs or build and sell in regions with various standards
- B-frame circuit breakers have the smallest footprint in the PowerPact™ family of industrial molded case circuit breaker products
- PowerPact™ B-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits
- The B-frame product offers a flexible platform in which customer needs for various types of mounting and terminations can be accommodated with simple alterations of the base product
- Field installable features and termination variety empower the customer to configure the product to their exact needs for control panel or power panel applications
BGL26030 Application
Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Building and Industrial Building ApplicationsBGL26030 Item Features
- Available in 1, 2, 3, and 4 pole for unit mounts
- Dual rated AC/DC with 3 levels of breaking capacity
- A wide range of accessories, auxiliaries, and lug connections available
- https://www.youtube.com/embed/xNQHMcmA6OE
BGL26030 Standards
CSA C22.2 No 5|CE Certified|CCC Certified|EAC Certified|EN/IEC 60947-2, 60947-5-1|GB 14048.2|NOM Certified|UL 489|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govSKU #2331618Part Number #BGL26030UNSPSC39121601UPC03606481154033

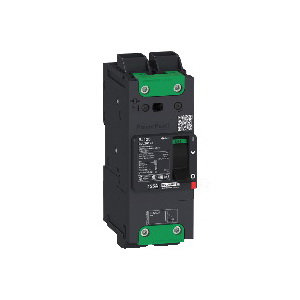

Image provided may only be a representation of final product and may include optional equipment
