Part Number # BSH1404P12F2P
SKU # 2369434

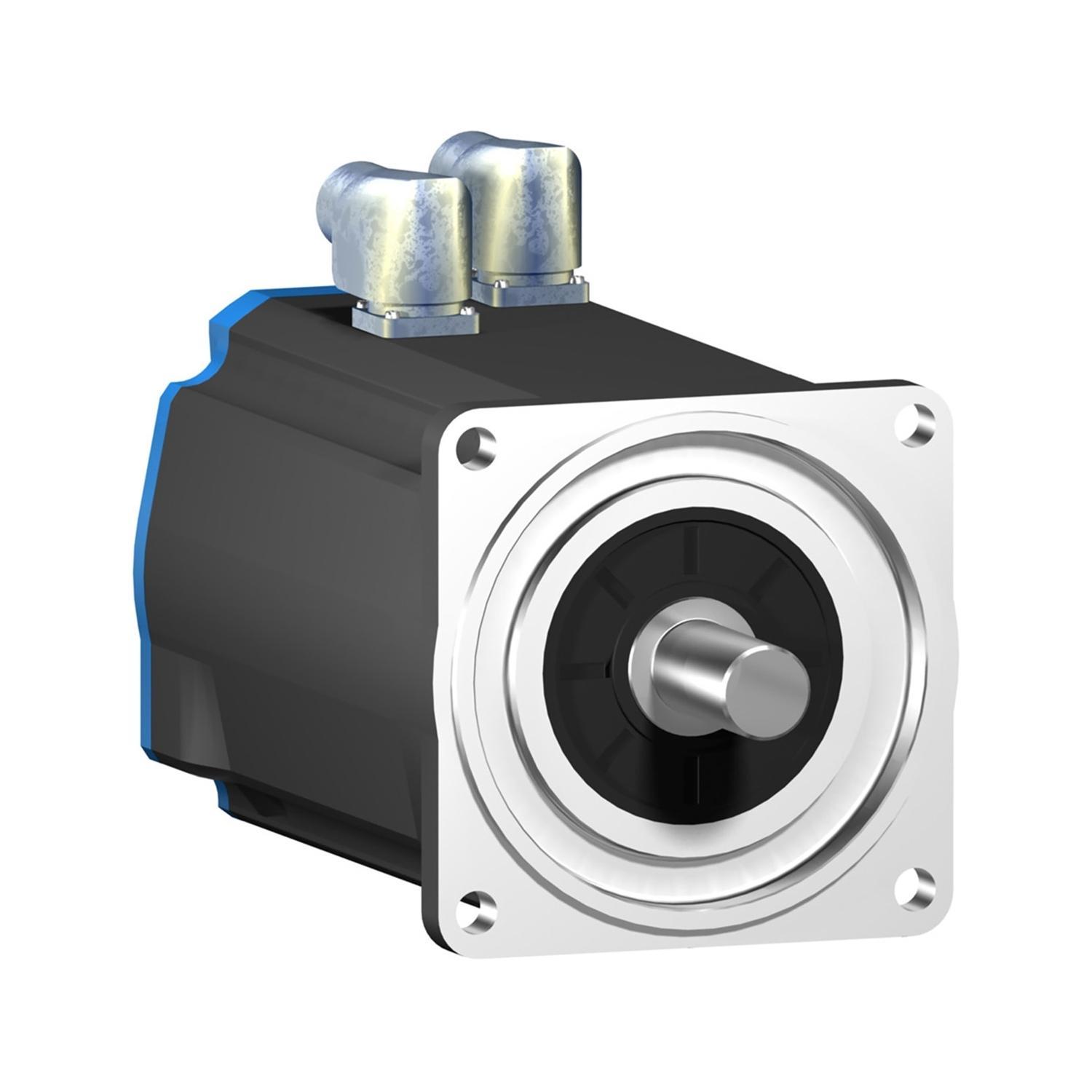

Image provided may only be a representation of
final product and may include optional equipment
BSH1404P12F2P
Schneider Electric BSH1404P12F2P
Part Number # BSH1404P12F2P
SKU # 2369434
$4922.43 / Each
Typical price:$5452.54 / Each
Schneider Electric BSH1404P12F2P Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | BSH1404P12F2P |
| SKU #: | 2369434 |
| Amperage Rating: | 95.6, 95.6 A |
| Dimensions: | 17.03 in L x 5.51 in W x 7.81 in H |
| Enclosure Type: | IP50 |
| Series: | BSH Series |
| Shaft Size: | 24 mm Dia x 50 mm L |
| Speed: | 4000, 4000 rpm |
| Temperature Rating (Degrees F): | -20 to 40, -20 to 40 deg C |
| Type: | 3-Phase 10-Pole Keyed Shaft End |
| Country of origin: | DE |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 26101205 |
| UPC: | 03389118361546 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4922.43 / Each
Typical price:$5452.54 / Each
Quantity:
Schneider Electric BSH1404P12F2P
Brand: Schneider Electric
Part Number: BSH1404P12F2P
Additional Description: SQD -BSH1404P12F2P (N) MOTOR 140 IP40 KEYED ABS BRK ANGLED NON-CANCELABLE, NON-RETURNABLE
Catalog Description: servo motor BSH, Lexium 32, 32.1N.m, 3000rpm, 140mm, keyed shaft, Sincos multi turn, with brake, IP50
BSH1404P12F2P Application
For LXM05AD57N4/LXM05BD57N4/LXM05CD57N4 at 380 to 480 V 3-ph motion servo drive, LXM32.D72N4 at 400 V 3-ph motion servo drive and LXM32.D72N4 at 480 V 3-ph motion servo driveBSH1404P12F2P Item Features
- Without second shaft end
BSH1404P12F2P Standards
RoHS Compliant|WEEE Compliance|REACH Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.govSKU #2369434Part Number #BSH1404P12F2PUNSPSC26101205UPC03389118361546
