Part Number # BGL46040
SKU # 2390565
Image Disclaimers Message
Brand: Schneider Electric
BGL46040

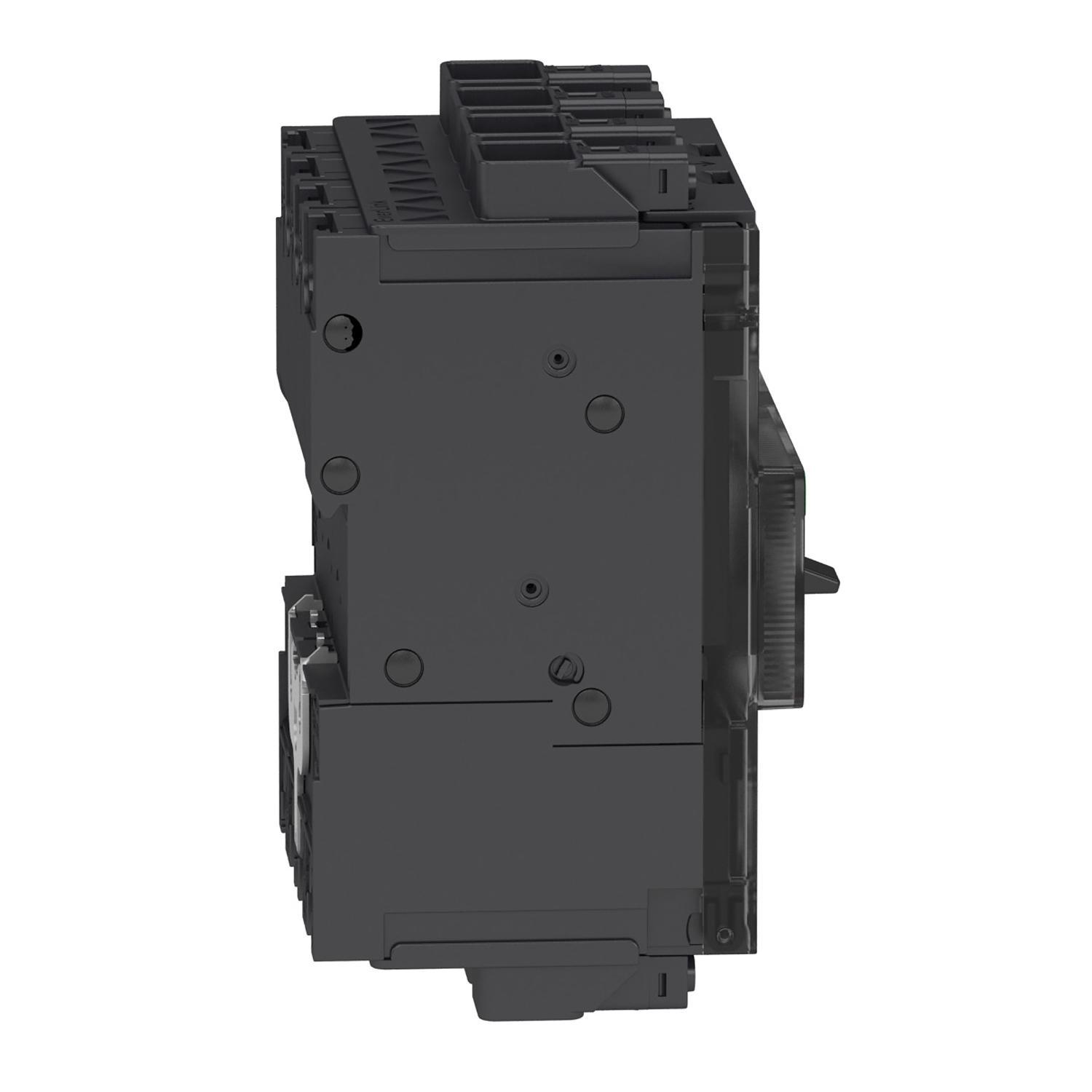

Schneider Electric BGL46040
Part Number # BGL46040
SKU # 2390565
$1857.16 / Each
Typical price:$3054.00 / Each
Schneider Electric BGL46040 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | BGL46040 |
| SKU #: | 2390565 |
| Actuator Type: | Toggle |
| Amperage Rating: | 40 A |
| Dimensions: | 108 mm W x 80 mm D x 137 mm H |
| Enclosure Type: | NEMA AB1/IK07/IP40 |
| Frame: | B |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 18/20 kA |
| Number of Poles: | 4 |
| Series: | BG 040 |
| Temperature Rating (Degrees F): | -25 to 70 deg C |
| Trip Range: | 400 to 600 A |
| Trip Type: | Thermal Magnetic |
| Wire Size: | 6 to 2/0 AWG Fine Stranded Al/Cu, 14 to 3/0 AWG Rigid/Stranded Al/Cu |
| Color: | Gray |
| Connection type: | EverLink Lug Line/Load |
| Country of origin: | MX |
| Mounting type: | Clip-On/DIN Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121601 |
| UPC: | 03606486995907 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1857.16 / Each
Typical price:$3054.00 / Each
Quantity:
- Schneider Electric Square D PowerPact Molded Case Circuit Breaker, Series: BG 040, 600Y/347 VAC, 250 VDC, 40 A, 50/60 Hz Frequency, 18/20 kA Interrupt, B Frame, Thermal Magnetic Trip, 400 to 600 A Trip, 4 Pole, Toggle Actuator, EverLink Lug Line/Load Connection, 6 to 2/0 AWG Fine Stranded Al/Cu, 14 to 3/0 AWG Rigid/Stranded Al/Cu Wire, NEMA AB1/IK07/IP40 Enclosure, Clip-On/DIN Rail Mounting, -25 to 70 deg C, 108 mm W x 80 mm D x 137 mm H Dimensions, Gray
BGL46040 Application
Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Buildings and Industrial Buildings ApplicationsBGL46040 Item Features
- Available in 1, 2, 3, and 4 pole for unit mounts
- Dual rated AC/DC with 3 levels of breaking capacity
- A wide range of accessories, auxiliaries, and lug connections available
BGL46040 Standards
CE Certified|CSA C22.2 File No. 5|CCC Certified|EAC|EN/IEC 60947-2|EN/IEC 60947-5-1|Green Premium Listed|GB 14048.2|IEC 60529|NMX J-266|NOM Certified|REACH Compliant|RoHS Compliant|WEEE Certified|UL 489|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2390565Part Number #BGL46040UNSPSC39121601UPC03606486995907
