2478000000
Weidmuller 2478000000
Part Number # 2478000000
SKU # 2405248
$358.92 / 12Each
Weidmuller 2478000000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2478000000 |
| SKU #: | 2405248 |
| Actuator Type: | Lever/Toggle |
| Amperage Rating: | 40 A |
| Dimensions: | 116 mm H x 17.6 mm W x 60.1 mm D |
| Enclosure Type: | IP20 |
| Interrupt Rating: | 10 kA |
| Number of Poles: | 1 |
| Series: | BR Series |
| Temperature Rating (Degrees F): | -35 to 70 deg C |
| Trip Range: | 200 to 400 A |
| Trip Type: | Thermal Magnetic |
| Type: | AC/DC Rated Miniature |
| Wire Size: | <=35 sq-mm |
| Connection type: | Screw Terminal |
| Country of origin: | CN |
| Material: | Molded Plastic |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121601 |
| UPC: | 04050118491999 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$358.92 / 12Each
Quantity:
- Weidmuller Branch Circuit Breaker, AC/DC Rated Miniature, Series: BR Series, 120 VAC, 60 VDC, 40 A, 10 kA Interrupt, Thermal Magnetic Trip, 200 to 400 A Trip, 1 Pole, Lever/Toggle Actuator, Screw Terminal Connection, <=35 sq-mm Wire, IP20 Enclosure, DIN Rail Mounting, -35 to 70 deg C, 116 mm H x 17.6 mm W x 60.1 mm D Dimensions, Molded Plastic
2478000000 Application
Automotive Manufacturing, Automation, Renewable Energy, Rail Vehicles, Steel Production, Power-D-Box-Systems, Process Control, Lighting Equipment, Telecom, Datacom, Pharmaceutical, Food, Chemical, Oil and Gas Applications2478000000 Item Features
- Protection of cables, motors, generators and transformers, thyristors and silicon rectifiers
- Protection of computers and their peripheral equipment, industrial process control systems, telecommunications equipment, power supplies
- When using the BR/SUxxxUC in DC applications, polarity does not have to be observed
- Maximum acceptable voltage between the conductors depends on the number of poles, circuitry and relevant standard/approval
2478000000 Standards
UL File No. 489|CSA File No. C22.2/5|IEC/EN 60898-1|IEC/EN 60898-1|CSA File No. C22.2/235|TUV|VDE Approved|CE Certified|NEC Approved|RoHS CompliantSKU #2405248Part Number #2478000000UNSPSC39121601UPC04050118491999

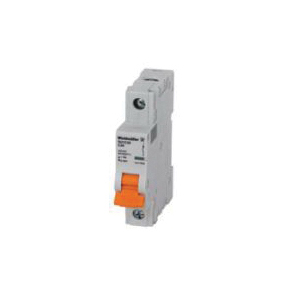

Image provided may only be a representation of final product and may include optional equipment
