GV6PB400N

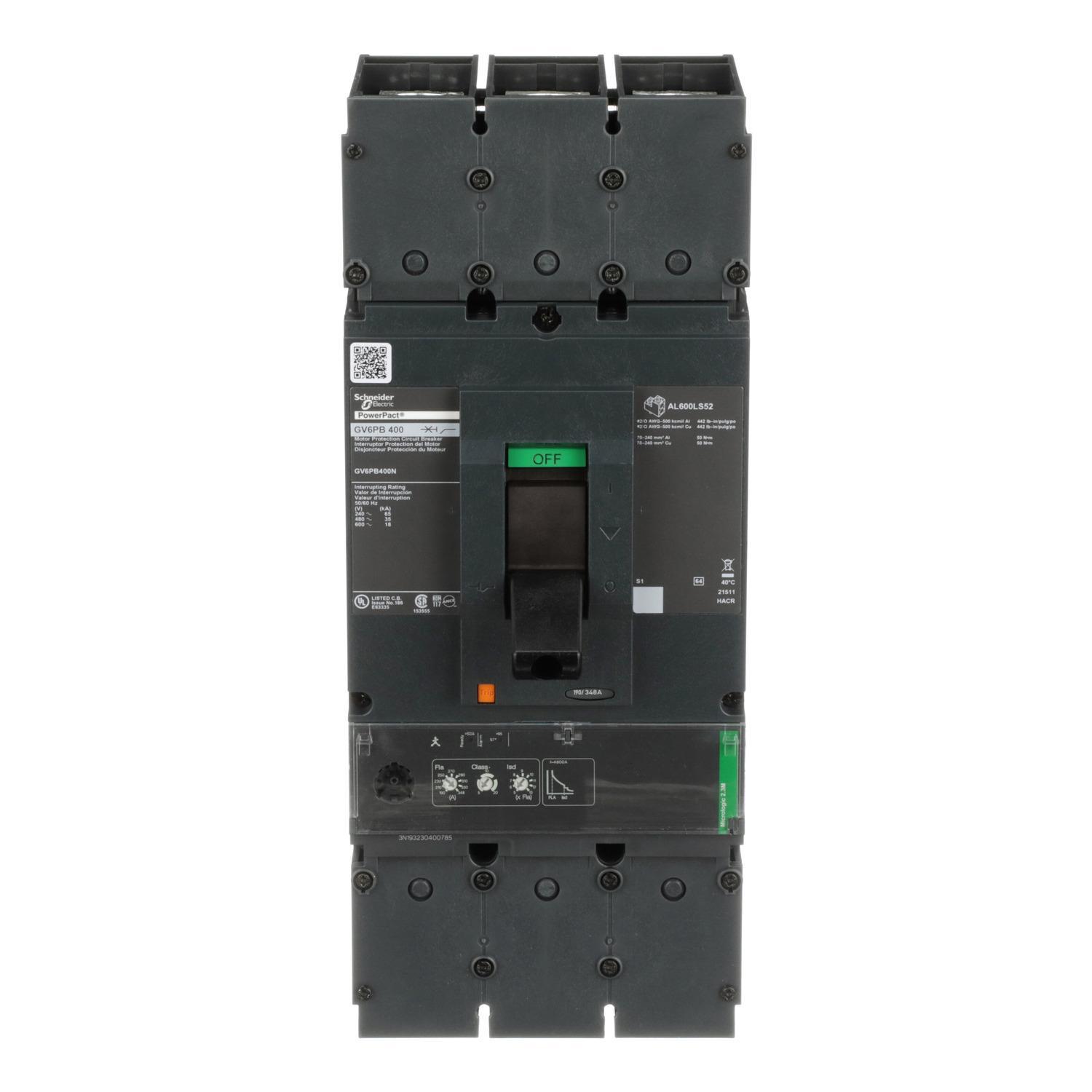

Schneider Electric GV6PB400N
Part Number # GV6PB400N
SKU # 2408122
$2902.30 / Each
Typical price:$3352.49 / Each
Schneider Electric GV6PB400N Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | GV6PB400N |
| SKU #: | 2408122 |
| Actuator Type: | Toggle |
| Amperage Rating: | 400 A |
| Dimensions: | 13.38 in H x 5.51 in W x 6.61 in D |
| Enclosure Type: | IP40 |
| Frequency Rating: | 50, 60 Hz |
| Interrupt Rating: | 18 kA |
| Number of Poles: | 3 P |
| Series: | GV4 |
| Temperature Rating (Degrees F): | 104 deg F |
| Trip Range: | 190, 348 A |
| Trip Type: | Thermal Magnetic |
| Connection type: | Line/Load Lugs |
| Country of origin: | US |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121601 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2902.30 / Each
Typical price:$3352.49 / Each
Quantity:
- Schneider Electric, GV6PB400N, Motor circuit breaker, Series: GV4, 600 V AC, 400 A, 50, 60 Hz Frequency, 18 kA Interrupt, Thermal Magnetic Trip, 190, 348 A Trip, 3 P Pole, Toggle Actuator, Line/Load Lugs Connection, IP40 Enclosure, 104 deg F, 13.38 in H x 5.51 in W x 6.61 in D Dimensions
GV6PB400N Item Features
- UL 489 supplement SH rating that allows the GV5/6PB to serve as both the circuit breaker and motor overload protection for a branch circuit
- Combine with any contactor to build a complete branch circuit, including TeSys D, TeSys F, TeSys N or Type S contactors
- 4 current ratings to protect motor up to 520 Amps
- 2 Short circuit current rating 35kA and 65kA at 480VAC
- Equipped with advanced Micrologic trip unit which provides overload and short circuit protection along with phase-unbalance or phase-loss protections
- Adjustable overload protection includes trip class selection (Class 5, 10 or 20)
- Adjustable short-time protection threshold (Isd) 5-13 x In with fixed time delay setting
- Short-Circuit instantaneous protection (Ii) 15 x In (max rating of the trip unit)
- Front LED indications Green LED for pre-alarm before an event of fault and Red LED for motor operation
- Optional door-mounted extended and direct mount rotary handle control
- Wide range of auxiliaries for control and additional protection
- Connections busbars/ cables with lugs
- Optional Thermal Fault module (SDTAM) provides a pre-trip alarm contact change
GV6PB400N Standards
UL Listed|CSASKU #2408122Part Number #GV6PB400NUNSPSC39121601UPC
