Part Number # HFNF240IESE020
SKU # 2415783
Image Disclaimers Message
HFNF240IESE020

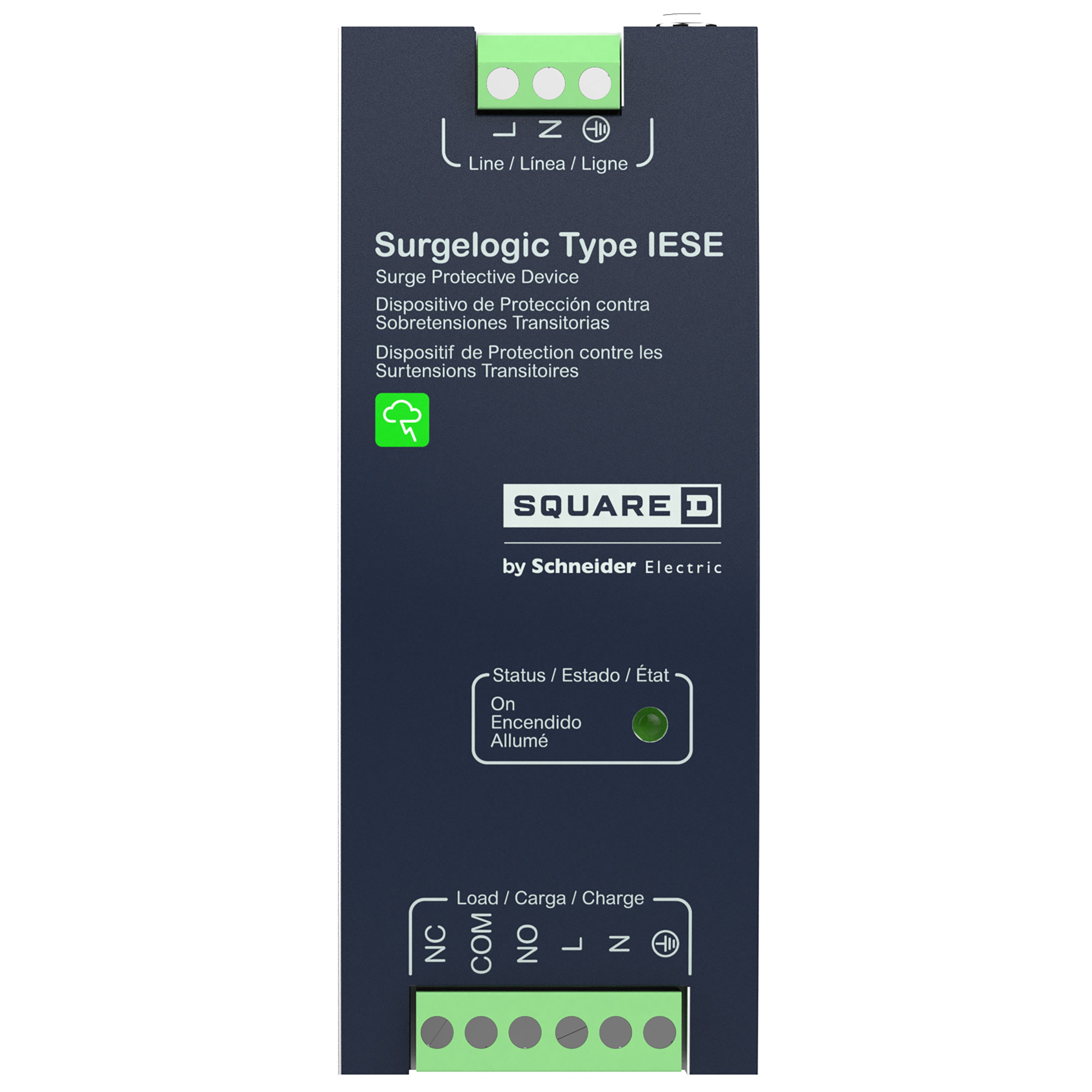

Square D HFNF240IESE020
Part Number # HFNF240IESE020
SKU # 2415783
$562.23 / Each
Typical price:$1535.29 / Each
Square D HFNF240IESE020 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | HFNF240IESE020 |
| SKU #: | 2415783 |
| Bandwidth: | 100 KHz to 50 MHz Normal Mode/5 MHz to 50 MHz Common Mode |
| Dimensions: | 2.56 in W x 3.66 in D x 4.79 in H |
| Electrical Ratings: | 240 V, 20 A |
| Environmental Conditions: | -40 to 185 deg F Temperature deg F |
| Indicator Type: | Green Status LED |
| Short Circuit Current Rating (kA): | 25 A |
| Terminal Type: | Line/Neutral/Ground |
| Type: | Type IESC |
| Wire Size: | 18 to 12 AWG, 14 to 10 AWG, 12 to 10 AWG |
| Country of origin: | US |
| Mounting type: | DIN Rail/Flange |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121601 |
| UPC: | 03606486149416 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$562.23 / Each
Typical price:$1535.29 / Each
Quantity:
- Square D Surgelogic Surge Protection Device, Type IESC, 240 V, 20 A Electrical Rating, 100 KHz to 50 MHz Normal Mode/5 MHz to 50 MHz Common Mode Bandwidth, 18 to 12 AWG, 14 to 10 AWG, 12 to 10 AWG Wire, 25 A Short Circuit, 3 kA Nominal Discharge, Green Status LED Indicator, Environmental Conditions: -40 to 185 deg F Temperature deg F, DIN Rail/Flange Mounting, Line/Neutral/Ground Terminal, 2.56 in W x 3.66 in D x 4.79 in H Dimensions
HFNF240IESE020 Application
Material Handling an Hoisting ApplicationsHFNF240IESE020 Item Features
- IESE with Active Tracking Filter (ATF) and Islatrol provide high frequency noise filtering and surge suppressor
- Improve productivity by reducing power quality related downtime as well as protecting for high voltage events
- Multi staged design to effectively protect equipment from a range of voltage disturbances
- Easy clip on and off with DIN rail mounting
- For single phase loads up to 20A continuous current
HFNF240IESE020 Standards
CSA C22.2. 8-13|UL File No. 1449/1283SKU #2415783Part Number #HFNF240IESE020UNSPSC39121601UPC03606486149416
