Part Number # GV6PB600S
SKU # 2425636
Image Disclaimers Message
Brand: Schneider Electric
GV6PB600S
Schneider Electric GV6PB600S
Part Number # GV6PB600S
SKU # 2425636
$5987.59 / Each
Typical price:$6916.36 / Each
Schneider Electric GV6PB600S Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | GV6PB600S |
| SKU #: | 2425636 |
| Amperage Rating: | 600 A |
| Dimensions: | 11.3 in H x 5.5 in W x 6.61 in D |
| Frequency Rating: | 50, 60 Hz |
| Interrupt Rating: | 25 kA |
| Number of Poles: | 3 P |
| Series: | GV5 |
| Temperature Rating (Degrees F): | 104 deg F |
| Trip Range: | 312, 520 A |
| Trip Type: | Electronic |
| Connection type: | Line/Load Lugs |
| Country of origin: | US |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121601 |
| UPC: | 03606486287668 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5987.59 / Each
Typical price:$6916.36 / Each
Quantity:

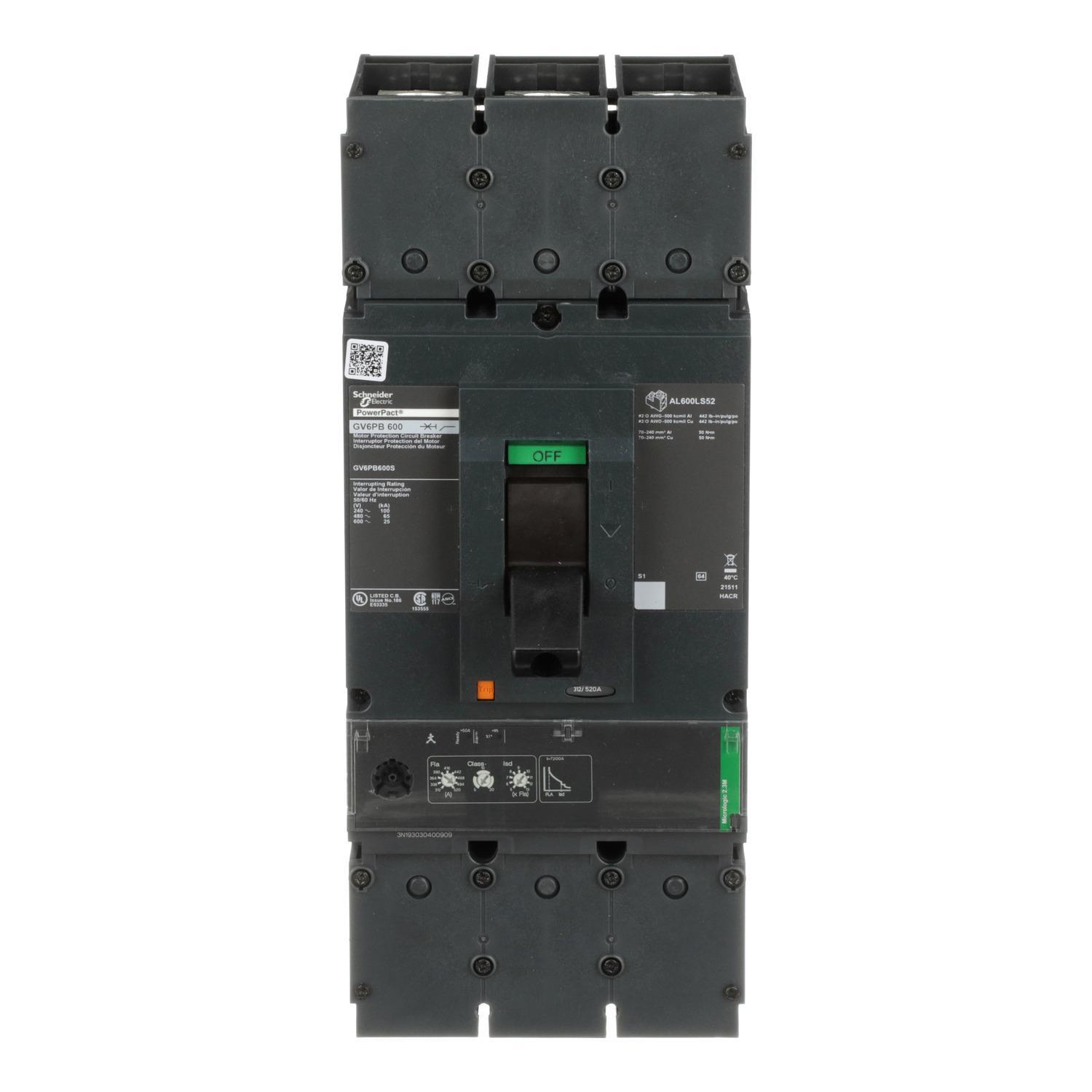

- Schneider Electric, GV6PB600S, Motor circuit breaker, Series: GV5, 600 V AC, 600 A, 50, 60 Hz Frequency, 25 kA Interrupt, Electronic Trip, 312, 520 A Trip, 3 P Pole, Line/Load Lugs Connection, 104 deg F, 11.3 in H x 5.5 in W x 6.61 in D Dimensions
GV6PB600S Item Features
- UL 489 supplement SH rating that allows the GV5/6PB to serve as both the circuit breaker and motor overload protection for a branch circuit
- Combine with any contactor to build a complete branch circuit, including TeSys D, TeSys F, TeSys N or Type S contactors
- 4 current ratings to protect motor up to 520 Amps
- 2 Short circuit current rating 35kA and 65kA at 480VAC
- Equipped with advanced Micrologic trip unit which provides overload and short circuit protection along with phase-unbalance or phase-loss protections
- Adjustable overload protection includes trip class selection (Class 5, 10 or 20)
- Adjustable short-time protection threshold (Isd) 5-13 x In with fixed time delay setting
- Short-Circuit instantaneous protection (Ii) 15 x In (max rating of the trip unit)
- Front LED indications Green LED for pre-alarm before an event of fault and Red LED for motor operation
- Optional door-mounted extended and direct mount rotary handle control
- Wide range of auxiliaries for control and additional protection
- Connections busbars/ cables with lugs
- Optional Thermal Fault module (SDTAM) provides a pre-trip alarm contact change
GV6PB600S Standards
UL Listed|CSASKU #2425636Part Number #GV6PB600SUNSPSC39121601UPC03606486287668
