RJF36200U63AE1

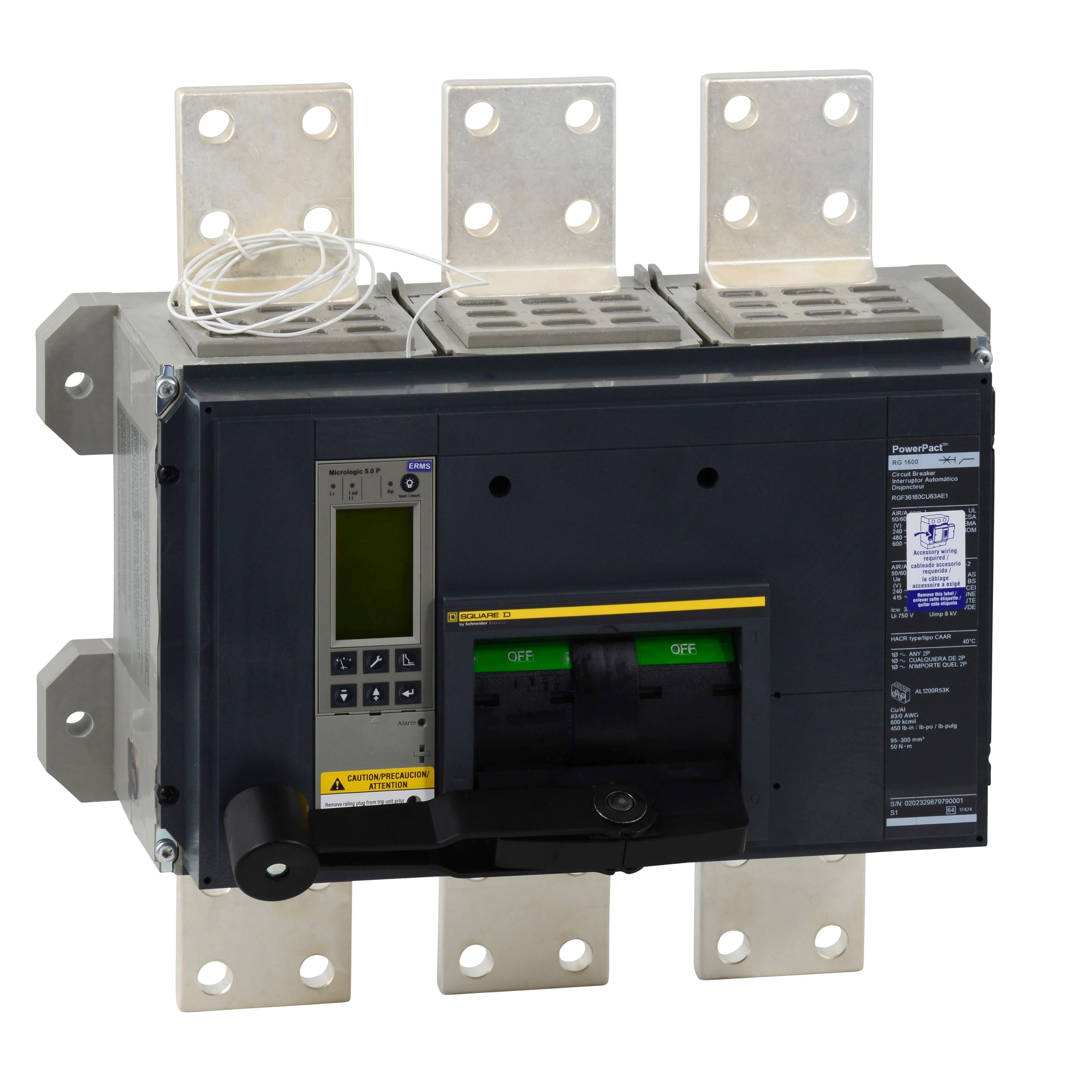

Schneider Electric RJF36200U63AE1
Part Number # RJF36200U63AE1
SKU # 2432051
Schneider Electric RJF36200U63AE1 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | RJF36200U63AE1 |
| SKU #: | 2432051 |
| Amperage Rating: | 2000 A |
| Dimensions: | 16.53 in W x 14.49 in D x 16.24 in H |
| Enclosure Type: | NEMA AB1 |
| Frame: | R |
| Frequency Rating: | 60 Hz |
| Interrupt Rating: | 25 kA |
| Number of Poles: | 3 |
| Trip Type: | Electronic, Electronic Power Micrologic 5.0 P LSI |
| Wire Size: | 1/0 AWG to 750 kcmil, 1/0 AWG to 300 kcmil |
| Connection type: | Busbar Line/Load |
| Country of origin: | US |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121601 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- Square D PowerPact Molded Case Circuit Breaker, 600 V AC, 2000 A, 60 Hz Frequency, 25 kA Interrupt, R Frame, Electronic Trip, 3 Poles, Busbar Line/Load Connection, 1/0 AWG to 750 kcmil, 1/0 AWG to 300 kcmil Wire, NEMA AB1 Enclosure, 16.53 in W x 14.49 in D x 16.24 in H Dimensions
RJF36200U63AE1 Application
Construction, Commercial Buildings, Oil and Gas, Marine, Industrial Buildings, Water Wastewater, Healthcare Facilities, Data Centers and Educational Campuses ApplicationsRJF36200U63AE1 Item Features
- PowerPact M-frame Molded Case Circuit Breakers use an electronic trip system with the simplicity of a thermal magnetic breaker to signal the circuit breaker to open automatically to help protect electrical systems from damage caused by overloads and short circuits
- Common accessories across the range of PowerPact Molded Case circuit breakers allow users to make late specification changes
- A wide range of field installable accessories allows customers to reduce inventory without sacrificing flexibility
- Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications
- IEC style rotary operating handles
- NEMA 9421 door mounted rotary operating mechanism
- NEMA 9422 flange mounted operating mechanism in two styles - bracket mounted or cable operated
RJF36200U63AE1 Standards
CSA Certified|IEC Certified|Green Premium Listed|NMX|RoHS Compliant|REACH Compliant|UL 489|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2432051Part Number #RJF36200U63AE1UNSPSC39121601UPC
