Part Number # TEYL3030B
SKU # 2436181
ABB TEYL3030B Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TEYL3030B |
| SKU #: | 2436181 |
| Actuator Type: | Pivot/Toggle Handle |
| Amperage Rating: | 30 A |
| Dimensions: | 5-1/4 in H x 3 in W x 3-1/16 in D |
| Frame: | TEYL |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 100/65/42/35 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 40 deg C |
| Trip Type: | Thermal Magnetic |
| Type: | Type TEY Compact |
| Wire Size: | 10 to 4 AWG |
| Connection type: | Load Lug |
| Material: | Plastic |
| Mounting type: | Bolted-On |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121601 |
| UPC: | 00783164462548 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB TEYL3030B
Brand: ABB
Part Number: TEYL3030B
Additional Description: ABB -TEYL3030B TEYX CIRCUIT BREAKER 3P 30A
Catalog Description: The TEY is a one-inch wide per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 Vac systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. TEYL breakers are available in 1, 2, and 3 pole versions 2&3 pole versions can be ordered with auxiliary contact, shunt trip, undervoltage release, or bell alarm accessories. TEYX CIRCUIT BREAKER 3P 30A
TEYL3030B Application
Health Care Facilities, Elevators, Emergency Systems and Legally Required Standby Systems Such As Generators and Many Other Critical Load Scenarios, Industries, Electrical Distribution and Control ApplicationsTEYL3030B Item Features
- Ambient compensated
- Multiple short circuit tiers
- Cost effective protection
- Mounting base for unit mount installations
- 100 kA at 120/240 VAC, 100 kA at 240 VAC, 65 kA at 480Y/277 VAC, 42 kA at 125 VDC, 35 kA at 250 VDC interrupt rating
TEYL3030B Standards
E11592SKU #2436181Part Number #TEYL3030BUNSPSC39121601UPC00783164462548

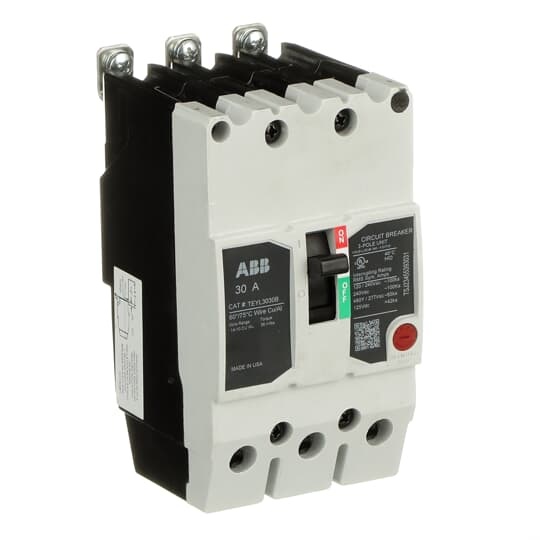

Image provided may only be a representation of final product and may include optional equipment
