Part Number # 9T58K0070
SKU # 2436746
Image Disclaimers Message

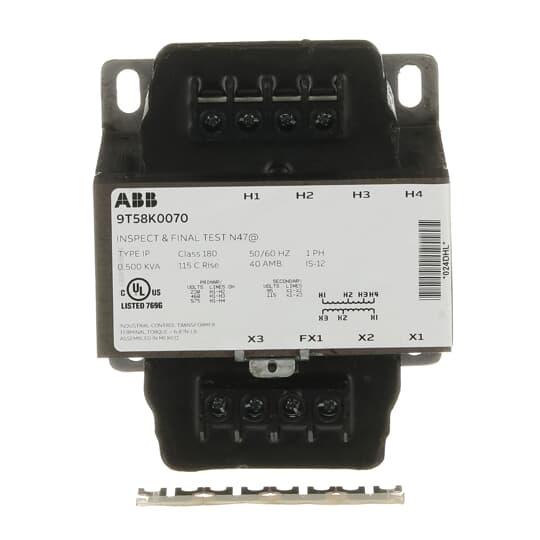

ABB 9T58K0070 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K0070 |
| SKU #: | 2436746 |
| Dimensions: | 4.56 in W x 3.9 in H |
| Enclosure Type: | Open |
| Frequency Rating: | 50 Hz |
| Insulation: | IS-12 |
| Phase: | 1 |
| Primary Voltage: | 230/460/575 V AC, 230/460/575 VAC |
| Secondary Voltage: | 115/95 V AC, 115/95 VAC |
| Series: | 9T58K |
| Temperature Rating (Degrees F): | 40 deg C |
| Type: | Core/Coil Dry Fully Encapsulated |
| Circuit type: | 10225 Frame |
| Connection type: | Pressure Plate |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173112274 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$320.69 / Each
Quantity:
- GE Power Transformer, Core/Coil Dry Fully Encapsulated, Series: 9T58K, 230/460/575 V AC Primary, 115/95 VAC Secondary, 0.5 kVA, 50 Hz, 1 ph, Pressure Plate, 10225 Frame, IS-12, Open, 40 deg C, 4.56 in W x 3.9 in H
9T58K0070 Application
Machine Tool, Electrical Distribution and Control Applications9T58K0070 Item Features
- Fully encapsulated coil is impervious to moisture
- Pressure plate terminals ensure secure connections
- Terminal board is anchored in the epoxy for greater reliability
- Finger safe terminals offer added protection and safety
- Wide variety of fusing options
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Flexible design allows input or output voltage to match any application
- Copper windings
- Available fuse clips offer simple, low cost fusing with terminal block models and minimum space are important
- 180 deg C temperature class
- K1 factor rated transformer
- Terminal board connection
- Copper coil
- 115 deg C temperature rise
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
9T58K0070 Standards
CE Certified|CSA No. 3272|cUL 5085|GSA Compliant|UL File No. E2739|UL ListedSKU #2436746Part Number #9T58K0070UNSPSC39121026UPC00783173112274
