9T58K2978

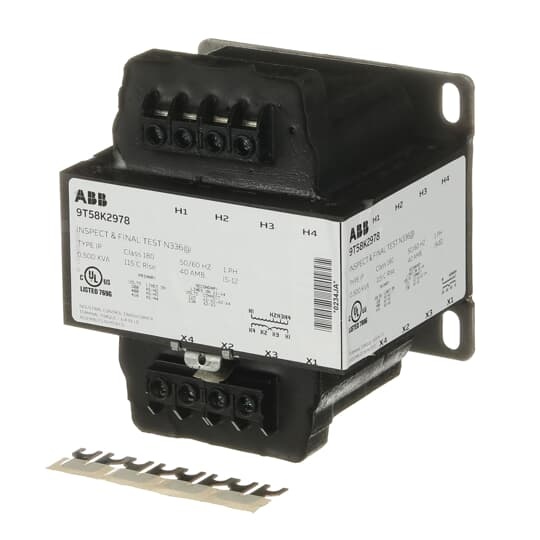

ABB 9T58K2978
Part Number # 9T58K2978
SKU # 2436747
ABB 9T58K2978 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K2978 |
| SKU #: | 2436747 |
| Dimensions: | 4.56 in W x 3.9 in H |
| Enclosure Type: | Open |
| Frequency Rating: | 50 Hz |
| Insulation: | IS-12 |
| Phase: | 1 |
| Primary Voltage: | 380/400/416 VAC |
| Secondary Voltage: | 115/230 VAC |
| Series: | 9T Series |
| Temperature Rating (Degrees F): | 40 deg C |
| Type: | Dry Encapsulated |
| Circuit type: | 10225 Frame |
| Connection type: | Terminal Board |
| Housing material: | Plastic |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173119334 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 9T58K2978
Brand: ABB
Part Number: 9T58K2978
Additional Description: ABB -9T58K2978 1C,0.5KVA,416380-115/230,115C,5/6HZ ,IP Z,IP
Catalog Description: ABB's General purpose encapsulated open core, and coil transformer (also known as Type IP Control Power transformers) are ideally suited for industrial and light-duty loads, HVAC applications, signal and alarm systems, industrial control panels, lighting, and circuit isolation. The optional fuse block adapter kits enable input and output flexibility. Type IP Control Power transformers are an economical alternative to high in-rush/machine tool transformers.
9T58K2978 Application
For machine tools are used to provide voltage to control devices in applications where regulation and minimum space are important9T58K2978 Item Features
- Fully encapsulated coil is impervious to moisture
- Pressure plate terminals ensure secure connections
- Terminal board is anchored in the epoxy for greater reliability
- Wide variety of fusing options
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Copper windings
- Flexible design allows input or output voltage to match any application
- Available fuse clips offer simple, low cost fusing with terminal block models and minimum space are important
9T58K2978 Standards
CE Certified|CSA C22.2 File No. 66/3272|cUL Listed|GSA Compliant|UL 5085 File No. E2739SKU #2436747Part Number #9T58K2978UNSPSC39121026UPC00783173119334
