Part Number # 3RT10752XB460LA2
SKU # 2437741
3RT10752XB460LA2

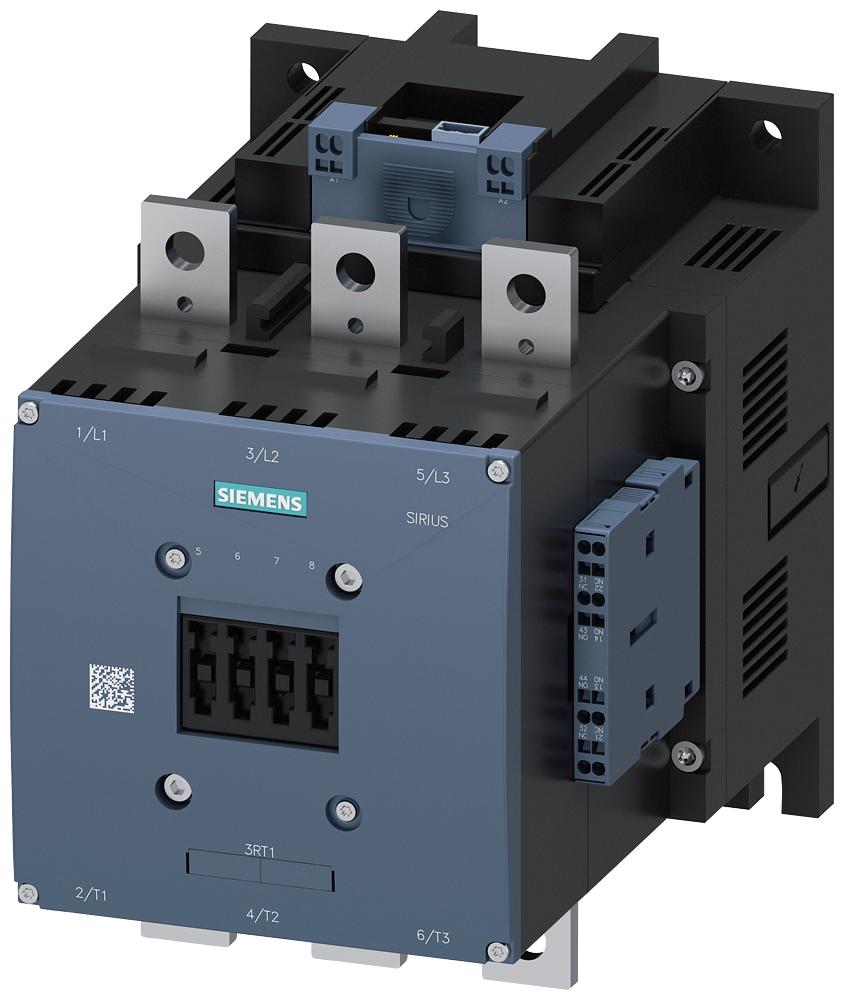

Siemens 3RT10752XB460LA2
Part Number # 3RT10752XB460LA2
SKU # 2437741
Siemens 3RT10752XB460LA2 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT10752XB460LA2 |
| SKU #: | 2437741 |
| Coil Power Rating: | 200 kW at 400 V |
| Coil Voltage: | 24 V DC, 24 VDC |
| Frequency Rating: | 50 to 60 Hz |
| Number of Auxiliary Contacts: | 4 |
| Number of Poles: | 3 |
| Operating Temperature: | -25 to 60 deg C |
| Terminal Type: | Spring Loaded |
| Type: | Electronic |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00195125529359 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT10752XB460LA2
Brand: Siemens
Part Number: 3RT10752XB460LA2
Additional Description: SIEM-3RT10752XB460LA2 CONTACTOR AC3:200 KW/400V 2NO+2NC DC24V 200 kW / 400 V Uc: 24 V DC x (0.7-1.25) PLC INOUT 24-110 V DC 3-pole, AUX CONTACTS 2 NO + 2 NC DRIVE: ELECTRONIC MAIN CIRCUIT: BUSBAR CONTROL & AUX CIRCUIT: SPRING LOADED TERMINAL, EXTENDED RANGE, RAILROAD IEC 60077
Catalog Description: Power contactor, AC-3e/AC-3 400 A, 200 kW / 400 V Uc 24 V DC x (0.7-1.25) PLC input 24-110 V DC 3-pole, auxiliary contacts 2 NO + 2 NC drive electronic main circuit busbar control and auxiliary circuit spring-loaded terminal extended ratedcondition railroad IEC 60077
3RT10752XB460LA2 Standards
RoHS Compliant Since: 09/06/2016|AL : N / ECCN : N|WEEE (2012/19/EU)|IEC 60077SKU #2437741Part Number #3RT10752XB460LA2UNSPSC39121529UPC00195125529359
Image provided may only be a representation of final product and may include optional equipment
