Part Number # 30EUEE32A2VF
SKU # 2442817
Image Disclaimers Message
Brand: Siemens
30EUEE32A2VF

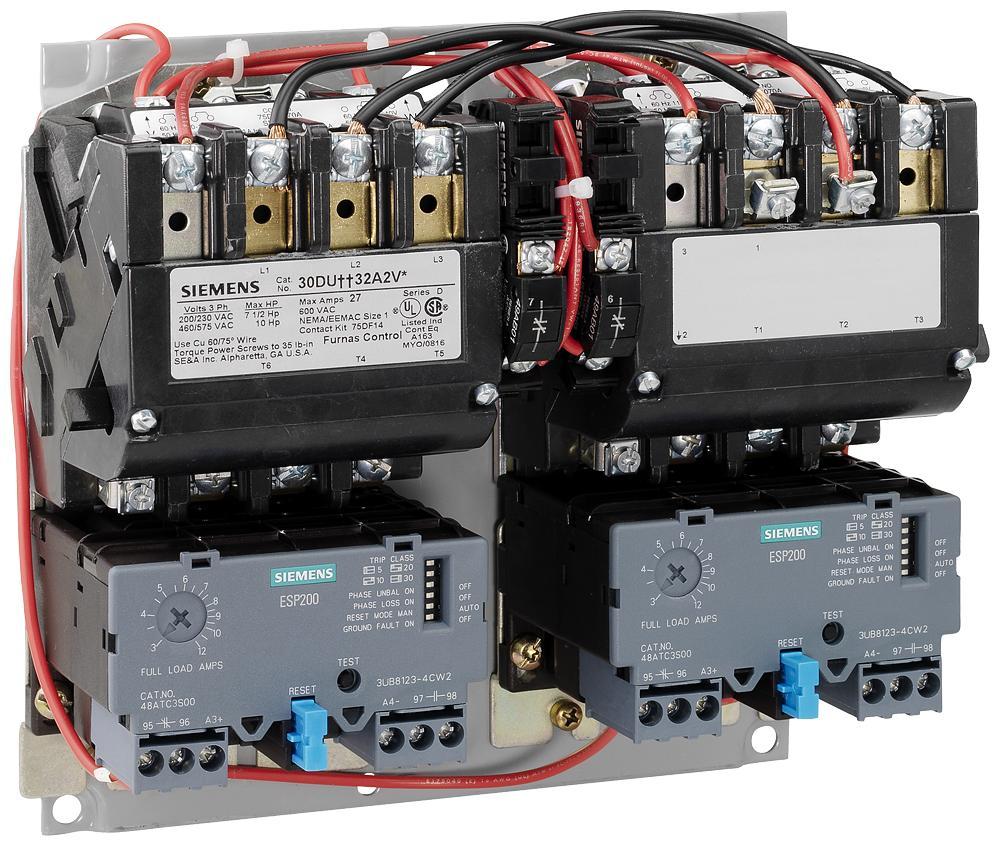

Siemens 30EUEE32A2VF
Part Number # 30EUEE32A2VF
SKU # 2442817
Siemens 30EUEE32A2VF Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 30EUEE32A2VF |
| SKU #: | 2442817 |
| Amperage Rating: | 40 A |
| Auxiliary Contact Rating: | 10 A at 600 VAC, 5 A at 600 VDC |
| Coil Voltage: | 110 V AC at 50 Hz, 120 V AC at 60 Hz, 110 VAC at 50 Hz, 120 VAC at 60 Hz |
| Dimensions: | 10.5 in W x 3.92 in D x 7.69 in H |
| Enclosure Type: | Open |
| Frequency Rating: | 60 Hz |
| Full Load Current: | 10 to 40 A Low Speed, High Speed |
| Motor Power: | 10 hp at 200/208/220/230 VAC, 15 hp at 460/480/575/600 VAC |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -4 to 104 deg F |
| Overload Relay: | Solid-State |
| Phase: | 3, 3 ph |
| Reset Type: | Automatic/Manual/Remote |
| Timing: | 19 to 29 ms On/10 to 24 ms Off |
| Type: | Heavy Duty 2-Speed 1-Winding Consequent Pole |
| Wattage: | 8.6 W |
| Connection type: | Screw Terminal |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00783087995628 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- Siemens Motor Starter, Heavy Duty 2-Speed 1-Winding Consequent Pole, 600 VAC, 40 A, 60 Hz Frequency, 8.6 W Wattage, 10 hp at 200/208/220/230 VAC, 15 hp at 460/480/575/600 VAC Motor, 110 V AC at 50 Hz, 120 V AC at 60 Hz Coil, 19 to 29 ms On/10 to 24 ms Off Timing, Automatic/Manual/Remote Reset, 3 ph, Screw Terminal Connection, Solid-State Overload Relay, 10 to 40 A Low Speed, High Speed Full Load, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, Open Enclosure, 10000000 Cycles Operating Cycles, -4 to 104 deg F Operating, 10.5 in W x 3.92 in D x 7.69 in H Dimensions
30EUEE32A2VF Item Features
- Constant or variable torque
- NEMA controller size 1-3/4
SKU #2442817Part Number #30EUEE32A2VFUNSPSC39121521UPC00783087995628
