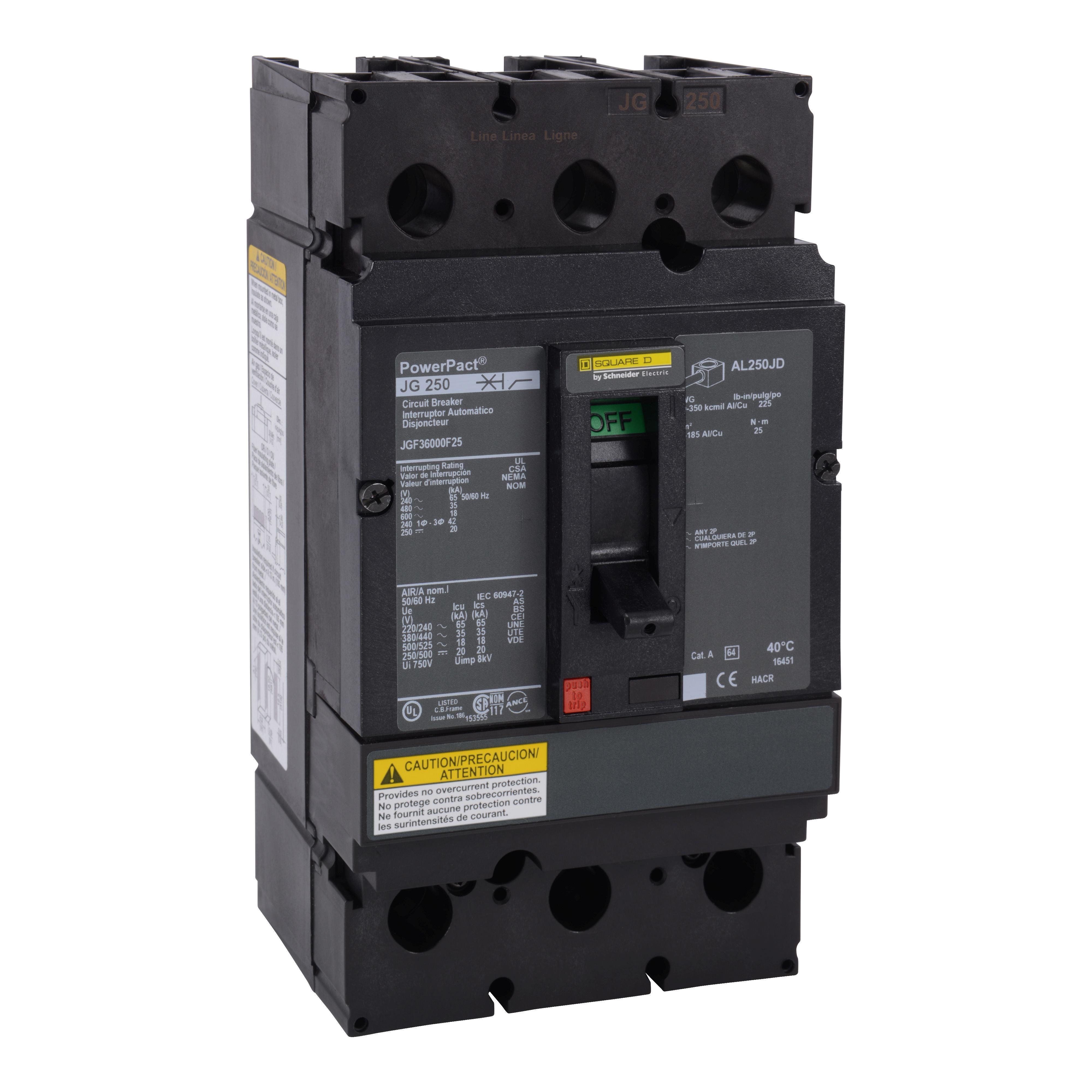

Square D JGF36000F25 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | JGF36000F25 |
| SKU #: | 2443413 |
| Actuator Type: | Toggle |
| Amperage Rating: | 250 A |
| Dimensions: | 7.52 in H x 4.12 in W x 5 in D |
| Frame: | J Frame |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250 VDC |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 104 deg F |
| Trip Range: | 150 to 250 A |
| Trip Type: | Thermal Magnetic |
| Type: | Type JGF |
| Connection type: | Busbar Line/Load |
| Country of origin: | US |
| Mounting type: | Unit |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121601 |
| UPC: | 00785901635864 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- Square D PowerPact J Molded Case Switch Fram, Type JGF, 600 V AC/250 V DC, 250 A, 50/60 Hz Frequency, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250 VDC Interrupt, J Frame, Thermal Magnetic Trip, 150 to 250 A Trip, 3 Pole, 3 ph, Toggle Actuator, Busbar Line/Load Connection, Unit Mounting, 104 deg F, 7.52 in H x 4.12 in W x 5 in D Dimensions
JGF36000F25 Application
Construction, Commercial Buildings, Oil and Gas, Marine, Industrial Buildings, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial MarketsJGF36000F25 Item Features
- Available in 2 or 3 pole design
- Overcurrent protection and switching on AC systems
- Common accessories across the range
- Easy to install, extremely versatile, a wide variety of terminal options
- https://www.youtube.com/embed/GHPCn0u1IUE
JGF36000F25 Standards
UL 489|IEC/CSA Certified|CCC/CE Marked|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.govSKU #2443413Part Number #JGF36000F25UNSPSC39121601UPC00785901635864
Image provided may only be a representation of final product and may include optional equipment
