Part Number # LRL36600U33X
SKU # 2443747
Image Disclaimers Message
LRL36600U33X

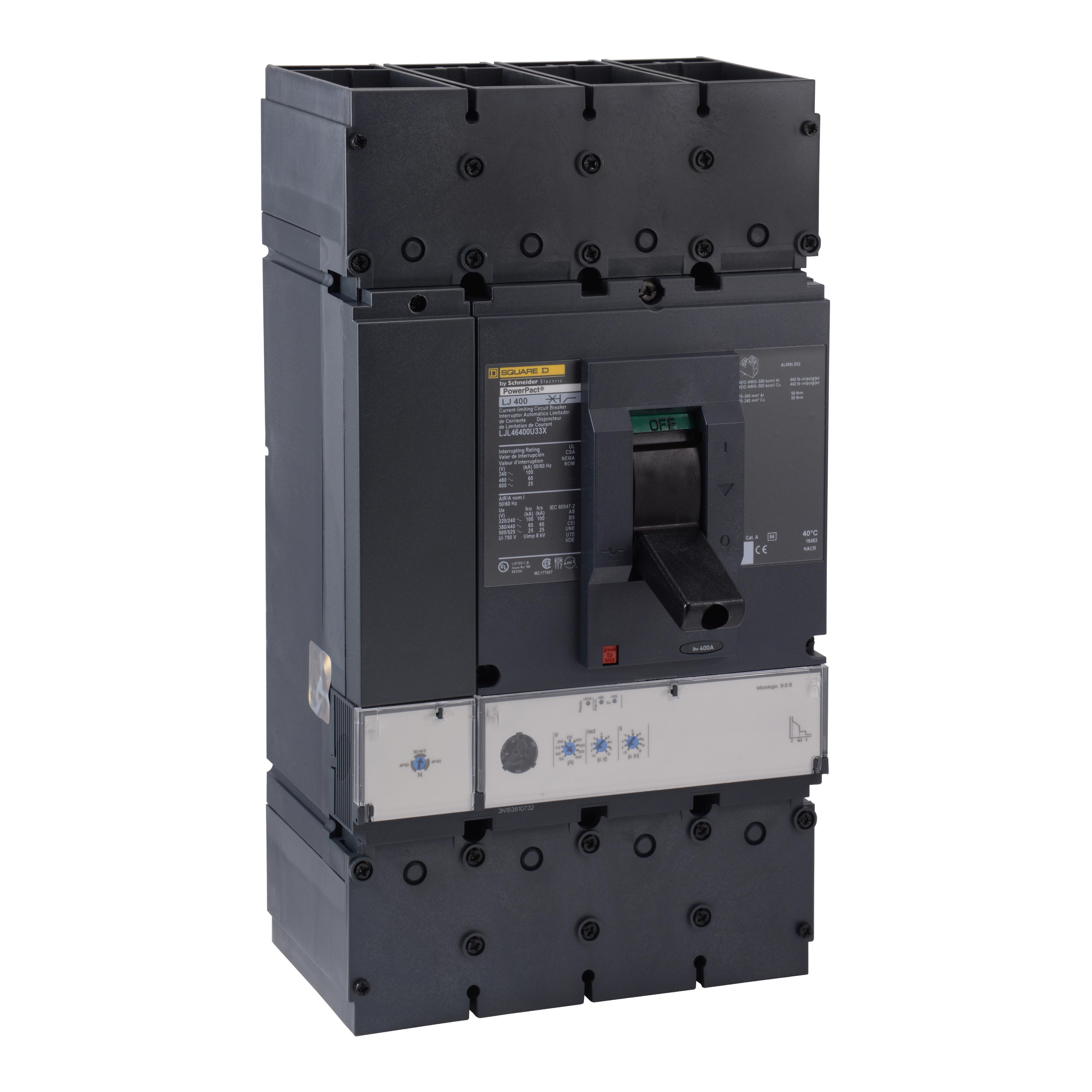

Square D LRL36600U33X
Part Number # LRL36600U33X
SKU # 2443747
$11725.77 / Each
Typical price:$14295.00 / Each
Square D LRL36600U33X Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | LRL36600U33X |
| SKU #: | 2443747 |
| Amperage Rating: | 600 A |
| Dimensions: | 6.61 in L x 5.5 in W x 11.2 in H |
| Enclosure Type: | NEMA AB1 |
| Frame: | L |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 100 kA |
| Number of Poles: | 3 |
| Trip Type: | Adjustable Magnetic, Electronic |
| Wire Size: | 2/0 AWG to 500 kcmil Al/Cu |
| Connection type: | Lug Line/Load |
| Country of origin: | US |
| Mounting type: | Backplate/DIN Rail/Flush |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121601 |
| UPC: | 03606481029805 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$11725.77 / Each
Typical price:$14295.00 / Each
Quantity:
- Square D PowerPact L Molded Case Circuit Breaker, 600 V AC, 600 A, 50/60 Hz, 100 kA Interrupt, L Frame, Electronic Trip, 3 Pole, Lug Line/Load, 2/0 AWG to 500 kcmil Al/Cu Wire, NEMA AB1 Enclosure, Backplate/DIN Rail/Flush Mount, 6.61 in L x 5.5 in W x 11.2 in H
LRL36600U33X Application
Construction, Commercial Buildings, Oil and Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets ApplicationsLRL36600U33X Item Features
- Common accessories across the range of PowerPact Molded Case Circuit Breakers allow users to make late specification changes
- A wide range of field installable accessories allows customers to reduce inventory without sacrificing flexibility
- Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications
- IEC style rotary operating handles
- NEMA 9421 door mounted rotary operating mechanism
- NEMA 9422 flange mounted operating mechanism in two styles - bracket mounted or cable operated
- Equipped with a unique snap-in terminal design that makes converting between busbar and lug options easy
- Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields
- Worldwide availability with unique global part numbers
- Flexible and simple offer, with proven performance
- Direct access to energy metering and energy efficiency thanks to the Micrologic control units
- https://www.youtube.com/embed/xbXWcq35EIo
LRL36600U33X Standards
CE Certified|CSA C22.2 File No. 5|CCC Certified|ECCN: EAR99|Green Premium Listed|IEC 60947-2|NMX J-266|RoHS Compliant|REACH Compliant|UL 489|PROP65: This product can expose you to chemicals including: DIDP and DINP which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.govSKU #2443747Part Number #LRL36600U33XUNSPSC39121601UPC03606481029805
