Part Number # 30DUDD32A2HF
SKU # 2444111
Image Disclaimers Message
Siemens 30DUDD32A2HF Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 30DUDD32A2HF |
| SKU #: | 2444111 |
| Amperage Rating: | 27 A |
| Auxiliary Contact Rating: | 10 A at 600 VAC/5 A at 600 VDC |
| Coil Voltage: | 110 V AC at 50 Hz/120 V AC at 60 Hz, 110 VAC at 50 Hz/120 VAC at 60 Hz |
| Dimensions: | 10.5 in W x 3.92 in D x 7.69 in H |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60 Hz |
| Full Load Current: | 5.5 to 22 A Low Speed, 5.5 to 22 A High Speed |
| Motor Power: | 5 hp at 200/208/220/230 VAC, 7.5 hp at 460/480/575/600 VAC |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -4 to 104 deg F |
| Overload Relay: | Solid State |
| Phase: | 3 |
| Reset Type: | Automatic/Manual/Remote |
| Timing: | 19 to 29 ms On/10 to 24 ms Off |
| Type: | 2-Speed 1-Winding Size 1 |
| Wattage: | 8.6 W |
| Connection type: | Screw Terminal |
| Country of origin: | MX |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00783087989344 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

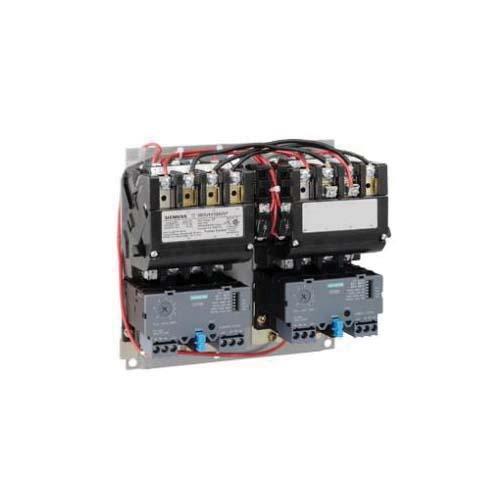

- Siemens Motor Starter, 2-Speed 1-Winding Size 1, 600 VAC, 27 A, 50/60 Hz Frequency, 8.6 W Wattage, 5 hp at 200/208/220/230 VAC, 7.5 hp at 460/480/575/600 VAC Motor, 110 V AC at 50 Hz/120 V AC at 60 Hz Coil, 19 to 29 ms On/10 to 24 ms Off Timing, Automatic/Manual/Remote Reset, 3 ph, Screw Terminal Connection, Solid State Overload Relay, 5.5 to 22 A Low Speed, 5.5 to 22 A High Speed Full Load, 10 A at 600 VAC/5 A at 600 VDC Auxiliary, Open Enclosure, 10000000 Cycles Operating Cycles, -4 to 104 deg F Operating, 10.5 in W x 3.92 in D x 7.69 in H
30DUDD32A2HF Item Features
- Constant horsepower
- Without enclosure
30DUDD32A2HF Standards
CSA 22.2 File No. 14|NEMA ICS 2|REACH Article 33|UL 508|WEEE 2012/19/EUSKU #2444111Part Number #30DUDD32A2HFUNSPSC39121521UPC00783087989344
