Part Number # BV4T115J
SKU # 2444927
Image Disclaimers Message
BV4T115J

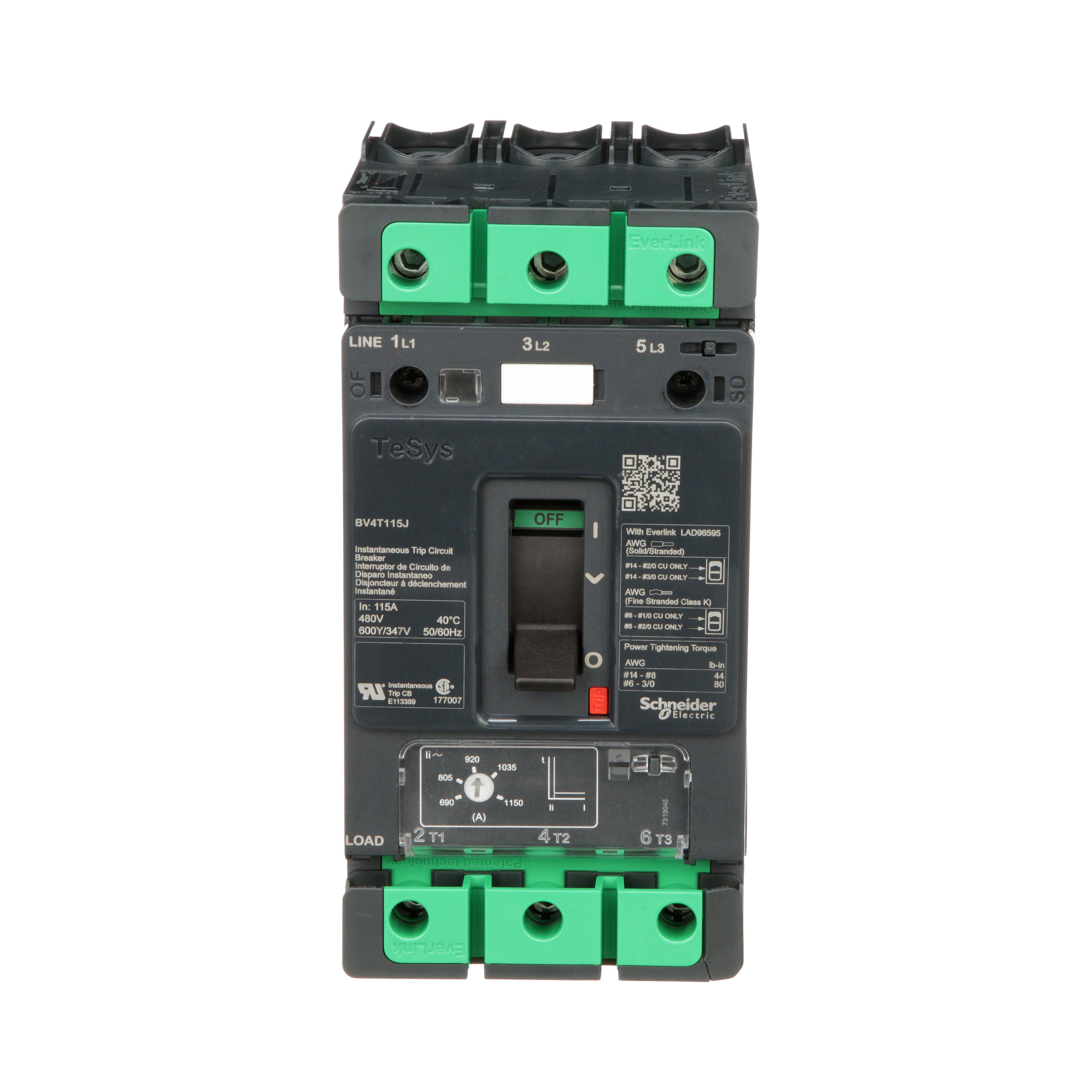

Schneider Electric BV4T115J
Part Number # BV4T115J
SKU # 2444927
$1493.38 / 2Each
Typical price:$1725.00 / Each
Schneider Electric BV4T115J Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | BV4T115J |
| SKU #: | 2444927 |
| Amperage Rating: | 115 A |
| Dimensions: | 6.38 in H x 3.19 in W x 4.57 in D |
| Enclosure Type: | IP40 |
| Frequency Rating: | 50/60 Hz |
| Series: | TESYS Series |
| Temperature Rating (Degrees F): | -13 to 158 deg F |
| Color: | Gray RAL 7016) |
| Connection type: | Screw Connector |
| Country of origin: | MX |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121601 |
| UPC: | 03606481328434 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1493.38 / 2Each
Typical price:$1725.00 / Each
Quantity:
- Schneider Electric BV4T115J, TESYS Series, 600Y/347 V AC, 115 A, 50/60 Hz Frequency, Screw Connector Connection, IP40 Enclosure, -13 to 158 deg F, 6.38 in H x 3.19 in W x 4.57 in D Dimensions, Gray RAL 7016
BV4T115J Application
For compact motor protection in conjunction with both the TeSys and Square D NEMA product families for motor controlBV4T115J Item Features
- The TeSys BV4 motor circuit protector offers instantaneous trip short circuit protection for branch circuits for motor loads
- TeSys BV4 is a complementary magnetic-only offer to our GV4 product family using similar accessories
- It complies with NEC when installed based on UL listed control combinations having motor overload protection
- Coming in a variety of protection options to fit most applications with Standard and High fault short circuit current ratings
- See Type D combinations and details
- Designed for motor control applications 2A to115A up to 600Y/347 VAC
- Adjustable magnetic trip setting to meet full range of NEC requirements
- Common dimensions across line for consistent spacing requirements
- 2 protection levels at High Fault and Standard Fault options
- Patented EverLink Creep Compensation Technology provides durable connections and reduces risk of overheating
- Auxiliary contacts for both Open/Close signaling as well as trip indication
- Voltage release options in both Shunt Trip and Undervoltage relay accessory
- Tamper-resistant cover seal provided for trip settings
- Variety of mounting options with 35mm and 75mm DIN or panel mount
- Extensive handle selection options with direct mount, front panel mount or side panel mount
- High performance performance level
- Short-circuit protection type
- 600 to 1150 A 104 deg F (40 deg C) magnetic setting range
- 40000 cycles mechanical durability
- 1 alarm switch fault signalling contact, plug-in1 voltage release electrical remote tripping, plug-in1 auxiliary switch open/close contact, plug-in number of slots
BV4T115J Standards
CSA|UL Listed|CSA|C22.2 No 5UL 489SKU #2444927Part Number #BV4T115JUNSPSC39121601UPC03606481328434
