Part Number # TEY330
SKU # 2445428
ABB TEY330 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TEY330 |
| SKU #: | 2445428 |
| Amperage Rating: | 30 A |
| Dimensions: | 5-1/4 in H x 3 in W x 3-1/16 in D |
| Frame: | TEY |
| Interrupt Rating: | 14 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Series: | Q-Line |
| Temperature Rating (Degrees F): | 40 deg C |
| Trip Type: | LI/Non-Interchangeable, Thermal Magnetic |
| Wire Size: | 14 to 8 AWG, 12 to 8 AWG |
| Connection type: | Load Lug |
| Mounting type: | Bolted-On |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121601 |
| UPC: | 00783164181043 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB TEY330
Brand: ABB
Part Number: TEY330
Additional Description: ABB -TEY330 CIRCUIT BREAKER THREE POLE
Catalog Description: The TEY is a one-inch wide per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 Vac systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. TEY breakers are available in 1, 2, and 3 pole versions and can be ordered with auxiliary contact and shunt trip accessories. CIRCUIT BREAKER THREE POLE
TEY330 Application
Industrial, Electrical Distribution and Control ApplicationsTEY330 Includes
Integral Copper/Aluminum Load LugTEY330 Item Features
- Standard continuous current rated
- EY GO schedule
- UL listed for HID (high intensity discharge), all 50 A or less
- HACR, high intensity discharge (HID) rated special marking
- 65 kA at 120/240 VAC, 14 kA at 277 VAC interrupt rating
TEY330 Standards
UL File No. E11592|CSA File No. LR57114|GSA Compliant|HACR RatedSKU #2445428Part Number #TEY330UNSPSC39121601UPC00783164181043

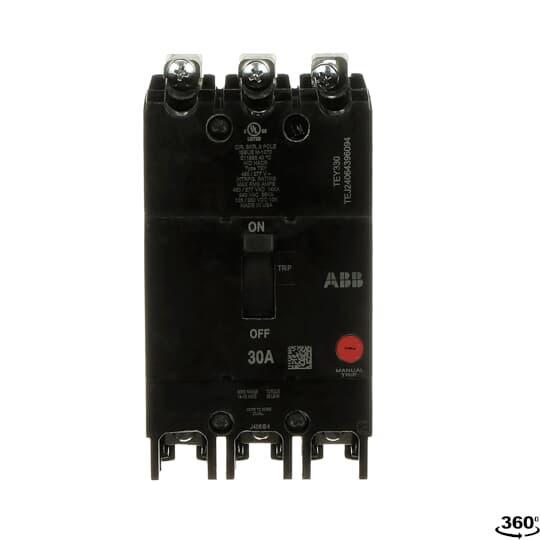

Image provided may only be a representation of final product and may include optional equipment
