Part Number # 9T51B0024
SKU # 2446415
Image Disclaimers Message
Brand: ABB
9T51B0024

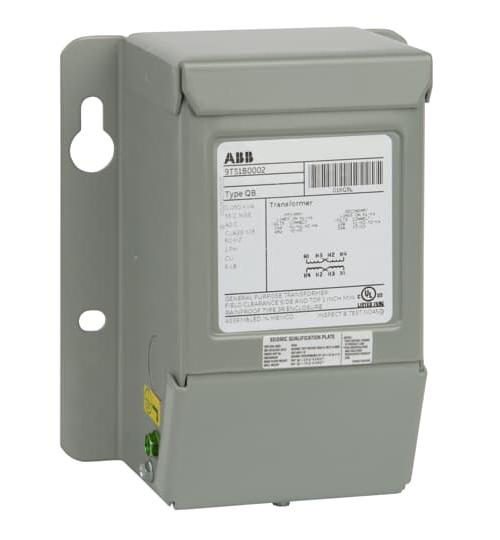

ABB 9T51B0024
Part Number # 9T51B0024
SKU # 2446415
$260.97 / Each
ABB 9T51B0024 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T51B0024 |
| SKU #: | 2446415 |
| Dimensions: | 5.12 in W x 6.38 in H |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 60 Hz |
| Insulation: | Class A |
| Phase: | 1 |
| Primary Voltage: | 120/240 VAC |
| Secondary Voltage: | 120/240 VAC |
| Series: | 9T51B |
| Temperature Rating (Degrees F): | 40 deg C |
| Type: | Dry Encapsulated Standard |
| Circuit type: | 6200 Frame |
| Connection type: | Wire Lead |
| Housing material: | Silicon Steel |
| Mounting type: | Wall |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121027 |
| UPC: | 00783173008355 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$260.97 / Each
Quantity:
ABB 9T51B0024
Brand: ABB
Part Number: 9T51B0024
Additional Description: ABB -9T51B0024 (N) 1C,0.1KVA,120X240-120/240,55C,3R,QB NON-CANCELABLE, NON-RETURNABLE
Catalog Description: ABB's QB single phase transformers feature encapsulated core and coils in a NEMA 3R nonventilated weatherproof enclosure. Knock outs provided on back and bottom. Mounting holes on side for easy access. Wiring compartment includes ground stud.
9T51B0024 Application
Indoor and Outdoor Applications9T51B0024 Includes
Ground Stud9T51B0024 Item Features
- These GE transformers feature an encapsulated core and coil in a NEMA 3R non-ventilated weatherproof enclosure
- Knockouts provided on back and bottom
- High grade silicon steel core
- Mounting holes on side for easy access
- Wiring compartment includes ground stud
- K1-factor rated transformer
- Class A insulation system
- No tap changer
- Core and coils are contained within a NEMA 3R non-ventilated weatherproof enclosure
- Copper windings
- Electrostatically unshielded
- Transformers are built to standard sound level
- 55 deg C temperature rise
- 105 deg C insulation temperature
9T51B0024 Standards
GSA Compliant|UL ListedSKU #2446415Part Number #9T51B0024UNSPSC39121027UPC00783173008355
