Part Number # 716418
SKU # 2448061
Image Disclaimers Message
716418
LUTZE 716418
Part Number # 716418
SKU # 2448061
$66.50 / Each
Typical price:$87.06 / Each
LUTZE 716418 Key Features
| Brand: | LUTZE |
|---|---|
| Part Number # : | 716418 |
| SKU #: | 2448061 |
| Amperage Rating: | 5 A |
| Indicating/Non-Indicating: | Indicating |
| Series: | LOCC-BOX |
| Terminal Type: | Spring |
| Type: | 1-Channel 1-Pin Switching |
| Color: | Gray |
| Country of origin: | CZ |
| Material: | PA6.6 |
| Mounting type: | DIN Rail |
| Manufacturer Name: | LUTZE Inc |
| UNSPSC: | MISC |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$66.50 / Each
Typical price:$87.06 / Each
Quantity:

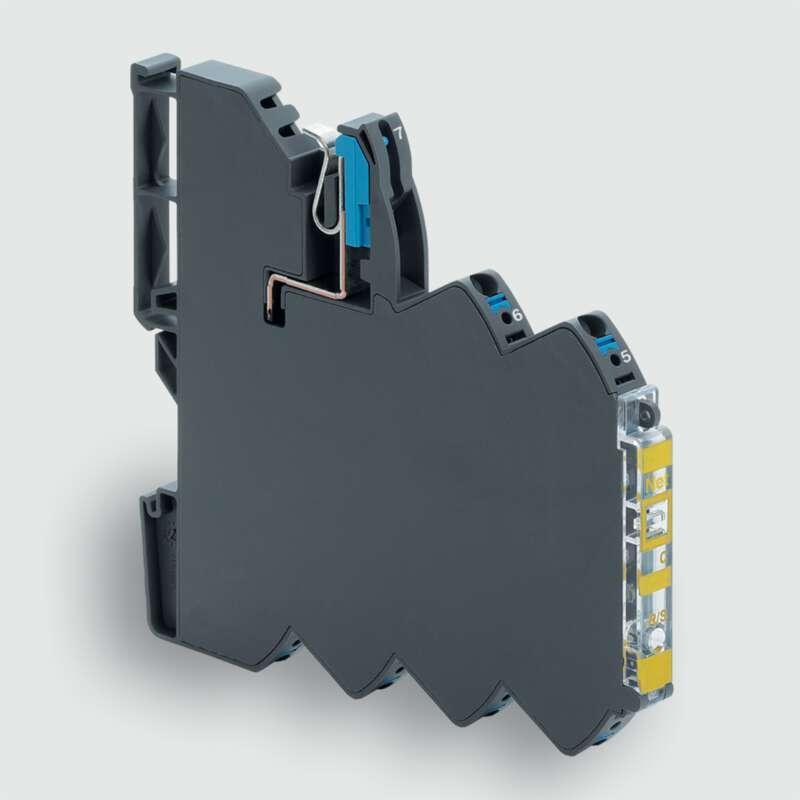

- LUTZE Electronic Fuse, 1-Channel 1-Pin Switching, Series: LOCC-BOX, Indicating, 5 A, 10 to 30 V DC, Spring Terminal, DIN Rail Mounting, MOSFET Element, PA6.6, Gray, 8.1 mm W x 116 mm D x 114.5 mm H Body
716418 Application
For industrial applications716418 Item Features
- Safety first when conventional circuit breakers and fuses are not reliable enough
- Adjustable current range (1 to 10 A)
- Adjustable characteristics - fast, medium, slow 1, slow 2, slow 3
- Output alarm signal at 90% of load setting
- Output trip alarm
- LED status indicator on/off/alarm
- Remote reset and remote on/off
- Independent of ambient temperature, no derating required
- Gateway communication capabilities for remote monitoring
716418 Standards
cULus E135145|EN 55022/60947-4-1/60950-1/61000/61131-1/2|UL 508SKU #2448061Part Number #716418UNSPSCMISCUPC
