Part Number # TEY120
SKU # 2449317
ABB TEY120 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TEY120 |
| SKU #: | 2449317 |
| Amperage Rating: | 20 A |
| Dimensions: | 5-1/4 in H x 1 in W x 3-1/16 in D |
| Frame: | TEY |
| Interrupt Rating: | 14 kA |
| Number of Poles: | 1 |
| Phase: | 1 |
| Series: | Q-Line |
| Temperature Rating (Degrees F): | 40 deg C |
| Trip Type: | LI/Non-Interchangeable, Thermal Magnetic |
| Wire Size: | 14 to 8 kcmil, 12 to 8 kcmil |
| Connection type: | Load Lug |
| Mounting type: | Bolted-On |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121601 |
| UPC: | 00783164180916 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

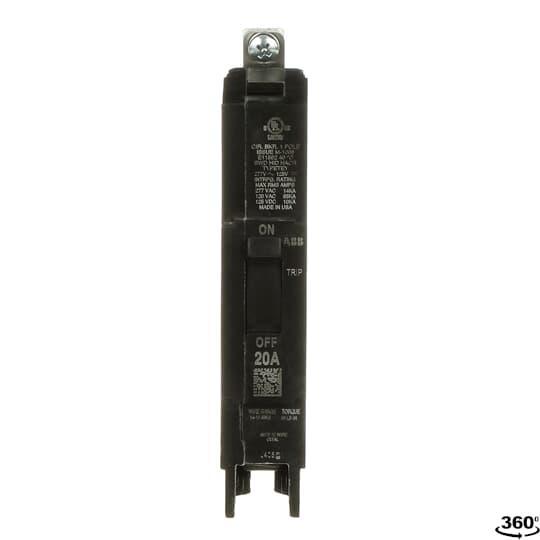

ABB TEY120
Brand: ABB
Part Number: TEY120
Additional Description: ABB -TEY120 TEY 1 POLE 20 AMP
Catalog Description: The TEY is a one-inch wide per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 Vac systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. TEY breakers are available in 1, 2, and 3 pole versions and can be ordered with auxiliary contact and shunt trip accessories. TEY 1 POLE 20 AMP
TEY120 Application
Industrial, Electrical Distribution and Control ApplicationsTEY120 Includes
Integral Copper/Aluminum Load LugTEY120 Item Features
- Standard continuous current rated
- EY GO schedule
- UL listed for HID (high intensity discharge), all 50 A or less
- HACR, high intensity discharge (HID) rated special marking
- 65 kA at 120 VAC, 14 kA at 120/240/277 VAC interrupt rating
- Suitable for reverse feed
TEY120 Standards
E11592SKU #2449317Part Number #TEY120UNSPSC39121601UPC00783164180916
Image provided may only be a representation of final product and may include optional equipment
