Part Number # TEY130
SKU # 2449318
Image Disclaimers Message

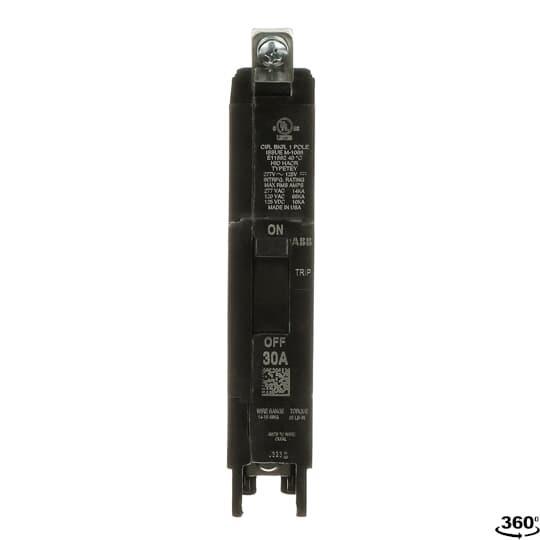

ABB TEY130 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TEY130 |
| SKU #: | 2449318 |
| Actuator Type: | Pivot/Toggle Handle |
| Amperage Rating: | 30 A |
| Dimensions: | 5-1/4 in H x 1 in W x 3-1/16 in D |
| Frame: | TEY |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 65/14 kA |
| Number of Poles: | 1 |
| Phase: | 1 |
| Temperature Rating (Degrees F): | 40 deg C |
| Trip Type: | LI/Non-Interchangeable Thermal Magnetic, Thermal Magnetic |
| Type: | Compact |
| Wire Size: | 14 to 2/0 AWG |
| Connection type: | Load Lug |
| Material: | Plastic |
| Mounting type: | Bolted-On |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121601 |
| UPC: | 00783164180930 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$145.85 / Each
Quantity:
- GE Lighting Panel Circuit Breaker, Compact, 120/240/277 V AC, 30 A, 50/60 Hz Frequency, 65/14 kA Interrupt, TEY Frame, Thermal Magnetic Trip, 1 Pole, 1 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 14 to 2/0 AWG Wire, Bolted-On Mounting, 40 deg C, 5-1/4 in H x 1 in W x 3-1/16 in D Dimensions, Plastic
TEY130 Application
Switchboards, Motor Control Centers, Lighting, Power and Customized Control Panelboards and Electrical Distribution ApplicationsTEY130 Item Features
- Ambient compensated
- Multiple short circuit tiers
- Cost effective protection
- Mounting base for unit mount installations
- 14 kA at 120/240 VAC, 14 kA at 240 VAC, 14 kA at 277 VAC, 65 kA at 120 VAC interrupt rating
TEY130 Standards
UL File No. E11592|cUL File No. E11592|CSA File No. LR57114|HACR Rated|HID RatedSKU #2449318Part Number #TEY130UNSPSC39121601UPC00783164180930
