Part Number # LGL36600U53X
SKU # 2450264
Image Disclaimers Message
Schneider Electric LGL36600U53X Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LGL36600U53X |
| SKU #: | 2450264 |
| Amperage Rating: | 600 A |
| Dimensions: | 6.61 in L x 5.5 in W x 11.3 in H |
| Enclosure Type: | NEMA AB1 |
| Frame: | L |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 18 kA |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | 122 deg F |
| Trip Type: | Electronic |
| Wire Size: | (1) 2/0 AWG to 500 kcmil Al, (1) 12/0 AWG to 600 kcmil Cu |
| Connection type: | Lug Line/Load |
| Country of origin: | US |
| Mounting type: | Backplate/DIN Rail/Flush |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121601 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

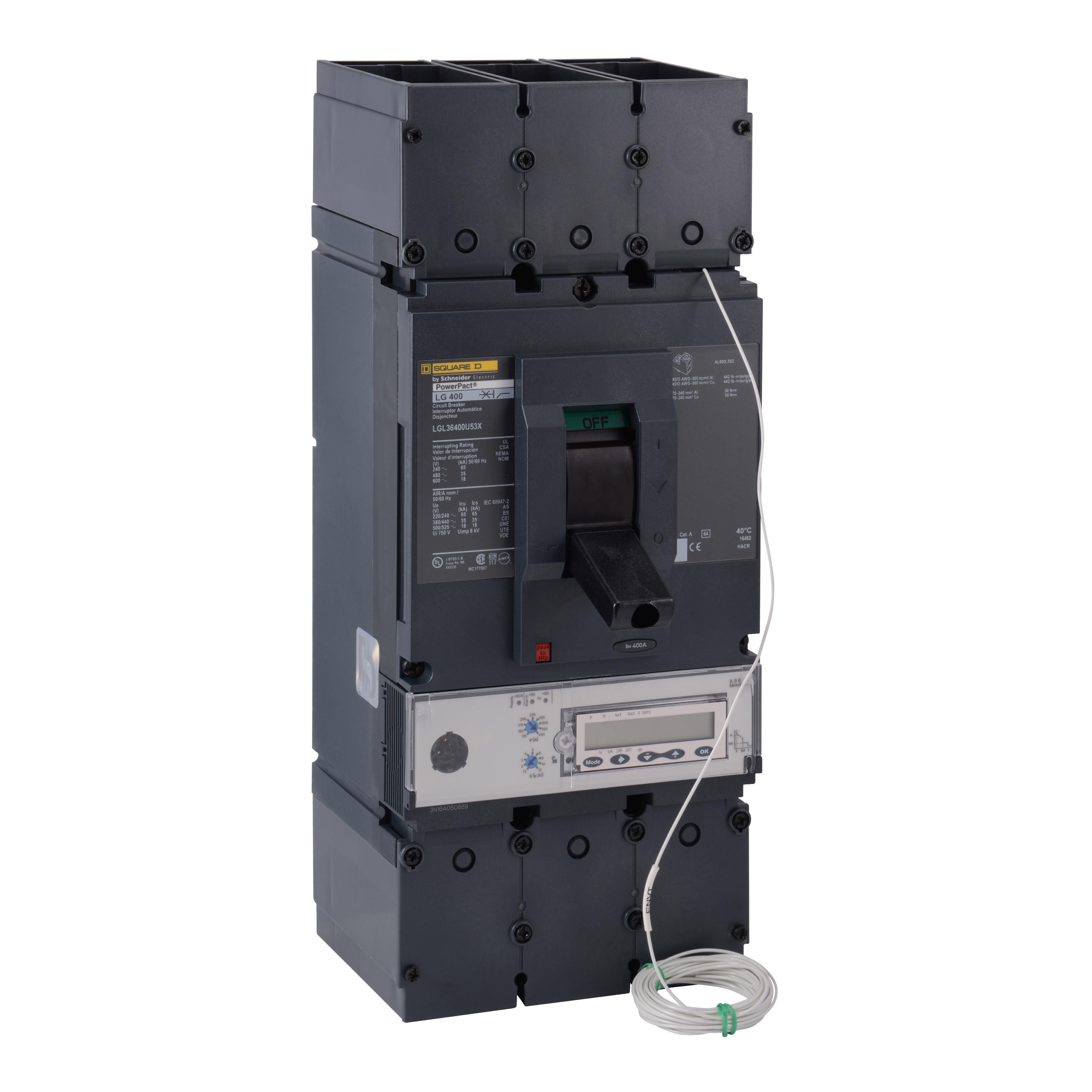

Schneider Electric LGL36600U53X
Brand: Schneider Electric
Part Number: LGL36600U53X
Additional Description: SQD -LGL36600U53X (S) MOLDED CASE CIRCUIT BREAKER 600V 600A
LGL36600U53X Application
Construction, Commercial Buildings, Oil and Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets ApplicationsLGL36600U53X Item Features
- Common accessories across the range of PowerPact Molded Case Circuit Breakers allow users to make late specification changes
- A wide range of field installable accessories allows customers to reduce inventory without sacrificing flexibility
- Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications
- IEC style rotary operating handles
- NEMA 9421 door mounted rotary operating mechanism
- NEMA 9422 flange mounted operating mechanism in two styles - bracket mounted or cable operated
- Equipped with a unique snap-in terminal design that makes converting between busbar and lug options easy
- Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs and lug shields
- Worldwide availability with unique global part numbers
- Flexible and simple offer, with proven performance
- Direct access to energy metering and energy efficiency thanks to the Micrologic control units
- https://www.youtube.com/embed/kWQ8eqRwgrk
LGL36600U53X Standards
CE Certified|CSA C22.2 File No. 5|CCC Certified|IEC 60947-2|Green Premium Listed|NMX J-266|RoHS Compliant|REACH Compliant|UL 489|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2450264Part Number #LGL36600U53XUNSPSC39121601UPC
