Part Number # 3LD3230-0TK13
SKU # 2450379
Image Disclaimers Message
Brand: Siemens

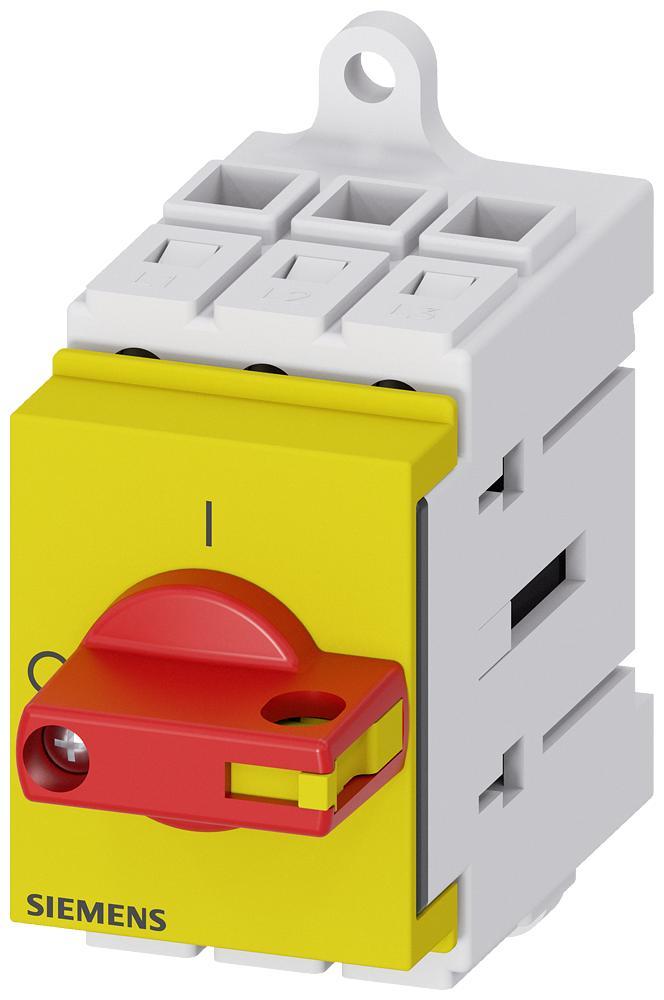

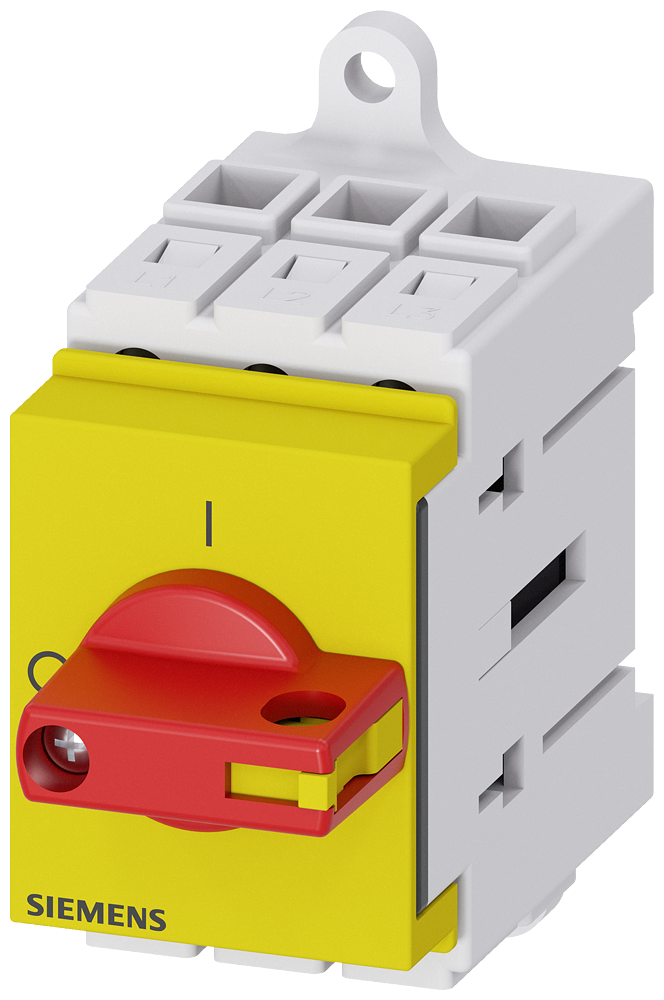

3LD3230-0TK13
Siemens 3LD3230-0TK13
Part Number # 3LD3230-0TK13
SKU # 2450379
$104.26 / Each
Typical price:$131.50 / Each
Siemens 3LD3230-0TK13 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3LD3230-0TK13 |
| SKU #: | 2450379 |
| Actuator Type: | Knob/Selector Switch |
| Amperage Rating: | 32 A |
| Dimensions: | 36 mm W x 77 mm D x 60 mm H |
| Enclosure Type: | IP40 |
| Frequency Rating: | 50/60 Hz |
| Horsepower: | 20 hp |
| Number of Poles: | 3 |
| Series: | 3LD3 |
| Short Circuit Current Rating (kA): | 5/6 kA |
| Temperature Rating (Degrees F): | -25 to 55 deg C |
| Terminal Type: | Box |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Fixed |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122233 |
| UPC: | 00195125097506 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$104.26 / Each
Typical price:$131.50 / Each
Quantity:
- Sentron Load Switch Disconnector, Series: 3LD3, 600 V AC, 32 A, 20 hp, 50/60 Hz Frequency, 3 Pole, 5/6 kA Short Circuit, Knob/Selector Switch Actuator, IP40 Enclosure, DIN Rail/Fixed Mounting, Box Terminal, -25 to 55 deg C, 36 mm W x 77 mm D x 60 mm H, Red/Yellow
3LD3230-0TK13 Application
For switching machines, switching 3 ph motors and other loads during maintenance and repair work, main switch, emergency off switch, safety switch3LD3230-0TK13 Includes
Terminal Covers for the Infeed Side3LD3230-0TK13 Item Features
- Installation in distribution boards
- Basic switch with selector knob and masking plate
- Without direct operating mechanism and auxiliary switch
- 20 hp at 480 VAC/600 VAC
- 5 kA short time withstand current/6 kA conditional short circuit current
3LD3230-0TK13 Standards
CCC Certified|CE Certified|EAC Certified|ECCN Approved|IEC 60947-1/60947-3|REACH Article 33|RoHS 2011/65/EU and 2015/863/EU|UL 508/60947-4-1|WEEE 2012/19/EUSKU #2450379Part Number #3LD3230-0TK13UNSPSC39122233UPC00195125097506
