Part Number # TEYD3030B
SKU # 2450644
ABB TEYD3030B Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TEYD3030B |
| SKU #: | 2450644 |
| Actuator Type: | Pivot/Toggle Handle |
| Amperage Rating: | 30 A |
| Dimensions: | 3 in W x 3-1/16 in D x 5-1/4 in H |
| Frame: | TEYD |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 25/65 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Series: | TEYD |
| Temperature Rating (Degrees F): | 40 deg C |
| Trip Type: | LI/Non-Interchangeable/Thermal Magnetic, Thermal Magnetic |
| Type: | Type TEY Compact |
| Wire Size: | 10 to 4 AWG |
| Connection type: | Load Lug |
| Material: | Plastic |
| Mounting type: | Bolted-On |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121601 |
| UPC: | 00783164461749 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB TEYD3030B
Brand: ABB
Part Number: TEYD3030B
Additional Description: ABB -TEYD3030B TEYX CIRCUIT BREAKER 3P 30A
Catalog Description: The TEY is a one-inch wide per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 Vac systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. TEYD breakers are available in 1, 2, and 3 pole versions 2&3 pole versions can be ordered with auxiliary contact, shunt trip, undervoltage release, or bell alarm accessories. TEYx Circuit Breaker 3P 30A
TEYD3030B Application
Health Care Facilities, Elevators, Emergency Systems and Legally Required Standby Systems Such As Generators and Many Other Critical Load Scenarios, Industries, Electrical Distribution and Control ApplicationsTEYD3030B Includes
Integral Copper/Aluminum Load LugTEYD3030B Item Features
- Ambient compensated
- Multiple short circuit tiers
- Cost effective protection
- Mounting base for unit mount installations
- 65 kA at 120/240 VAC, 65 kA at 240 VAC, 25 kA at 480Y/277 VAC interrupt rating
TEYD3030B Standards
cUL Listed File No. E11592|UL Listed File No. E11592SKU #2450644Part Number #TEYD3030BUNSPSC39121601UPC00783164461749

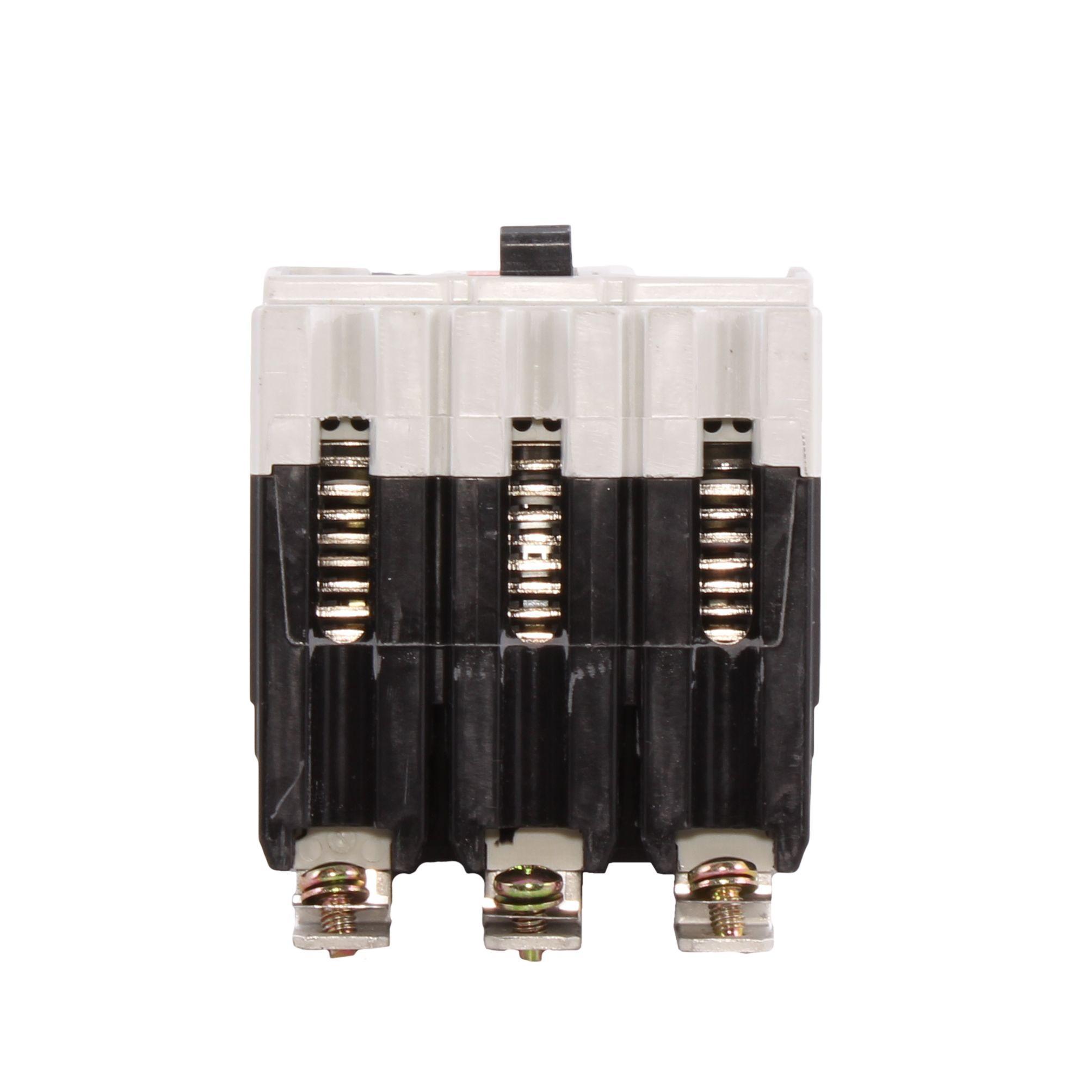

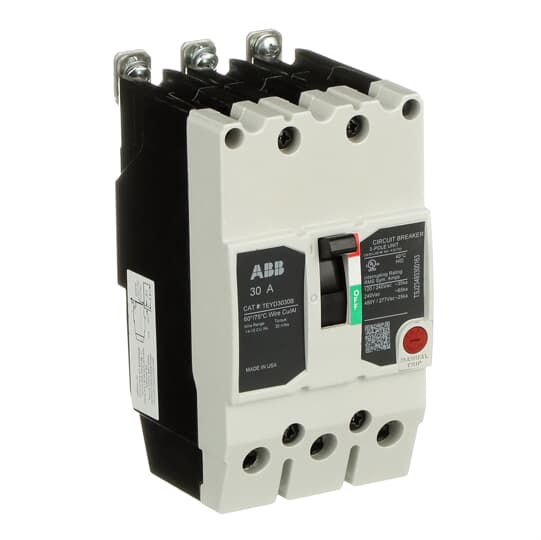

Image provided may only be a representation of final product and may include optional equipment
