Part Number # 3RT20241AT60
SKU # 2451270
3RT20241AT60
Siemens 3RT20241AT60
Part Number # 3RT20241AT60
SKU # 2451270
$87.60 / Each
Typical price:$219.00 / Each
Siemens 3RT20241AT60 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20241AT60 |
| SKU #: | 2451270 |
| Coil Power Rating: | 7.2 VA Holding/73 VA Pick Up (AC) |
| Coil Voltage: | 600 V AC |
| Contact Configuration: | 3NO |
| Dimensions: | 45 mm W x 97 mm D x 85 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 60 Hz |
| Number of Auxiliary Contacts: | 2 |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -25 to 60 deg C |
| Size: | S0 |
| Terminal Type: | Screw |
| Type: | Standard |
| Wattage: | 3 kW at 230 V AC/5.5 kW at 400 V AC/5.5 kW at 500 V AC/7.5 kW at 690 V AC |
| Country of origin: | DE |
| Mounting type: | Threaded/Snap-On/DIN Rail |
| Power factor: | 0.28/0.76 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00804766950957 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$87.60 / Each
Typical price:$219.00 / Each
Quantity:
- Siemens SIRIUS, 3RT20241AT60, Contactor, Standard, 600 V AC Coil, 12 A Maximum Load Current, 7.2 VA Holding/73 VA Pick Up (AC) Coil, 3 Pole, 60 Hz Frequency, 3 kW at 230 V AC/5.5 kW at 400 V AC/5.5 kW at 500 V AC/7.5 kW at 690 V AC Wattage, 3NO Contact Configuration, 2 Auxiliary Contacts, Power Factor: 0.28/0.76, S0 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Threaded/Snap-On/DIN Rail Mounting, 45 mm W x 97 mm D x 85 mm H Dimensions
3RT20241AT60 Application
For switching motors3RT20241AT60 Item Features
- 73 VA at 60 Hz (pick-up), 7.2 VA at 60 Hz (holding) magnet coil at AC
- 0.28 at 60 Hz (holding), 0.76 at 60 Hz (closing) power factor
- https://www.youtube.com/watch?v=lvThW3cHXnA\u200b|https://www.youtube.com/watch?v=TjGCthgMlXo|https://www.youtube.com/watch?v=y_qB1VuTgj8|https://www.youtube.com/watch?v=Nxe0AyVN99w|https://www.youtube.com/watch?v=7q_ZbO-LKd8|https://www.youtube.com/watch?v=4AdAIl-ElSk
3RT20241AT60 Standards
CE EG-Knof|EAC Compliant|RoHS Compliant|UL Listed|EAC Approved|ABS Approved|Bureau Veritas CertifiedLRS Listed|PRS Certified|RINA Certified|RMRS Approved|DNV-GL Approved|VDE ApprovedSKU #2451270Part Number #3RT20241AT60UNSPSC39121529UPC00804766950957

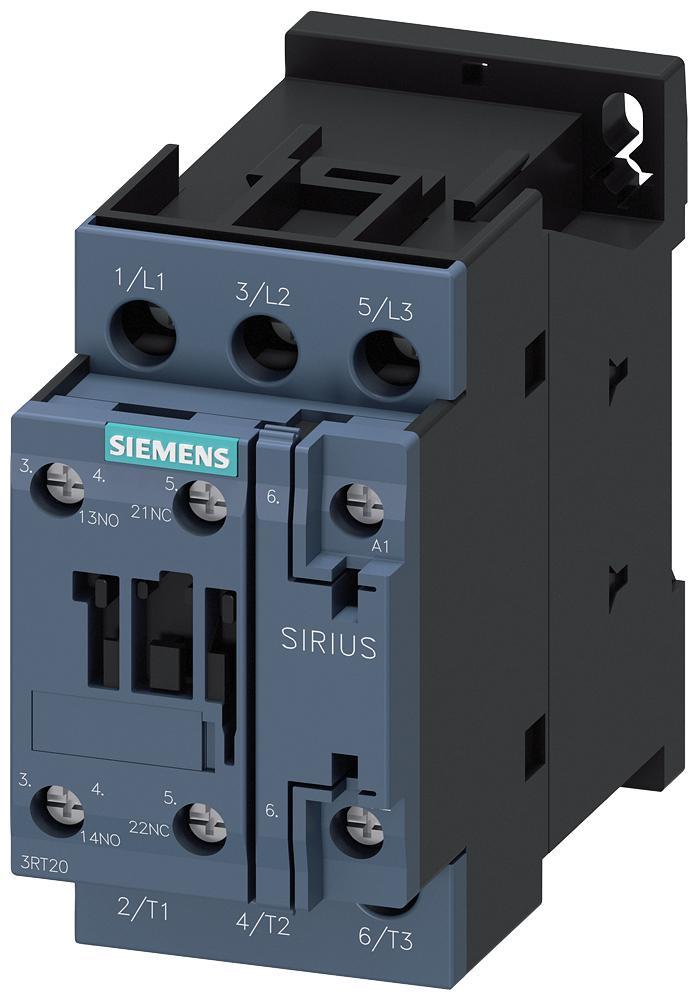

Image provided may only be a representation of final product and may include optional equipment
