Part Number # 9T58K0050G38
SKU # 2451320
ABB 9T58K0050G38 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K0050G38 |
| SKU #: | 2451320 |
| Dimensions: | 4.56 in W x 3.9 in H |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 60 Hz |
| Insulation: | IS-12 |
| Phase: | 1 |
| Primary Voltage: | 230/460 V AC, 230/460 VAC |
| Secondary Voltage: | 115 V AC, 115 VAC |
| Series: | 9T58K |
| Temperature Rating (Degrees F): | 80 deg C |
| Type: | Dry Encapsulated Small Power |
| Connection type: | Pressure Plate/Terminal Board |
| Mounting type: | Panel |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173132012 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 9T58K0050G38
Brand: ABB
Part Number: 9T58K0050G38
Additional Description: ABB -9T58K0050G38 (N) 1C,0.5KVA,230X460-115,80C,C&C,2CCMI G,IP g,IP NON-CANCELABLE, NON-RETURNABLE
Catalog Description: ABB's Machine tool core and coil transformers are isolation transformers designed to provide a high degree of secondary voltage stability (regulation) during a brief period of overload condition (also referred to as “inrush current”). They are ideal for applications where power regulation and space optimization are critical. Machine tool core and coil transformers feature welded cores to deliver outstanding performance, long life, and quiet operation.
9T58K0050G38 Application
General Purpose, Industrial Control, Machine Tool, Panelboard, Electrical Distribution and Control Applications9T58K0050G38 Item Features
- Rugged, high impact plastic terminal board
- Fully encapsulated coil is impervious to moisture
- Pressure plate terminals ensure secure connections
- Terminal board is anchored in the epoxy for greater reliability
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Copper windings
- Flexible design allows input or output voltage to match any application
9T58K0050G38 Standards
CE Marking|CSA C22.2 No. 66/3272|cUL Listed|UL 5085 File No. E2739SKU #2451320Part Number #9T58K0050G38UNSPSC39121026UPC00783173132012

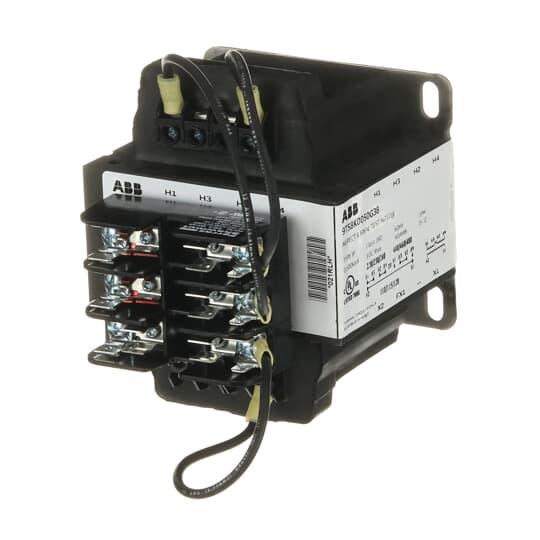

Image provided may only be a representation of final product and may include optional equipment
