Part Number # THQL2120GFT
SKU # 2451546
Image Disclaimers Message

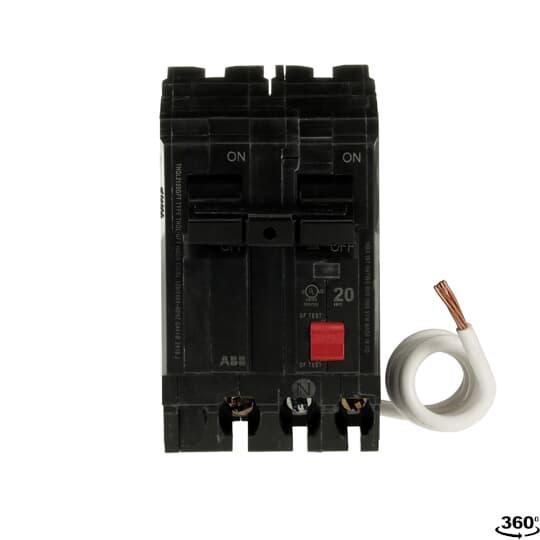

ABB THQL2120GFT Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | THQL2120GFT |
| SKU #: | 2451546 |
| Amperage Rating: | 20 A |
| Dimensions: | 3-9/32 in H x 2 in W x 2-3/8 in D |
| Frame: | Q-Line |
| Interrupt Rating: | 10 kA |
| Number of Poles: | 2 |
| Phase: | 1 |
| Trip Range: | 5 mA |
| Trip Type: | Non-Interchangeable/LIG, Thermal Magnetic |
| Type: | Type THQL Model 3 Self-Test |
| Wire Size: | 14 to 8 AWG Cu, 12 to 8 AWG Al |
| Mounting type: | Plug-In |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121601 |
| UPC: | 00783164485349 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$760.69 / Each
Quantity:
- GE Q-Line Ground Fault Circuit Breaker, Type THQL Model 3 Self-Test, 120/240 V AC, 20 A, 10 kA Interrupt, Q-Line Frame, Thermal Magnetic Trip, 5 mA Trip, 2 Pole, 1 ph, 14 to 8 AWG Cu, 12 to 8 AWG Al Wire, Plug-In Mounting, 3-9/32 in H x 2 in W x 2-3/8 in D Dimensions
THQL2120GFT Application
Electrical Distribution and Control ApplicationsTHQL2120GFT Item Features
- The national electrical code requires GFCI protection of receptacles located outdoors, in bathrooms, garages and spa areas
- This applies not only to new construction, but also to existing homes
- When an electrical outlet is replaced in a location that requires ground fault protection, the new outlet must be GFCI protected, according to the NEC
- The GFCI circuit interrupter provides protection against overloads, short circuits and ground faults
- It detects very low levels of electrical current leakage (ground faults) and acts quickly to shut off power, preventing serious shock
- Push button test validates the ground fault detection capability of the breaker
- Quick-make, quick-break mechanism
- Fixed long time and fixed instantaneous trip function
- Suitable for reverse feed
- Standard continuous current rated
- Feeder plug-in circuit breakers
- 60 deg C/75 deg F conductor rating
- Box type terminals
- Multi-pole circuit breakers incorporate internal common trip
THQL2120GFT Standards
E51075SKU #2451546Part Number #THQL2120GFTUNSPSC39121601UPC00783164485349
