Part Number # THQL21125
SKU # 2451924
Image Disclaimers Message
ABB THQL21125 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | THQL21125 |
| SKU #: | 2451924 |
| Actuator Type: | Pivot/Toggle Handle |
| Amperage Rating: | 125 A |
| Dimensions: | 3-9/32 in H x 2 in W x 2-3/8 in D |
| Frame: | Q-Line |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 10 kA |
| Number of Poles: | 2 |
| Phase: | 1 |
| Temperature Rating (Degrees F): | 10 to 50 deg C |
| Trip Type: | Non-Interchangeable Thermal Magnetic/LI, Thermal Magnetic |
| Type: | Type THQL Compact |
| Wire Size: | 2 to 2/0 AWG |
| Connection type: | Load Lug |
| Material: | Plastic |
| Mounting type: | Plug-In |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121601 |
| UPC: | 00783164081909 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$727.06 / Each
Quantity:

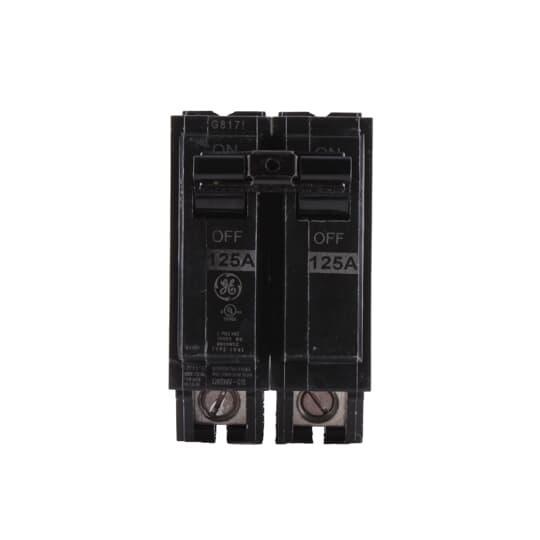

- GE Q-Line Molded Case Circuit Breaker, Type THQL Compact, 120/240 V AC, 125 A, 50/60 Hz Frequency, 10 kA Interrupt, Q-Line Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 2 to 2/0 AWG Wire, Plug-In Mounting, 10 to 50 deg C, 3-9/32 in H x 2 in W x 2-3/8 in D Dimensions, Plastic
THQL21125 Application
Residential, Commercial, Electrical Distribution and Control ApplicationsTHQL21125 Item Features
- Molded case is molded from high mechanical and high dielectric strength engineered plastic
- Trip indication is shown by handle position midway between ON and off to reset the trip mechanism, move the handle to extreme off then to ON position
- Quick-make, quick-break, trip-free mechanism minimizes arcing during breaker operation, contacts cannot be teased into position
- Trip-free mechanism is independent of manual handle control, the breaker trips under short circuit or overload, even though the operating handle is held in on position
- VERIFIER "twist-to-trip" and push-to-trip mechanically simulates over current tripping through actuation of linkages not operated by the on-off handle
- Common trip bar assures instant disconnect of all conductors when an overload or short circuit occurs on any one conductor in the circuit or an accessory trip device operates
- Silver alloy contacts combine the conductive properties of silver with other elements for clean, positive electrical contacting, pitting and burning are minimized for longer contact life
- Arc chutes of heat absorbing, insulating material and metal grid plates quickly extinguish arcs
- UL listed lugs for copper or aluminum cable, at full frame rating, easy access and simple, straight in wiring
- 10 kA at 120 VAC, 10 kA at 120/240 VAC interrupt rating
THQL21125 Standards
E11592SKU #2451924Part Number #THQL21125UNSPSC39121601UPC00783164081909
