Part Number # 9T58K1802
SKU # 2452483
ABB 9T58K1802 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K1802 |
| SKU #: | 2452483 |
| Dimensions: | 2.68 in H x 3.06 in W x 3.25 in D |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 60 Hz |
| Phase: | 1 |
| Primary Voltage: | 240/480 V AC, 240/480 VAC |
| Secondary Voltage: | 120/240 V AC, 120/240 VAC |
| Temperature Rating (Degrees F): | 40 deg C |
| Type: | Fully Encapsulated |
| Housing material: | Plastic |
| Mounting type: | Panel |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173118597 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$111.01 / Each
Quantity:
ABB 9T58K1802
Brand: ABB
Part Number: 9T58K1802
Additional Description: ABB -9T58K1802 (N) 1C,0.05KVA,240X480-120/240,55C,C&C, LO,IP NON-CANCELABLE, NON-RETURNABLE
9T58K1802 Application
For machine tool, industrial control, panelboard and general purpose applications9T58K1802 Item Features
- Copper windings
- Electro statically unshielded
- Transformers are built to standard sound level
- 6100 frame
- 55 deg C temperature rise
- K1-Factor rated transformer
- Class A Insulation system
- Fully encapsulated coil is impervious to moisture
- Pressure plate terminal ensure secure connections
- Terminal board is anchored in the epoxy for greater reliability
- Wide variety of fusing options
- Rugged, high-impact plastic terminal board
- Full head NO 8 brass screws assure quick, easy terminations with maximum connection integrity
- Flexible design allows input or output voltage to match any application
- Type IP and open core and coil power control transformer
- 105 deg C insulation temperature, leads out termina
9T58K1802 Standards
cUL Listed|UL 506|UL File No. E2739|GSA CompliantSKU #2452483Part Number #9T58K1802UNSPSC39121026UPC00783173118597

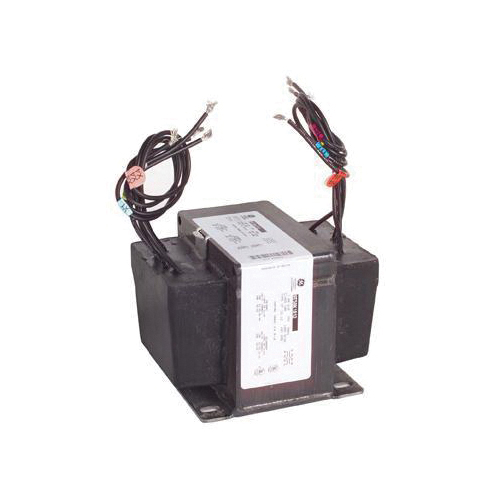

Image provided may only be a representation of final product and may include optional equipment
