Part Number # PGF36100U31A
SKU # 2452536
Image Disclaimers Message
Brand: Square D
PGF36100U31A

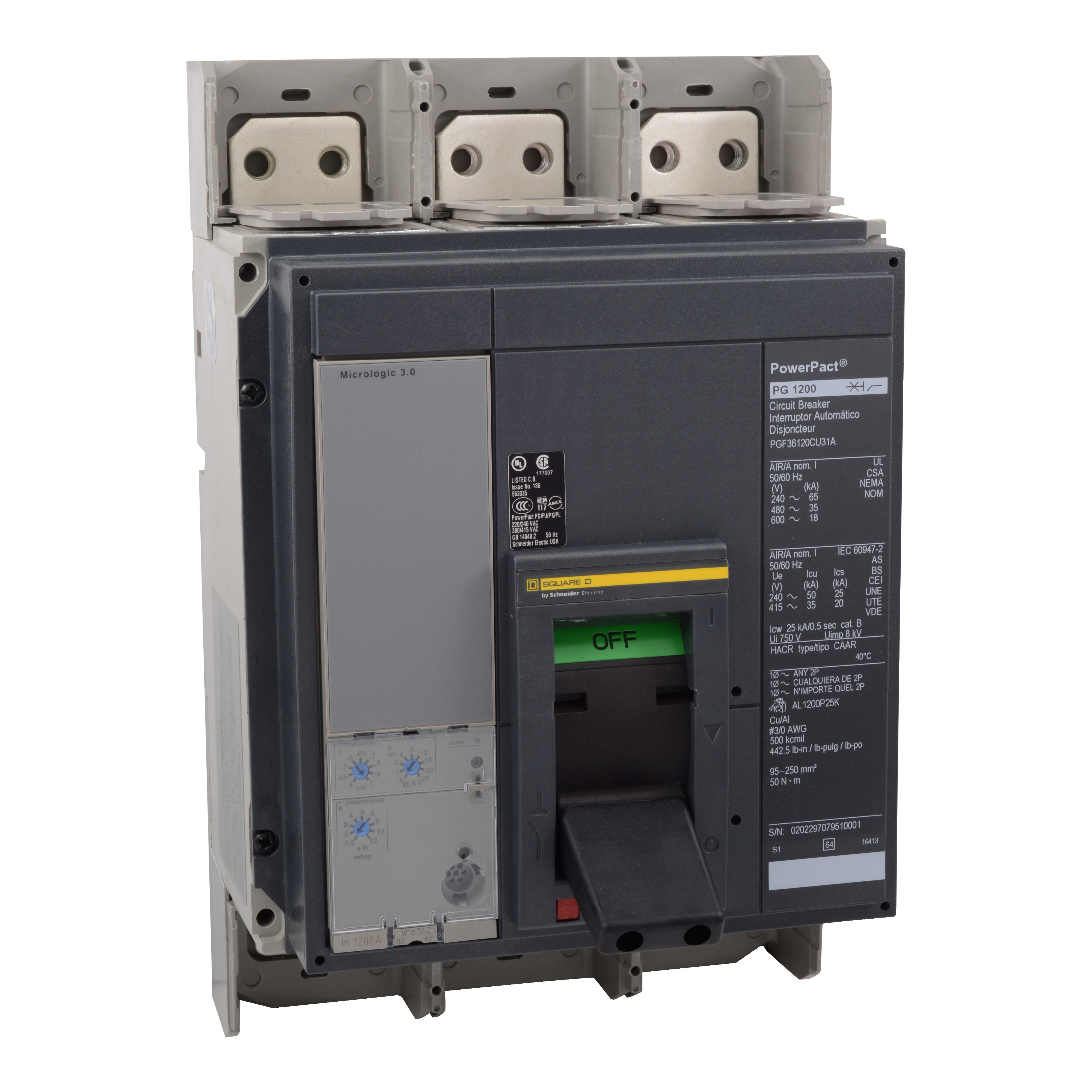

Square D PGF36100U31A
Part Number # PGF36100U31A
SKU # 2452536
$16270.88 / Each
Typical price:$19836.00 / Each
Square D PGF36100U31A Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | PGF36100U31A |
| SKU #: | 2452536 |
| Amperage Rating: | 1000 A |
| Dimensions: | 16.16 in H x 8.27 in W x 8.05 in D |
| Enclosure Type: | NEMA AB1 |
| Frame: | P |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 104 deg F |
| Trip Range: | 1000 A |
| Trip Type: | Electronic |
| Type: | Type PGF |
| Connection type: | Line/Load Busbar |
| Country of origin: | US |
| Mounting type: | Bolt-On/Busbar/Unit |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121601 |
| UPC: | 00785901616771 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$16270.88 / Each
Typical price:$19836.00 / Each
Quantity:
Square D PGF36100U31A
Brand: Square D
Part Number: PGF36100U31A
Additional Description: SQD -PGF36100U31A MOLDED CASE CIRCUIT BREAKER 600V 1000A
Catalog Description: Circuit breaker, PowerPacT P, 1000A, 3 pole, 600VAC, 18kA, busbar, Micrologic 3.0, 80%
PGF36100U31A Application
Construction, Commercial Buildings, Oil and Gas, Marine, Industrial Buildings, Control and Monitoring, Water Wastewater, Healthcare Facilities, Data Centers and Educational Campuses ApplicationsPGF36100U31A Item Features
- Common mounting holes, handle locations and trim dimensions across the range allow design standardization for PowerPact and P-frame circuit breakers
- Common accessories across the range of PowerPact molded case circuit breakers allow users to make late specification changes
- A wide range of field installable accessories allows customers to reduce inventory without sacrificing flexibility
- Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications
PGF36100U31A Standards
UL 489|CSA Certified|NMX Certified|IEC Certified|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|RoHS CompliantSKU #2452536Part Number #PGF36100U31AUNSPSC39121601UPC00785901616771
