Part Number # SH30702P02F2000
SKU # 2453391
Image Disclaimers Message
SH30702P02F2000

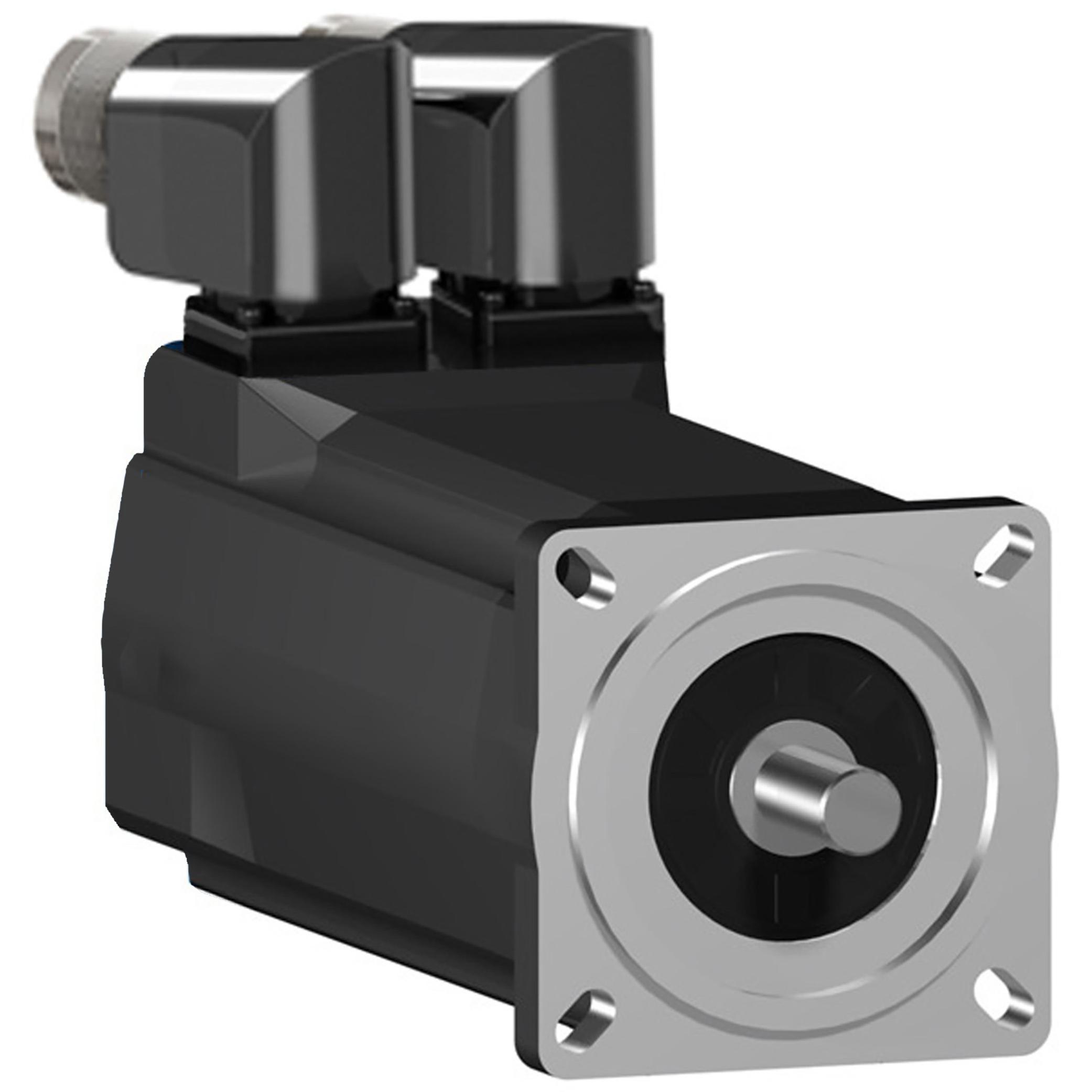

Schneider Electric SH30702P02F2000
Part Number # SH30702P02F2000
SKU # 2453391
$2387.66 / Each
Schneider Electric SH30702P02F2000 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | SH30702P02F2000 |
| SKU #: | 2453391 |
| Amperage Rating: | 11.8 A |
| Dimensions: | 2.76 in W x 8.39 in D x 4.39 in H |
| Enclosure Type: | IP54/IP65 |
| Horsepower: | 1.6 hp |
| Series: | SH3 070 |
| Shaft Size: | 0.43 in Dia x 0.91 in L |
| Special Features: | Synchronous Permanent Magnet AC Motors |
| Speed: | 8000 rpm |
| Temperature Rating (Degrees F): | -4 to 104 deg F |
| Torque Rating: | 19.03 to 15.93 in-lbf |
| Type: | 3-Phase Multiturn Smooth Shaft End Natural Convection |
| Country of origin: | US |
| Insulation class: | Class F |
| Mounting type: | Flange |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 26101205 |
| UPC: | 03606485295992 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2387.66 / Each
Quantity:
Schneider Electric SH30702P02F2000
Brand: Schneider Electric
Part Number: SH30702P02F2000
Additional Description: SQD -SH30702P02F2000 SH3 MOTOR 070.2 mlt brk ang IP54
Catalog Description: servo motor SH3 070 2,04Nm,nokey,multi,brake,90°conn.IP54/IP65,8k RPM
SH30702P02F2000 Application
General Machine Control, Packaging Machine Automation and Handling ApplicationsSH30702P02F2000 Item Features
- Overload capacity - high peak current (up to 4X the continuous current)
- Increases the range of movement
- Power density - the compact size of the servo drives offers maximum efficiency in a small space
- External braking resistors, when the Servo Motor has to be braked frequently
- Line chokes for improved protection against over voltages to reduce harmonic distortion of the current
- Additional EMC input filters to reduce conducted emissions on the line supply below the limits of standard IEC/EN 61800-3 edition 2, category C2 or C3
- Without key
- 19.03 in-lbf at 115 V 3 ph, 18.59 in-lbf at 230 V 3 ph, 16.82 in-lbf at 400 V 3 ph and 1.8 N-m at 480 V 3 ph
SH30702P02F2000 Standards
CE Certified|ECCN: EAR99|EN/IEC 60034-5|Green Premium Listed|REACH Compliant|RoHS Compliant|UL 1004|WEEE Certified|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.govSKU #2453391Part Number #SH30702P02F2000UNSPSC26101205UPC03606485295992
