Part Number # BRS397H360ABA
SKU # 2453547
Image Disclaimers Message
BRS397H360ABA

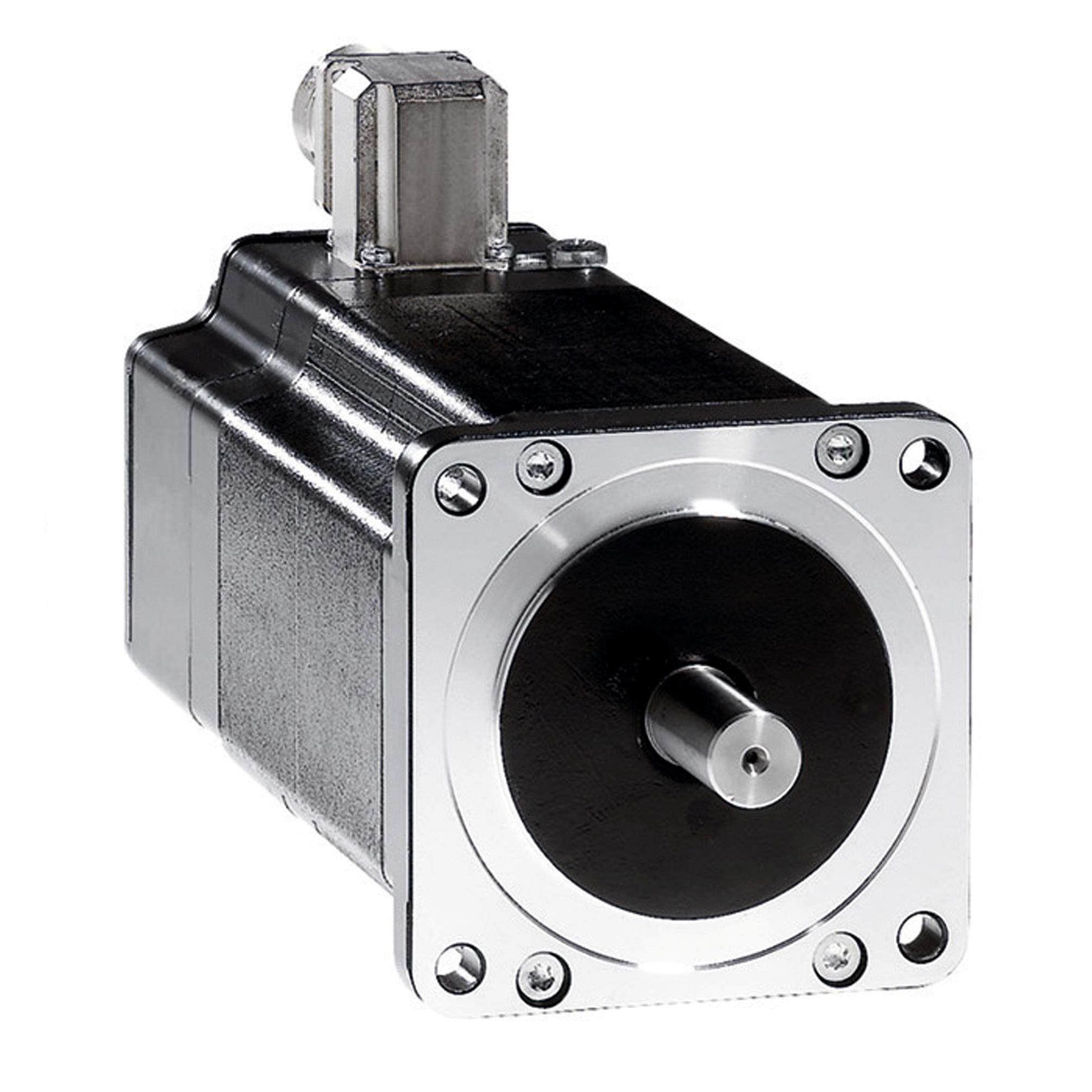

Schneider Electric BRS397H360ABA
Part Number # BRS397H360ABA
SKU # 2453547
$450.51 / Each
Schneider Electric BRS397H360ABA Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | BRS397H360ABA |
| SKU #: | 2453547 |
| Amperage Rating: | 5.8 A |
| Application Type: | 3-phase stepper motor |
| Enclosure Type: | IP41/IP56 |
| Frequency Rating: | 5 kHz |
| Phase: | 3 |
| Series: | BRS |
| Shaft Size: | 12 mm |
| Speed: | 3000 rpm |
| Temperature Rating (Degrees F): | -13 to 104 deg F |
| Torque Rating: | 2.26 N-m |
| Type: | Motion Control Motor |
| Country of origin: | DE |
| Mounting type: | Flange |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 26101205 |
| UPC: | 03606485152608 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$450.51 / Each
Quantity:
Schneider Electric BRS397H360ABA
Brand: Schneider Electric
Part Number: BRS397H360ABA
Additional Description: SQD -BRS397H360ABA (N) VRDM397/50LHB OOIP41 OO D2O 60 OOOOOOO NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 3-phase stepper motor - 2.26 Nm - shaft Ø 12mm - L=68mm - w/o brake - term box
BRS397H360ABA Item Features
- Forget about encoder systems and commissioning software
- A compact drive and a high-accuracy motor included in the package
- Reference values are preset and monitored by a higher-level PLC or a Schneider Electric motion controller
- 3-phase stepper motors stand for precision, power and sturdiness
- The Lexium SD3 require very little space in the control cabinet
- Compact dimensions (H x W x D: 145 mm x 72 mm x 140 mm)
- The price is as compact as its dimensions
- Two different power classes, different interfaces and numerous other options and accessories
- Available up to 6.8 A
- Suitable for mains supply with 1-115 VAC and 230 VAC (50/60 Hz)
- Feature a 5 V and a 24 V pulse/direction interface or fieldbus interfaces (CANopen, CANopen Motionbus and Modbus or PROFIBUS DP)
- SD3 also available with rotation monitoring (SD3 28 has it on board)
- Safe Torque Off functionality prevents unintended machine starts as per IEC/EN 61800-5-2 for operator safety
- The connection to the positioning electronics is retained even when the Safe Torque Off function is active
- Re-homing is not necessary
- 3.35 in (85 mm) motor flange size
- 2.36 in (60 mm) centring collar diameter
- 08 in (2 mm) centring collar depth
- 4 number of mounting holes
BRS397H360ABA Standards
EN 50347IEC 60072-1|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2453547Part Number #BRS397H360ABAUNSPSC26101205UPC03606485152608
