Part Number # THQB2120
SKU # 2453735
ABB THQB2120 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | THQB2120 |
| SKU #: | 2453735 |
| Amperage Rating: | 20 A |
| Dimensions: | 3.28 in H x 2 in W x 2.38 in D |
| Interrupt Rating: | 10 kA |
| Number of Poles: | 2 |
| Phase: | 1 |
| Temperature Rating (Degrees F): | 40 deg C |
| Trip Type: | Thermal Magnetic |
| Type: | Type THQB Molded Case |
| Wire Size: | 14 to 8 AWG, 12 to 8 AWG |
| Mounting type: | Bolted-On |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 00783164012248 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB THQB2120
Brand: ABB
Part Number: THQB2120
Additional Description: ABB -THQB2120 THQB MCB 20A 10KA 2P 120/240V
Catalog Description: Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q Line used for bolting to the bus connections of load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications. 2120 Amps 20 A
THQB2120 Application
Residential, Commercial, Electrical Distribution and Control ApplicationsTHQB2120 Item Features
- The QB breakers are bolt-on versions of the Q-Line used for bolting to the bus connections of loadcenters and lighting panels
- All Q-Line circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability
- Fixed instantaneous trip function
- Copper aluminum wire
- Internal common trip
THQB2120 Standards
UL File No. E11592|CSA CertifiedSKU #2453735Part Number #THQB2120UNSPSC39121603UPC00783164012248

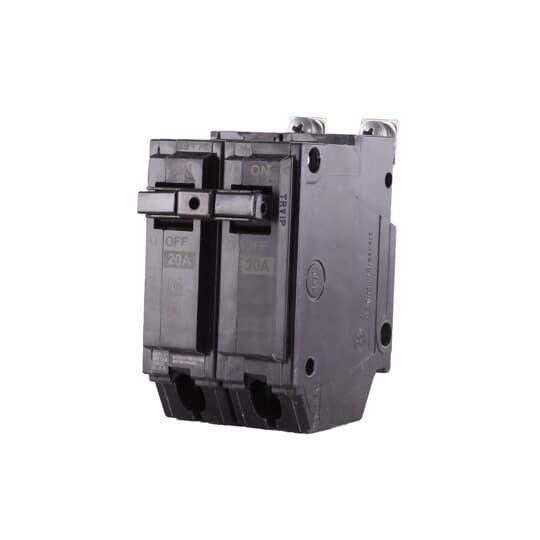

Image provided may only be a representation of final product and may include optional equipment
