Part Number # THQB32030
SKU # 2453738
THQB32030
ABB THQB32030
Part Number # THQB32030
SKU # 2453738
ABB THQB32030 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | THQB32030 |
| SKU #: | 2453738 |
| Amperage Rating: | 30 A |
| Dimensions: | 2-3/8 in L x 3 in W x 3-9/32 in H |
| Frame: | THQB |
| Interrupt Rating: | 10 kA |
| Number of Poles: | 3 |
| Phase: | 1 |
| Temperature Rating (Degrees F): | 60 to 75 deg C |
| Trip Type: | Thermal Magnetic |
| Wire Size: | 14 to 8 AWG |
| Mounting type: | Bolted-On |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 00783164012415 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB THQB32030
Brand: ABB
Part Number: THQB32030
Additional Description: ABB -THQB32030 THQB MCB 30A 10KA 3P 240V
Catalog Description: Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q Line used for bolting to the bus connections of load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications. 2030 Amps 30 A
THQB32030 Application
Commercial, Residential, Thermal Magnetic, Electrical Distribution and Control ApplicationsTHQB32030 Item Features
- Standard continuous current rated
- Fixed long time and fixed instantaneous trip function
- 12 to 8 AWG aluminum, 14 to 8 AWG copper wire range
THQB32030 Standards
UL File No. E11592|HACR RatedSKU #2453738Part Number #THQB32030UNSPSC39121603UPC00783164012415

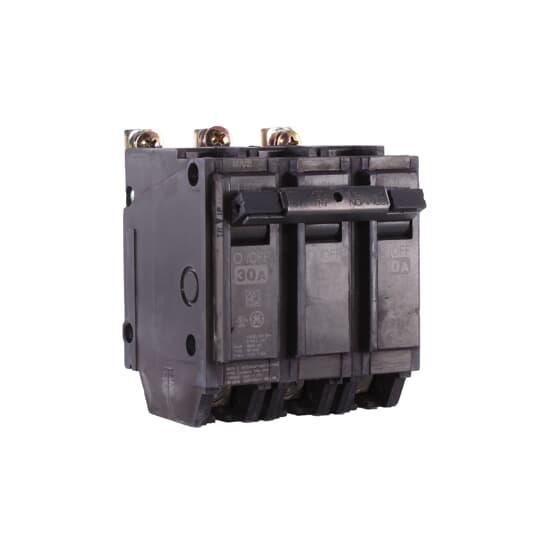

Image provided may only be a representation of final product and may include optional equipment
