Part Number # TED134C5050
SKU # 2453945
ABB TED134C5050 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TED134C5050 |
| SKU #: | 2453945 |
| Actuator Type: | Toggle Handle |
| Amperage Rating: | 50 A |
| Dimensions: | 6-5/16 in H x 4-1/8 in W x 3-3/8 in D |
| Frame: | E150 |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 18 kA |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | 10 to 50 deg C |
| Trip Type: | Thermal Magnetic |
| Type: | Type TED Core E Mid Tier |
| Connection type: | Load Lug |
| Material: | Plastic |
| Mounting type: | Bolted-On |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121601 |
| UPC: | 00783164071818 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1653.25 / Each
Quantity:
ABB TED134C5050
Brand: ABB
Part Number: TED134C5050
Additional Description: ABB -TED134C5050 (N) ASM CIRCUIT BREAKER NON-CANCELABLE, NON-RETURNABLE
Catalog Description: General Electric E-frame lugs and accessories. Industrial breakers. 3 pole 480VAC 50 amps breaker.
TED134C5050 Application
Industrial, Switchboards, Motor Control Centers and Lighting, Power and Customized Control Panelboards ApplicationsTED134C5050 Item Features
- Molded case is molded from high mechanical and high dielectric strength engineered plastic
- Trip indication is shown by handle position midway between ON and OFF, to reset the trip mechanism, move the handle to extreme OFF, then to ON position
- Quick make, quick break, trip free mechanism minimizes arcing during breaker operation, contacts cannot be teased into position
- Trip free mechanism is independent of manual handle control, the breaker trips under short circuit or overload, even though the operating handle is held in ON position
- VERIFIER "Twist-to-Trip" and Push-to-Trip mechanically simulates over current tripping through actuation of linkages not operated by the ON-OFF handle
- Common trip bar assures instant disconnect of all conductors when an overload or short circuit occurs on any one conductor in the circuit or an accessory trip device operates
- Silver alloy contacts combine the conductive properties of silver with other elements for clean, positive electrical contacting, pitting and burning are minimized for longer contact life
- Arc chutes of heat absorbing, insulating material and metal grid plates quickly extinguish arcs
- UL Listed lugs for copper or aluminum cable, at full frame rating, easy access and simple, straight-in wiring
- 18 kA at 240 VAC, 10 kA at 500 VDC interrupt rating
TED134C5050 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL/cUL File No. E11592|CSA File No. LR57114|HACR RatedSKU #2453945Part Number #TED134C5050UNSPSC39121601UPC00783164071818

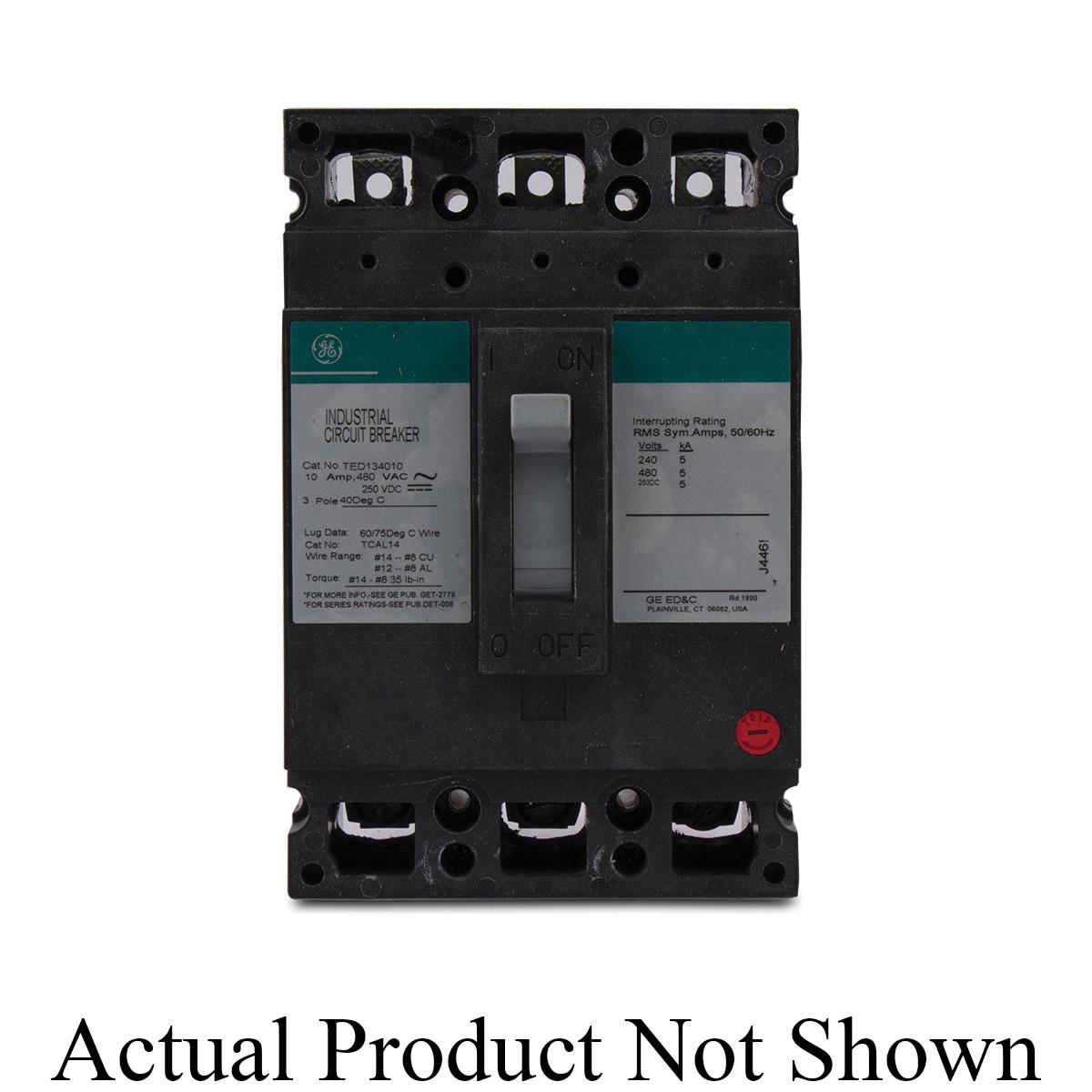

Image provided may only be a representation of final product and may include optional equipment
