Part Number # 3RT14566SF363PA0
SKU # 2454244
Image Disclaimers Message
Brand: Siemens
3RT14566SF363PA0

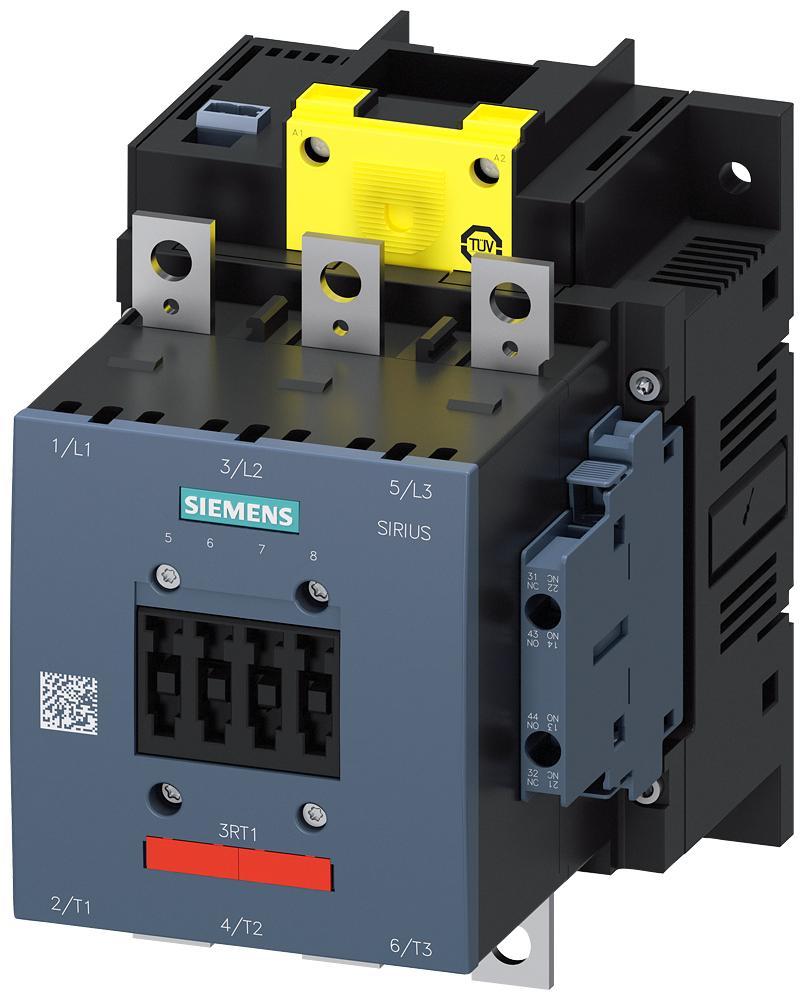

Siemens 3RT14566SF363PA0
Part Number # 3RT14566SF363PA0
SKU # 2454244
$1130.01 / Each
Typical price:$2397.00 / Each
Siemens 3RT14566SF363PA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT14566SF363PA0 |
| SKU #: | 2454244 |
| Coil Power Rating: | 280 VA Pickup, 4.4 VA Holding, 320 W Closing, 2.8 W Holding |
| Coil Voltage: | 96 to 127 V AC/DC, 96 to 127 VAC/VDC |
| Contact Configuration: | 2NO-2NC |
| Dimensions: | 172 mm H x 120 mm W x 170 mm D |
| Enclosure Type: | IP00/20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 4 |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT14 |
| Size: | S6 |
| Terminal Type: | Screw |
| Type: | 1-Phase |
| Connection type: | Rail |
| Country of origin: | DE |
| Mounting type: | Side by Side/Surface |
| Power factor: | 0.8 Closing, 0.5 Holding |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00195125049352 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1130.01 / Each
Typical price:$2397.00 / Each
Quantity:
- Siemens SIRIUS Power Contactor With (1) Varistor, (2) Permanently Laterally Mounted Auxiliary Switches, 1-Phase, Series: 3RT14, 96 to 127 VAC/DC Coil, 275 A Maximum Load Current, 280 VA Pickup, 4.4 VA Holding, 320 W Closing, 2.8 W Holding Coil, 3 Pole, 50/60 Hz Frequency, Auxiliary Contact, 2NO-2NC Contact Configuration, 4 Auxiliary Contacts, Power Factor: 0.8 Closing, 0.5 Holding, Rail Connection, S6 Size, Screw Terminal, IP00/20 Enclosure, 10,000,000 cycles Operating Cycles,-25 to 60 deg C Operating, Side by Side/Surface Mounting, 172 mm H x 120 mm W x 170 mm D Dimensions
3RT14566SF363PA0 Item Features
- Solid state operating mechanism with fail safe control input for safety related applications to SIL CL 3
- 24 VDC control signal input, e.g. for control via the fail safe output module of a controller (F-PLC) or safety relay
- Main conductors - busbar connections is a connection kit with screws, spring washers and nuts is enclosed
- 280 VA pickup, 4.4 VA holding at 50 Hz, 320 W closing, 2.8 W holding power at VDC
3RT14566SF363PA0 Standards
CCC Certifiied|CE Certified|CSA Certified|EAC Certified|IEC/EN 60947-1, 60947-4-1, 60947-5-1|RCM Approved|REACH Article 33|UL Listed|WEEE 2012/19/EUSKU #2454244Part Number #3RT14566SF363PA0UNSPSC39121529UPC00195125049352
