Part Number # C2E1500MQMJ
SKU # 2455122
C2E1500MQMJ
Hammond Power Solutions C2E1500MQMJ
Part Number # C2E1500MQMJ
SKU # 2455122
$365.08 / Each
Typical price:$460.00 / Each
Hammond Power Solutions C2E1500MQMJ Key Features
| Brand: | Hammond Power Solutions |
|---|---|
| Part Number # : | C2E1500MQMJ |
| SKU #: | 2455122 |
| Dimensions: | 6 in H x 6.6 in W x 9.2 in D |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 50/60 Hz |
| Insulation: | 130 deg C |
| Maximum Amperage Rating: | 12.50/6.25 A |
| Phase: | 1 ph |
| Primary Voltage: | 240 x 480 V |
| Secondary Voltage: | 120 x 240 V |
| Temperature Rating (Degrees F): | 80 deg C |
| Type: | General Purpose |
| Connection type: | Terminal Block |
| Housing material: | Copper |
| Manufacturer Name: | Hammond Power Solutions |
| UNSPSC: | 39121026 |
| UPC: | 00803423213299 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$365.08 / Each
Typical price:$460.00 / Each
Quantity:
- HPS, C2E1500MQMJ, Transformer, General Purpose, 240 x 480 V Primary, 120 x 240 V Secondary, 1500 VA Power, 50/60 Hz Frequency, 1 ph, 12.50/6.25 A Maximum, Terminal Block Connection, 130 deg C Insulation, NEMA 1 Enclosure, 80 deg C, Copper Housing Material, 6 in H x 6.6 in W x 9.2 in D Dimensions
C2E1500MQMJ Application
For light-duty industrial and commercial applicationsC2E1500MQMJ Item Features
- High inrush and continuous operation design handles relays, solenoids, contactors, and timers
- Copper-wound coils, durable insulation, and silicon steel laminations deliver stable, consistent voltage and long life
- Welded core and base construction ensure mechanical strength and easy installation
- Vacuum-impregnated coils improve thermal performance and protection
SKU #2455122Part Number #C2E1500MQMJUNSPSC39121026UPC00803423213299

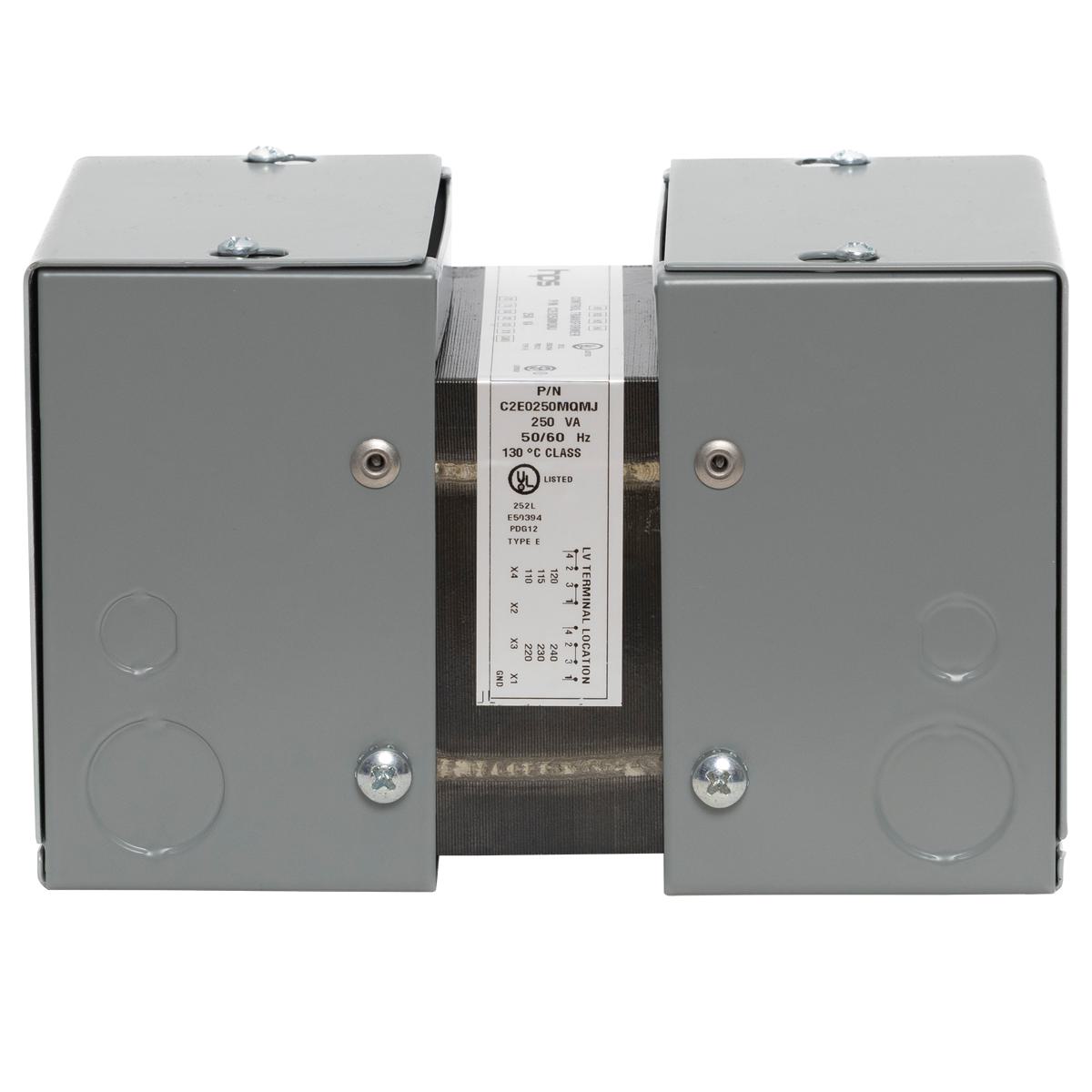

Image provided may only be a representation of final product and may include optional equipment
