Part Number # C2M1000MBMH
SKU # 2455128
C2M1000MBMH
Hammond Power Solutions C2M1000MBMH
Part Number # C2M1000MBMH
SKU # 2455128
$446.03 / Each
Typical price:$562.00 / Each
Hammond Power Solutions C2M1000MBMH Key Features
| Brand: | Hammond Power Solutions |
|---|---|
| Part Number # : | C2M1000MBMH |
| SKU #: | 2455128 |
| Dimensions: | 4.76 in H x 5.25 in W x 7.96 in D |
| Enclosure Type: | Molded |
| Maximum Amperage Rating: | 8.7 A |
| Primary Voltage: | 230/460/575 V |
| Secondary Voltage: | 95/115 V |
| Connection type: | Terminal Block |
| Manufacturer Name: | Hammond Power Solutions |
| UNSPSC: | 39121026 |
| UPC: | 00803423215781 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$446.03 / Each
Typical price:$562.00 / Each
Quantity:
- HPS, C2M1000MBMH, Transformer, 230/460/575 V Primary, 95/115 V Secondary, 1000 VA Power, 50/60 Hz Frequency, 1 ph, 8.7 A Maximum, Terminal Block Connection, Panel Mounting, 130 deg C Insulation, Molded Enclosure, 80 deg C, Copper Housing Material, 4.76 in H x 5.25 in W x 7.96 in D Dimensions
C2M1000MBMH Application
For high inrush applications the control transformersC2M1000MBMH Item Features
- High inrush and continuous operation design handles relays, solenoids, contactors, and timers
- Copper-wound coils, durable insulation, and silicon steel laminations deliver stable, consistent voltage and long life
- Welded core and base construction ensure mechanical strength and easy installation
- Vacuum-impregnated coils improve thermal performance and protection
SKU #2455128Part Number #C2M1000MBMHUNSPSC39121026UPC00803423215781

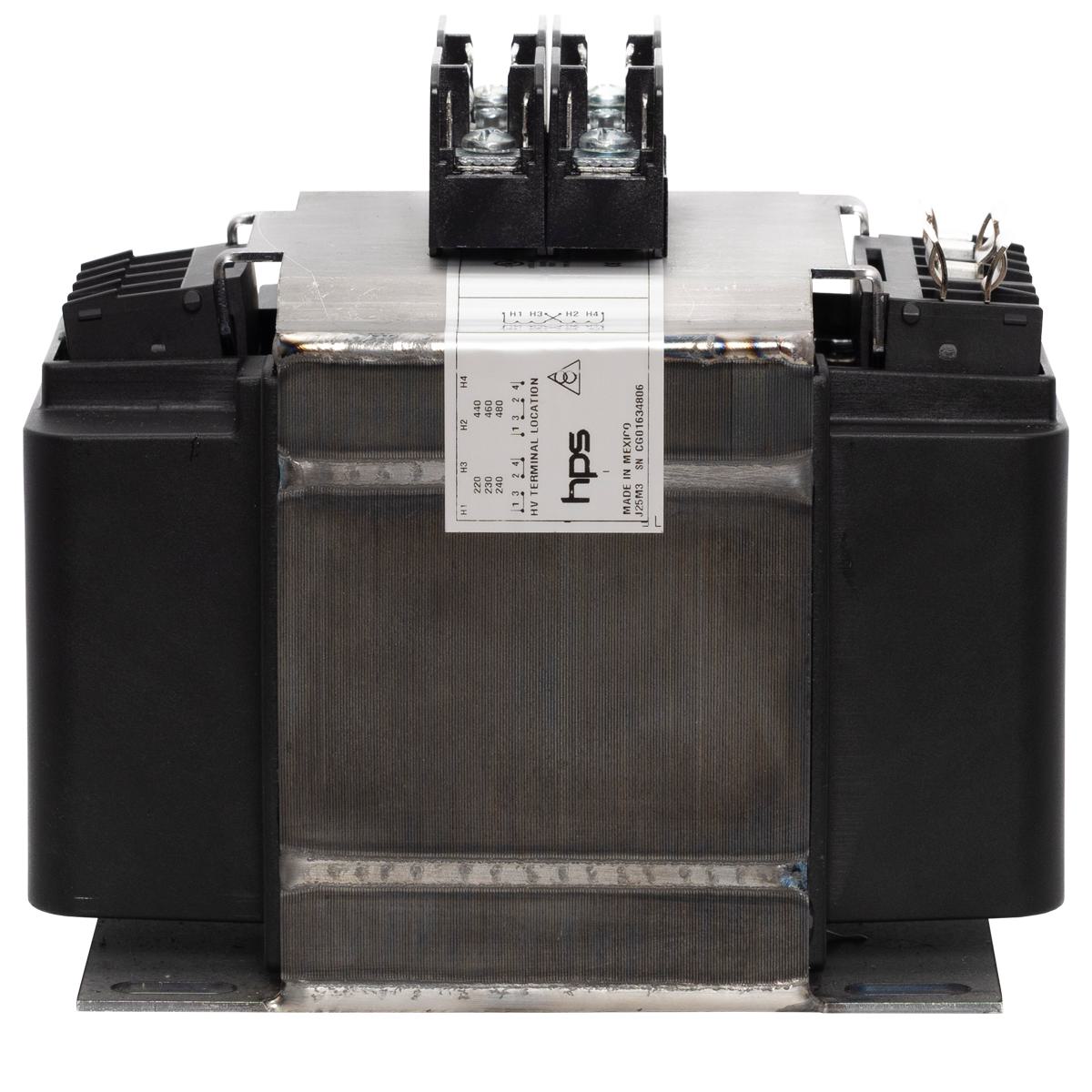

Image provided may only be a representation of final product and may include optional equipment
