Part Number # 9T58K1807
SKU # 2455180
ABB 9T58K1807 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K1807 |
| SKU #: | 2455180 |
| Dimensions: | 3.81 in W x 3.28 in H |
| Enclosure Type: | Open |
| Frequency Rating: | 60 Hz |
| Insulation: | IS-12 |
| Phase: | 1 |
| Primary Voltage: | 240/480 V AC, 240/480 VAC |
| Secondary Voltage: | 120/240 V AC, 120/240 VAC |
| Series: | 9T58K |
| Temperature Rating (Degrees F): | 40 deg C |
| Type: | Core/Coil Fully Encapsulated |
| Circuit type: | 8200 Frame |
| Connection type: | Pressure Plate |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173123386 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 9T58K1807
Brand: ABB
Part Number: 9T58K1807
Additional Description: ABB -9T58K1807 (N) 1C,0.25KVA,240X480-120/240,80C,CLO, IP NON-CANCELABLE, NON-RETURNABLE
Catalog Description: ABB's General purpose encapsulated open core, and coil transformer (also known as Type IP Control Power transformers) are ideally suited for industrial and light-duty loads, HVAC applications, signal and alarm systems, industrial control panels, lighting, and circuit isolation. The optional fuse block adapter kits enable input and output flexibility. Type IP Control Power transformers are an economical alternative to high in-rush/machine tool transformers.
9T58K1807 Application
For machine tools are used to provide voltage to control devices in applications where regulation and minimum space are important, electrical distribution and control applications9T58K1807 Item Features
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
- Fully encapsulated coil is impervious to moisture
- Terminal board is anchored in the epoxy for greater reliability
- Wide variety of fusing options
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Flexible design allows input or output voltage to match any application
- Copper windings
- Pressure plate terminals ensure secure connections
- 80 deg C temperature rise
- K1-factor rated transformer
- 180 deg C temperature class
- Terminal board connection
- Standard sound
- Copper coil
9T58K1807 Standards
CE Marking|CSA 3272|cUL 5085 File No. E2739|GSA Compliant|UL ListedSKU #2455180Part Number #9T58K1807UNSPSC39121026UPC00783173123386

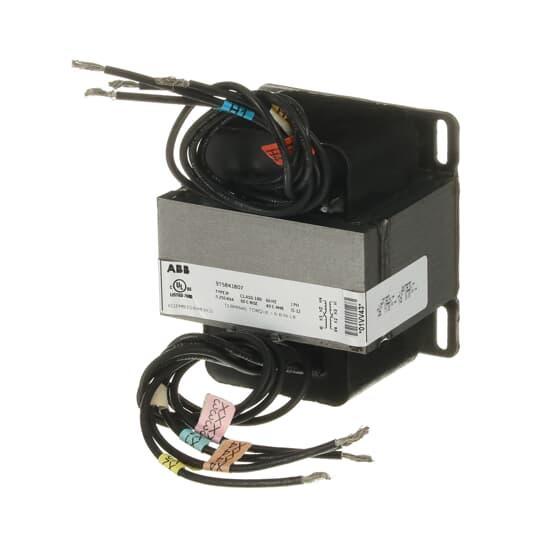

Image provided may only be a representation of final product and may include optional equipment
