Part Number # 3RW55271HF14
SKU # 2455929
Image Disclaimers Message
3RW55271HF14

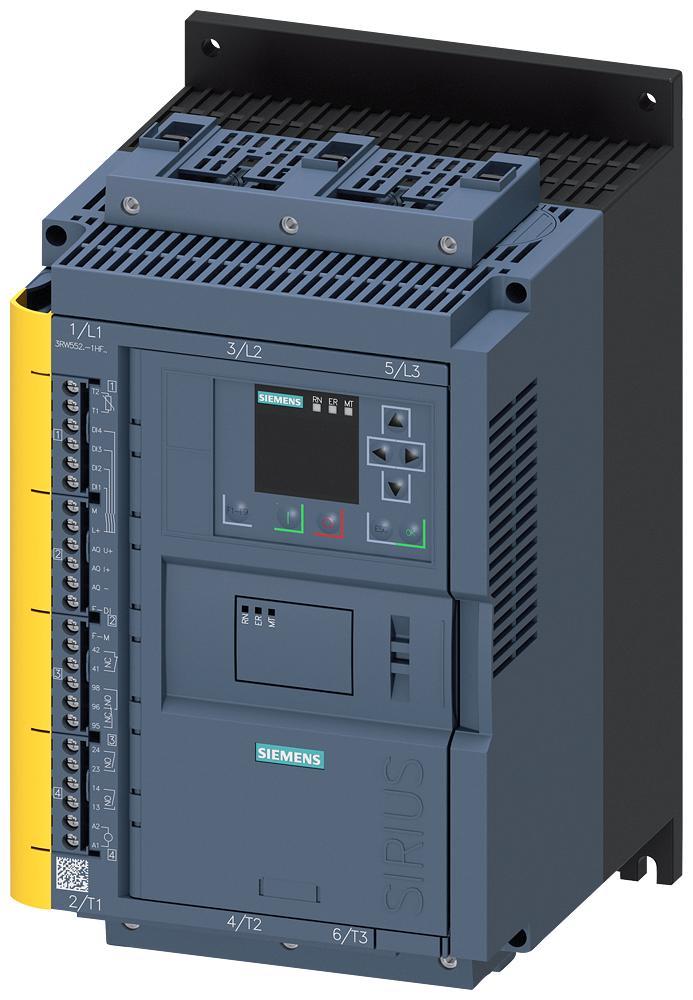

Siemens 3RW55271HF14
Part Number # 3RW55271HF14
SKU # 2455929
$4354.07 / Each
Typical price:$6773.00 / Each
Siemens 3RW55271HF14 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RW55271HF14 |
| SKU #: | 2455929 |
| Amperage Rating: | 93 A |
| Auxiliary Contact Rating: | B300/R300 |
| Coil Voltage: | 110 to 250 V AC |
| Dimensions: | 306 mm H x 185 mm W x 203 mm D |
| Enclosure Type: | IP00 |
| Frequency Rating: | 50/60 Hz |
| Motor Power: | 25 hp, 30 hp, 60 hp |
| Operating Temperature: | -25 to 60 deg C |
| Phase: | 3 |
| Reset Type: | Automatic/Manual/Remote |
| Series: | 3RW55 |
| Type: | High Performance |
| Wattage: | 22 kW, 45 kW |
| Connection type: | Screw Terminal |
| Country of origin: | CZ |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00195125037786 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4354.07 / Each
Typical price:$6773.00 / Each
Quantity:
- Siemens SIRIUS Failsafe Soft Starter, High Performance, Series: 3RW55, 200 to 480 V AC, 93 A, 50/60 Hz Frequency, 22 kW, 45 kW Wattage, 25 hp, 30 hp, 60 hp Motor, 110 to 250 VAC Coil, Automatic/Manual/Remote Reset, 3 ph, Screw Terminal Connection, B300/R300 Auxiliary, IP00 Enclosure, Starting Modes: Ramp-Up/Ramp-Down,-25 to 60 deg C Operating, 306 mm H x 185 mm W x 203 mm D Dimensions
3RW55271HF14 Item Features
- Plug-in communication modules for PROFINET, PROFIBUS, Ethernet/IP and Modbus
- Removable HMI module with color display, local interface and slot for a micro SD memory card
- Extended protection functions
- Hybrid switching devices for minimum power loss and three-phase motor control for optimum/symmetrical motor control
- Pump stop for reduced mechanical loading and optimum pump stop control
3RW55271HF14 Standards
ABS Approved|ATEX 2014/34/EU: BVS 18 ATEX F 003 X|CCC Certifiied|CE Certified|CSA Certified|DNV GL Approved|EAC Certified|IECEx Certified|Lloyds Register|PRS Certified|RCM Approved|REACH Article 33|UL Listed|WEEE 2012/19/EUSKU #2455929Part Number #3RW55271HF14UNSPSC39121521UPC00195125037786
