Part Number # 3RA84224EE10
SKU # 2456686
3RA84224EE10
Siemens 3RA84224EE10
Part Number # 3RA84224EE10
SKU # 2456686
$712.29 / Each
Typical price:$831.00 / Each
Siemens 3RA84224EE10 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RA84224EE10 |
| SKU #: | 2456686 |
| Amperage Rating: | 32 A |
| Dimensions: | 243 mm H x 45 mm W x 150 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
| Operating Temperature: | -20 to 60 deg C |
| Overload Relay: | Solid-State |
| Phase: | 3 ph |
| Setting: | 3.5 to 32 A |
| Type: | Direct |
| Connection type: | Screw |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00195125538924 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$712.29 / Each
Typical price:$831.00 / Each
Quantity:
Siemens 3RA84224EE10
Brand: Siemens
Part Number: 3RA84224EE10
Additional Description: SIEM-3RA84224EE10 ILF DS 3.5-32A HF (S0)

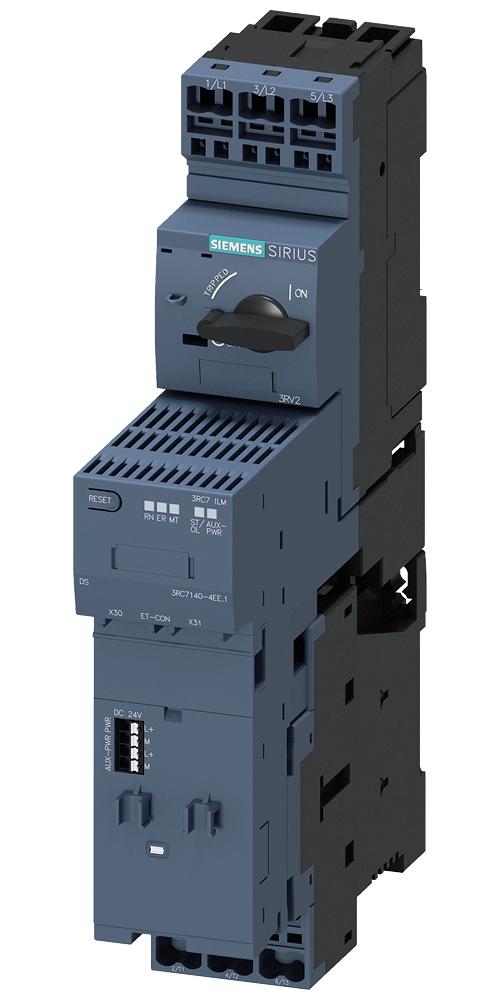

Catalog Description: intelligent load feeder direct starter high feature 3.5-32 A up to 690 V AC type of coordination 2 frame size S0 for ET 200SP system consisting of 3RC7140-4EE11, 3RV2321-4EC20, 3RT2027-2BB40
3RA84224EE10 Standards
RoHS Compliant Since: 06/21/2024|AL : N / ECCN : N|WEEE (2012/19/EU)SKU #2456686Part Number #3RA84224EE10UNSPSC39121521UPC00195125538924
Image provided may only be a representation of final product and may include optional equipment
